Polaris•Schematic assembly

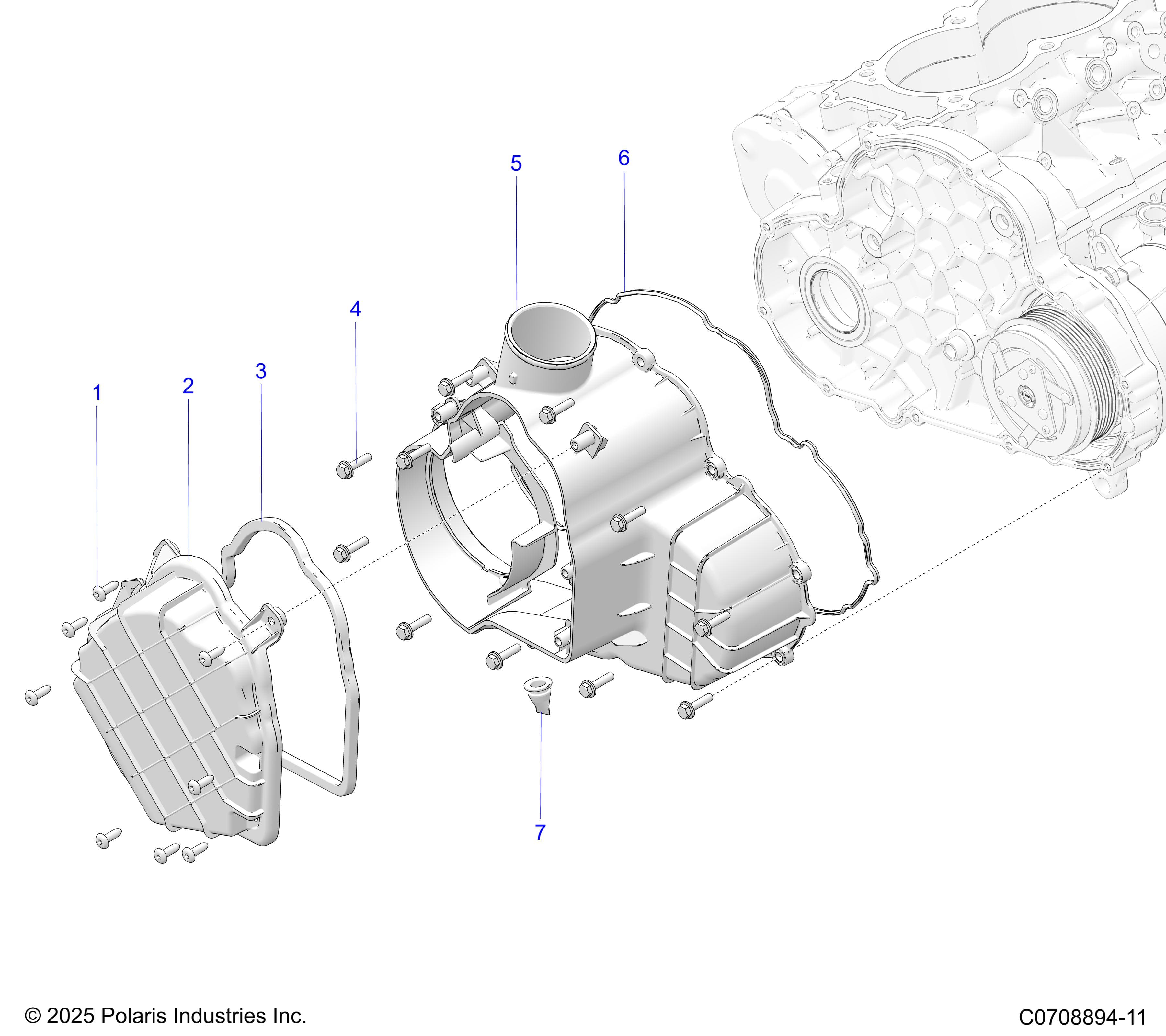

ENGINE, COVERS, ALTERNATOR AND COMPRESSOR
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241784
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 8 | Price TBD | Out of stock | |
| 2 | 5458425 | COVER-ALT,OUTER | 1 | Price TBD | Out of stock | |
| 3 | 5526446 | SEAL-OUTER,ALT,COVER | 1 | Price TBD | Out of stock | |
| 4 | 7518533 | SCR-HXFL-M6X1.0X25 8.8 RIE | 11 | Price TBD | Out of stock | |
| 5 | 2638429 | ASM-COVER,ALT,INNER [INCLUDES 5 & 7] | 1 | Price TBD | Out of stock | |
| 5 | 5458273 | COVER-ALT,INNER | 0 | Price TBD | Out of stock | |
| 6 | 5417846 | SEAL,HVAC COVER,INNER,TABBED | 1 | Price TBD | Out of stock | |
| 7 | 5414472 | PLUG-DRAIN | 1 | Price TBD | Out of stock |
