Polaris•Schematic assembly
ENGINE, ALTERNATOR AND COMPRESSOR
Product Description

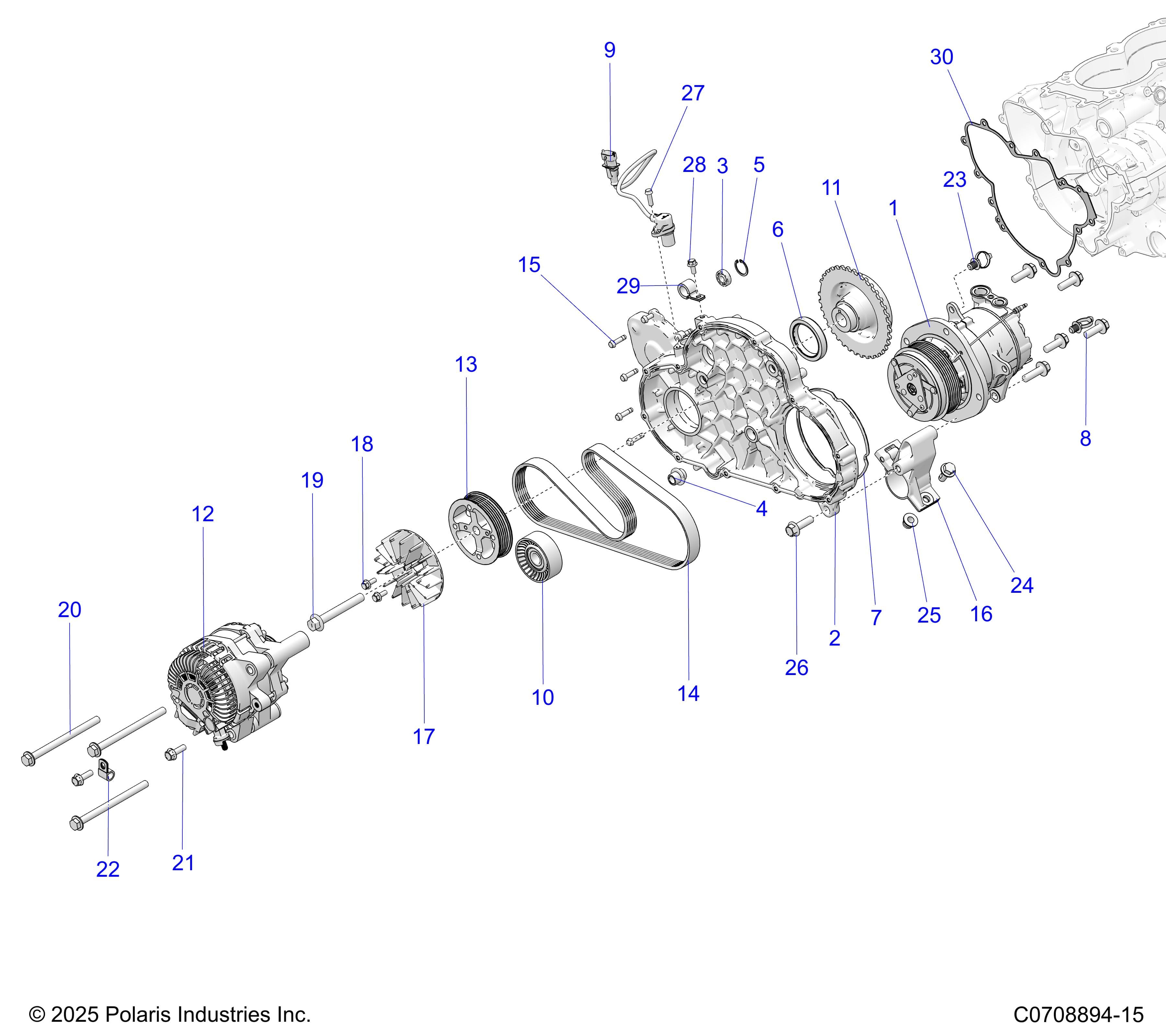

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241781
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 30 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3023970 | COMPRESSOR-HVAC,112MM | 1 | Price TBD | Out of stock | |
| 2 | 3024212 | ASM-COVER,HVAC MOUNT [INCLUDES 3-5] | 1 | Price TBD | Out of stock | |
| 3 | 3514717 | BEARING-BALL,9X24X7 | 1 | Price TBD | Out of stock | |
| 4 | 5140080 | WASHER,COVER | 1 | Price TBD | Out of stock | |
| 5 | 7710654 | RING-SNAP,DIN472,24X1.2MM | 1 | Price TBD | Out of stock | |
| 6 | 3610377 | SEAL-FLANGE,LUBE VITON | 1 | Price TBD | Out of stock | |
| 7 | 5415805 | GASKET-HVAC COMPRESSOR | 1 | Price TBD | Out of stock | |
| 8 | 7519764 | SCR-HXFL-M10X1.5X30 8.8 ZOD | 4 | Price TBD | Out of stock | |
| 9 | 2411719 | SENSOR, CRANK POSITION | 1 | Price TBD | Out of stock | |
| 10 | 3023107 | PULLEY-FLAT IDLER,70.9MM | 1 | Price TBD | Out of stock | |
| 11 | 3024063 | ADAPTER HUB | 1 | Price TBD | Out of stock | |
| 12 | 4019209 | ALTERNATOR-140A,HVAC | 1 | Price TBD | Out of stock | |
| 13 | 5144824 | PULLEY-6RIB,100,0MM DRIVE | 1 | Price TBD | Out of stock | |
| 14 | 5418705 | BELT-HVAC DRIVE | 1 | Price TBD | Out of stock | |
| 15 | 7519297 | SCREW-HXFLG,M6X1.0X25,10.9 | 13 | Price TBD | Out of stock | |
| 16 | 3023168 | ASM,COMPRESSOR SUPPORT | 1 | Price TBD | Out of stock | |
| 17 | 5144171 | IMPELLER-FAN,CRANK | 1 | Price TBD | Out of stock | |
| 18 | 7519236 | SCR-HXFL-M6X1.0X16 8.8 ZYL NYL | 2 | Price TBD | Out of stock | |
| 19 | 7528260 | SCR-HXFL-M12X1.25X90 12.9 ZFB | 1 | Price TBD | Out of stock | |
| 20 | 7519041 | SCR-HXFL-M10X1.5X140 8.8 ZOD | 3 | Price TBD | Out of stock | |
| 21 | 7518514 | BOLT-M8X1.25X25,HXFLG-OLIVE D | 2 | Price TBD | Out of stock | |
| 22 | 7081722 | CLIP-P,7/16X.343 HOLE | 1 | Price TBD | Out of stock | |
| 23 | 7082414 | CLIP-FIR TREE,9.7-10.0MM HOLE | 2 | Price TBD | Out of stock | |
| 24 | 7518760 | SCR-HXFL-M10X1.25X25 8.8 Z NY | 1 | Price TBD | Out of stock | |
| 25 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 1 | Price TBD | Out of stock | |
| 26 | 7519782 | SCR-HXFL-M10X1.5X35 10.9 ZOD D | 2 | Price TBD | Out of stock | |
| 27 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 1 | Price TBD | Out of stock | |
| 28 | 7521131 | SCR-HXFL-M6X1.0X14 10.9 ZOPD30 | 1 | Price TBD | Out of stock | |
| 29 | 7082877 | CLIP-P,5/8X281 HOLE,HT,FULL | 1 | Price TBD | Out of stock | |
| 30 | 5814160 | GASKET, COVER, IGNITION | 1 | Price TBD | Out of stock |
