Schematic diagram
Polaris•Schematic assembly

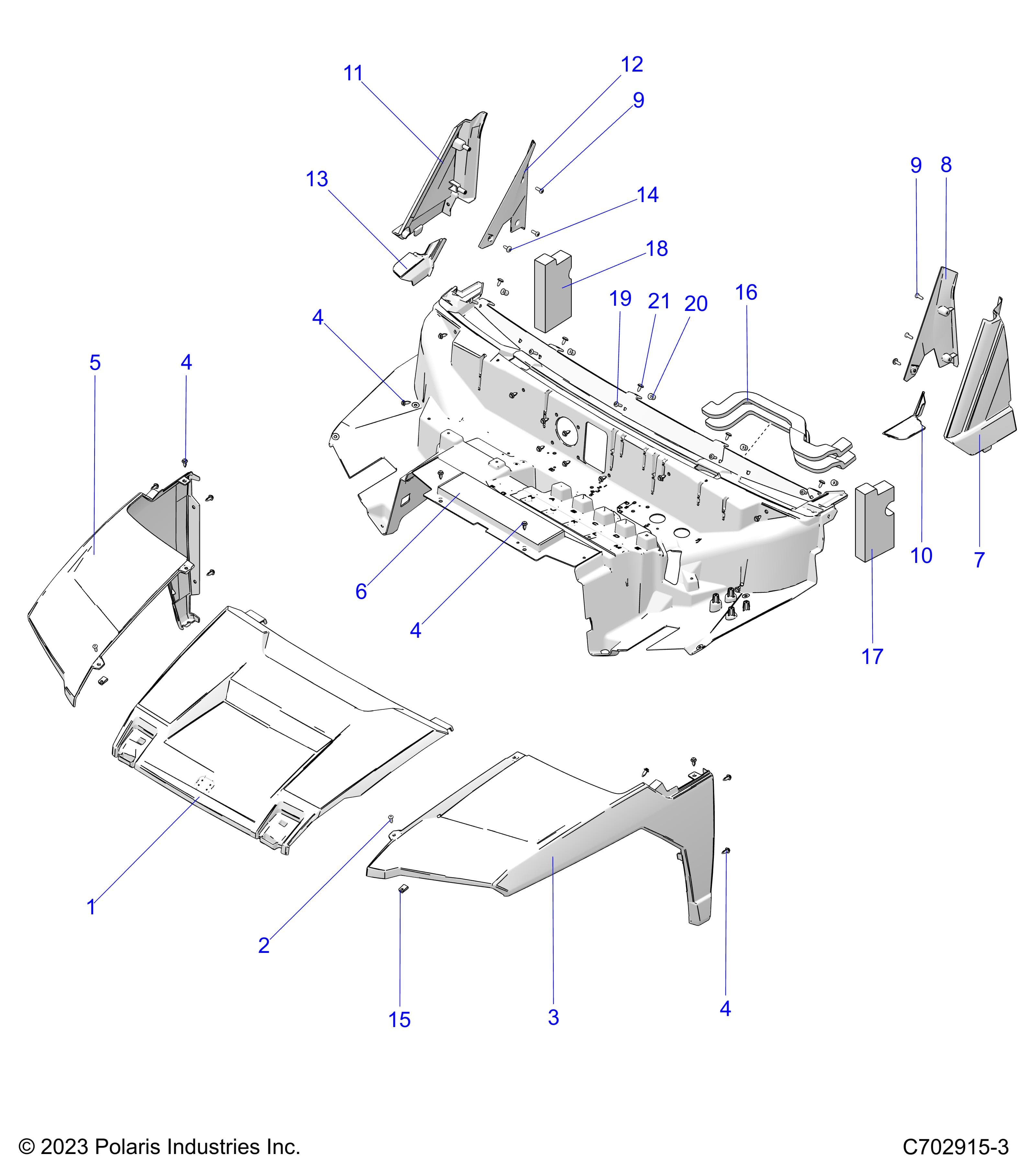

BODY, HOOD, LINER, FRONT FENDERS, PILLARS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241762
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5457223-799 | HOOD-CENTER,PNT,PERFORM RED [AS] [BS] [PERFORMANCE RED] | 1 | $584.99 | In stock | |
| 1 | 5457223-800 | HOOD-CENTER,PNT,ONYX BLK [AJ] [BJ] [ONYX BLACK] | 1 | $589.99 | In stock | |
| 1 | 5457223-A29 | HOOD-CENTER,PNT,H.W.T.GRAY [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $589.99 | In stock | |
| 2 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 3 | 5459196-799 | FNDR-FRT,LH,RTR,PNT,PERFRM RED [AS] [BS] [PERFORMANCE RED] | 1 | $699.99 | In stock | |
| 3 | 5459196-894 | FNDR-FRT,LH,RTR,PNT,M.SPR.GRPH [AJ] [BJ] [SUPER GRAPHITE] | 1 | $739.99 | In stock | |
| 3 | 5459196-A29 | FENDER-FRT,LH,RTR,PNT,HWT.GR [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $739.99 | In stock | |
| 4 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 0 | Price TBD | Out of stock | |
| 5 | 5457221-799 | FENDER-FRONT,RH,PNT,PERFORM RD [AS] [BS] [PERFORMANCE RED] | 1 | $739.99 | In stock | |
| 5 | 5457221-894 | FENDER-FRONT,RH,PNT,M.S.GRAPHT [AJ] [BJ] [SUPER GRAPHITE] | 1 | $739.99 | In stock | |
| 5 | 5457221-A29 | FENDER-FRONT,RH,PNT,H.W.T.GRAY [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $739.99 | In stock | |
| 6 | 5465045-070 | LINER-UNDERHOOD,BLK | 1 | $329.99 | In stock | |
| 7 | 5457231-070 | COVER,A-PILLAR,LH,BLK | 1 | $69.99 | In stock | |
| 8 | 5459527-070 | COVER-A-PILLAR,INNER,LH,BLK | 1 | $18.99 | In stock | |
| 9 | 7519731 | SCR-TXPH-#14 X .75 HI-LO RIE | 4 | Price TBD | Out of stock | |
| 10 | 5459447-070 | SEAL-A PILLAR,LH,BLK | 1 | $13.99 | In stock | |
| 11 | 5457232-070 | COVER,A-PILLAR,RH,BLK | 1 | $69.99 | In stock | |
| 12 | 5459528-070 | COVER-A-PILLAR,INNER,RH,BLK | 1 | $18.99 | In stock | |
| 13 | 5459448-070 | SEAL-A PILLAR,RH,BLK | 1 | $13.99 | In stock | |
| 14 | 7520311 | SCR-TXTH-M8X1.25X15 8.8 ZODP30 | 2 | $3.99 | In stock | |
| 15 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | Price TBD | Out of stock | |
| 16 | 5815386 | FOAM-LINER,HOOD | 2 | $5.99 | Out of stock Est. Aug 5, 2026 | |
| 17 | 5815935 | FOAM-A PILLAR,INNER,FRT,LH | 1 | $14.99 | In stock | |
| 18 | 5815936 | FOAM-A PILLAR,INNER,FRT,RH | 1 | $14.99 | Out of stock Est. Oct 5, 2026 | |
| 19 | 7520239 | SCR-TXTH-M6X1.0X25 8.8 RIE | 5 | $4.99 | In stock | |
| 20 | 7547772 | WELLNUT-M6X1.0 | 5 | Price TBD | Out of stock | |
| 21 | 7518936 | SCR-M6X1X16 TR/TX-M | 5 | Price TBD | Out of stock |
