Polaris•Schematic assembly

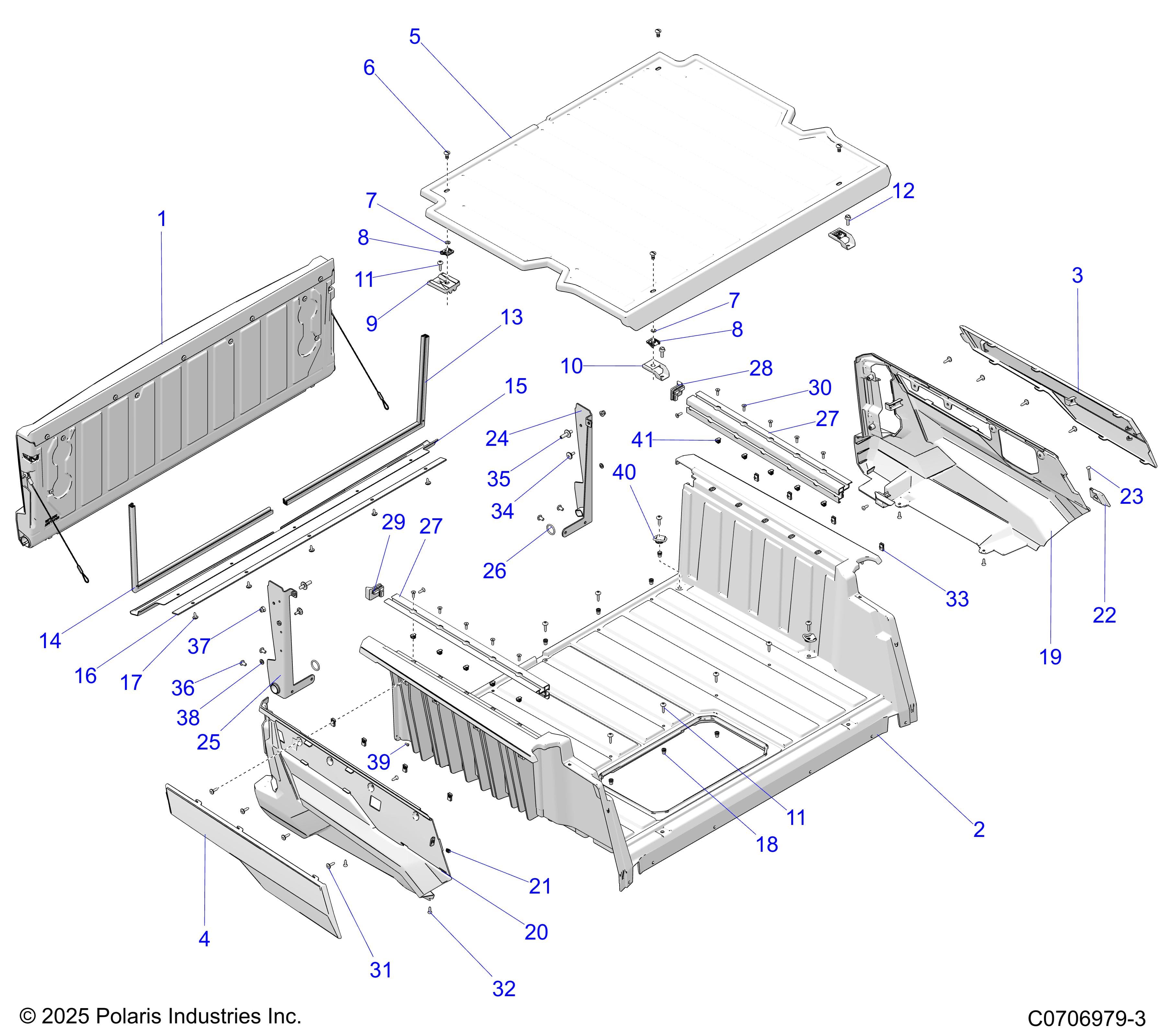

BODY, BOX ASSEMBLY
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 241677
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 18 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | ------- | ASM-TAILGATE,ADV [SEE BODY BOX, TAILGATE ASM.] | 1 | Price TBD | Out of stock | |
| 2 | 2212039 | K-ASM,BOX,CARGO,XPED,ADV,MP [INCLUDES WARNING DECALS] | 1 | $1,549.99 | In stock | |
| 3 | 5465129-894 | PANEL-BOX,TRIM,LH,PNT,M.S.GRPH [AJ] [BJ] [SUPER GRAPHITE] | 1 | $184.99 | In stock | |
| 3 | 5465129-799 | PANEL-BOX,TRIM,LH,PNT,PER RED [AS] [BS] [PERFORMANCE RED] | 1 | $184.99 | In stock | |
| 3 | 5465129-A29 | PNL-BOX,TRM,LH,PNT,H.W.T.GRAY [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $184.99 | Out of stock Est. Aug 31, 2026 | |
| 4 | 5465130-894 | PANEL-BOX,TRIM,RH,PNT,M.S.GRPH [AJ] [BJ] [SUPER GRAPHITE] | 1 | $184.99 | In stock | |
| 4 | 5465130-799 | PANEL-BOX,TRIM,RH,PNT,PER RED [AS] [BS] [PERFORMANCE RED] | 1 | $184.99 | In stock | |
| 4 | 5465130-A29 | PNL-BOX,TRM,RH,PNT,H.W.T.GRAY [AH] [BH] [HIDDEN WARM TONE GRAY] | 1 | $184.99 | Out of stock Est. Aug 6, 2026 | |
| 5 | 5418421 | RUBBER-BED,MAT [TO 7/28/2025] | 1 | Price TBD | Out of stock | |
| 5 | 5419230 | RUBBER-BED,MAT [FROM 7/28/2025] | 1 | $204.99 | Out of stock | |
| 6 | 7663091 | STUD-1/4 TURN,8MM | 4 | $4.99 | In stock | |
| 7 | 7718452 | CLIP-RETAINER,1/4 TURN,8MM | 4 | $14.99 | In stock | |
| 8 | 7718451 | CLIP-1/4 TURN,8MM | 4 | $4.99 | In stock | |
| 9 | 5465388 | BRKT-BED,MAT,REAR | 2 | $10.99 | In stock | |
| 10 | 5465389 | BRKT-BED,MAT,FRONT | 2 | $10.99 | In stock | |
| 11 | 7520748 | SCR-TXTH-M6X1.0X30 T40 ZPB | 14 | $4.99 | In stock | |
| 12 | 7521332-25 | SCR-HXFL-M8X1.25X25 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 13 | 5526501 | SEAL-TAILGATE,LH | 1 | $99.99 | In stock | |
| 14 | 5526502 | SEAL-TAILGATE,RH | 1 | $99.99 | In stock | |
| 15 | 5274724-458 | TRAY-DRIP,BLK | 1 | $119.99 | In stock | |
| 16 | 5526506 | SEAL,DRIP-TRAY | 1 | $11.99 | In stock | |
| 17 | 7518936 | SCR-M6X1X16 TR/TX-M | 5 | Price TBD | Out of stock | |
| 18 | 7547790 | NUT-RIVNUT,HEX,M6X1.00 | 14 | Price TBD | Out of stock | |
| 19 | 2639948-070 | ASM-PANEL,BOX,OUTER,LH,BLK | 1 | $204.99 | In stock | |
| 20 | 2639949-070 | ASM-PANEL,BOX,OUTER,RH,BLK | 1 | $204.99 | In stock | |
| 21 | 5456313 | CLIP-TRIM, PLASTIC, WHITE | 1 | Price TBD | Out of stock | |
| 22 | 5457251-070 | PANEL-BOX,LATCH,LH,BLK | 1 | $8.99 | In stock | |
| 23 | 5451236 | PIN-HINGE,DIN BOX | 1 | $8.99 | In stock | |
| 24 | 1028843-458 | WELD-TAILGATE SUPPORT,LH,BLK | 1 | $64.99 | In stock | |
| 25 | 1028844-458 | WELD-TAILGATE SUPPORT,RH,BLK | 1 | $64.99 | Out of stock Est. Aug 13, 2026 | |
| 26 | 5418014 | O-RING,28.17X3.53,VITON,60A | 2 | Price TBD | Out of stock | |
| 27 | 5144443 | RAIL-BOX,MACH | 2 | $164.99 | In stock | |
| 28 | 5418788 | BUMPER-BOX,TAILGATE,LH | 1 | $5.99 | In stock | |
| 29 | 5418789 | BUMPER-BOX,TAILGATE,RH | 1 | $5.99 | In stock | |
| 30 | 7528307 | SCR-M6X20MM,HXSOC FHCS,BG | 12 | $0.99 | In stock | |
| 31 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 8 | Price TBD | Out of stock | |
| 32 | 7519045 | SCR-TX TRUSS-#14X3/4, HI/LO ZBK | 6 | Price TBD | Out of stock | |
| 33 | 7081305 | CLIP-U SPEED NUT | 8 | Price TBD | Out of stock | |
| 34 | 7520730 | SCR-TXTH-M6X1.0X20 ZPB SHDR | 2 | Price TBD | Out of stock | |
| 35 | 7663084 | PIN-STRIKER,M8 | 2 | $9.99 | In stock | |
| 36 | 7520311 | SCR-TXTH-M8X1.25X15 8.8 ZODP30 | 4 | $3.99 | In stock | |
| 37 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 38 | 7557234 | WSHR-FLAT-M8X1.6 ZTB | 2 | Price TBD | Out of stock | |
| 39 | 7518256 | SCR-#8-32X.375",TORX,TRI-S | 2 | $2.99 | In stock | |
| 40 | 7081195 | RING,TIEDOWN 700087 | 4 | Price TBD | Out of stock | |
| 41 | 7548058 | NUT-PAL NUT,M6 | 10 | $4.99 | In stock |
