Schematic diagram
Polaris•Schematic assembly
ENGINE, AIR INTAKE
Product Description

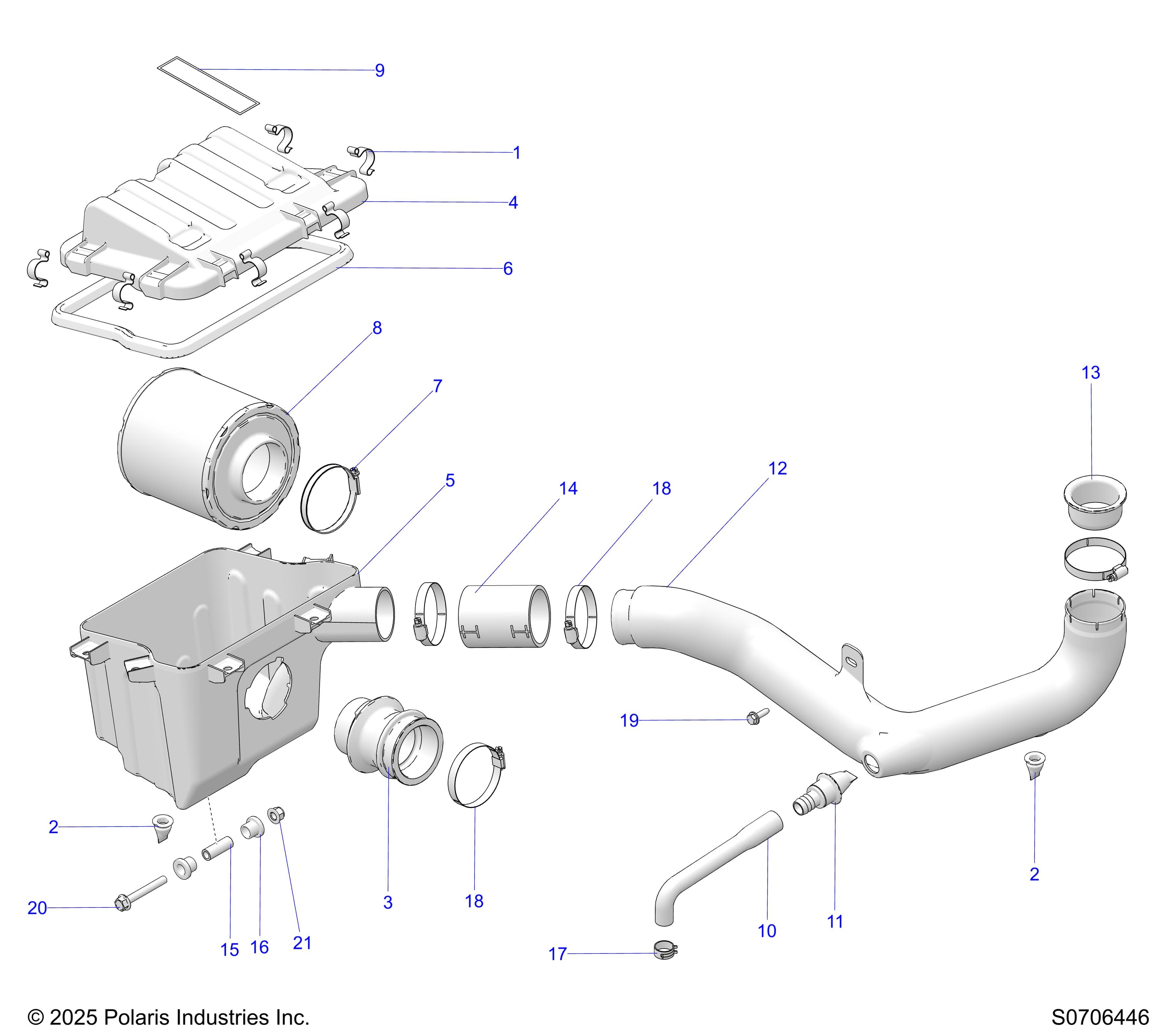

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 241610
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5242044 | CLIP-AIR BOX | 6 | Price TBD | Out of stock | |
| 2 | 5414472 | PLUG-DRAIN | 1 | Price TBD | Out of stock | |
| 3 | 5417998 | BOOT-ENGINE,INTAKE | 1 | $54.99 | In stock | |
| 4 | 5457955 | COVER, AIRBOX | 1 | $84.99 | In stock | |
| 5 | 5457956 | BOX, AIR INTAKE | 1 | $169.99 | In stock | |
| 6 | 5815088 | SEAL, AIR BOX COVER | 1 | $44.99 | In stock | |
| 7 | 7080707 | CLAMP-BAND,NARROW 60-80MM | 1 | Price TBD | Out of stock | |
| 8 | 7082037 | FILTER-AIR | 1 | $37.99 | In stock | |
| 9 | 7195873 | DECAL-CAUT.AIR BOX | 1 | $5.99 | In stock | |
| 10 | 2521911 | ASM-HOSE, BREATHER [INCLUDES 11] | 1 | $64.99 | In stock | |
| 11 | 7052577 | VALVE-BREATHER W/.53" BARB ID | 1 | $34.99 | In stock | |
| 12 | 5414503 | DUCT-INTAKE,AIRBOX | 1 | $74.99 | In stock | |
| 13 | 5415033 | SEAL,ENGINE,INLET | 1 | $4.99 | In stock | |
| 14 | 5418319 | HOSE, ENGINE, INLET | 1 | $18.99 | In stock | |
| 15 | 5138987 | SHAFT-COMPRESSION LMTR,34.4MM | 1 | Price TBD | Out of stock | |
| 16 | 5414719 | BUSHING-MOUNT | 2 | Price TBD | Out of stock | |
| 17 | 7081026 | CLAMP-HOSE,SPRING .81 | 1 | Price TBD | Out of stock | |
| 18 | 7081623 | CLAMP-WORM GEAR,44-70MM,HOSE | 4 | Price TBD | Out of stock | |
| 19 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 1 | Price TBD | Out of stock | |
| 20 | 7519298 | SCR-HXFL-M8X1.25X60 8.8 ZOD | 1 | Price TBD | Out of stock | |
| 21 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 1 | Price TBD | Out of stock |
