Polaris•Schematic assembly

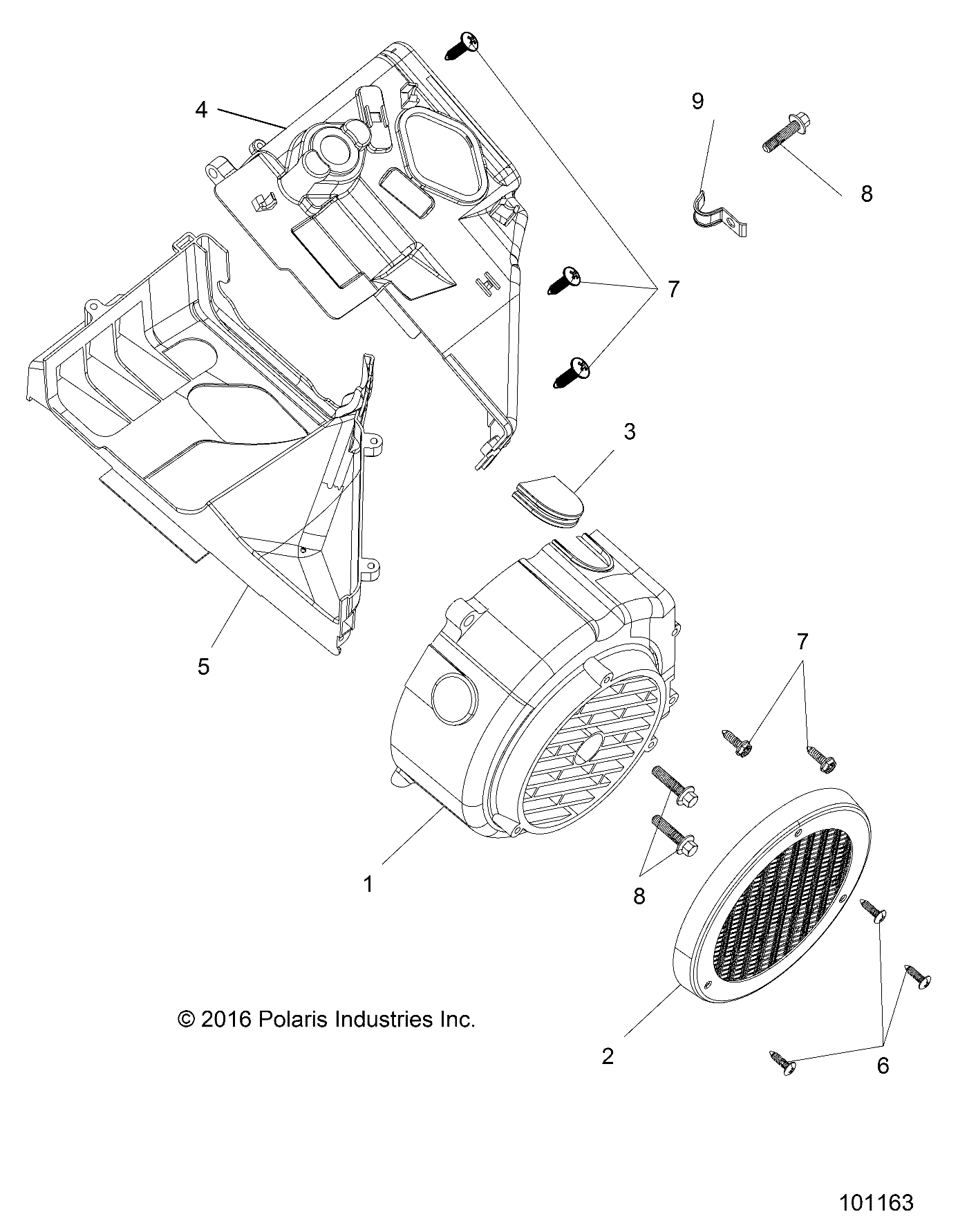

ENGINE, FAN COVER AND SHROUD COMP - R26HZA15D5 (101163)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 150 EFI AU Assembly ID: 241202
Vehicle Compatibility
- 2026 Polaris RANGER 150 EFI AU
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3050313 | COVER, COOLING FAN | 1 | $64.99 | In stock | |
| 2 | 3050314 | ISOLATION MESH | 1 | $54.99 | In stock | |
| 3 | 3050315 | FAN COVER PLUG | 1 | $11.99 | In stock | |
| 4 | 3050316 | SHROUD COMP B | 1 | $49.99 | In stock | |
| 5 | 3050317 | SHROUD COMP A | 1 | $49.99 | In stock | |
| 6 | 3050318 | SCREW ST 4.2X16 | 3 | $3.99 | In stock | |
| 7 | 3050319 | SCREW ST 4.8X16 | 5 | $5.99 | In stock | |
| 8 | 3050320 | BOLT M6X25 | 3 | $5.99 | In stock | |
| 9 | 3050321 | OVERFLOW PIPE CLAMP | 1 | $5.99 | In stock |
