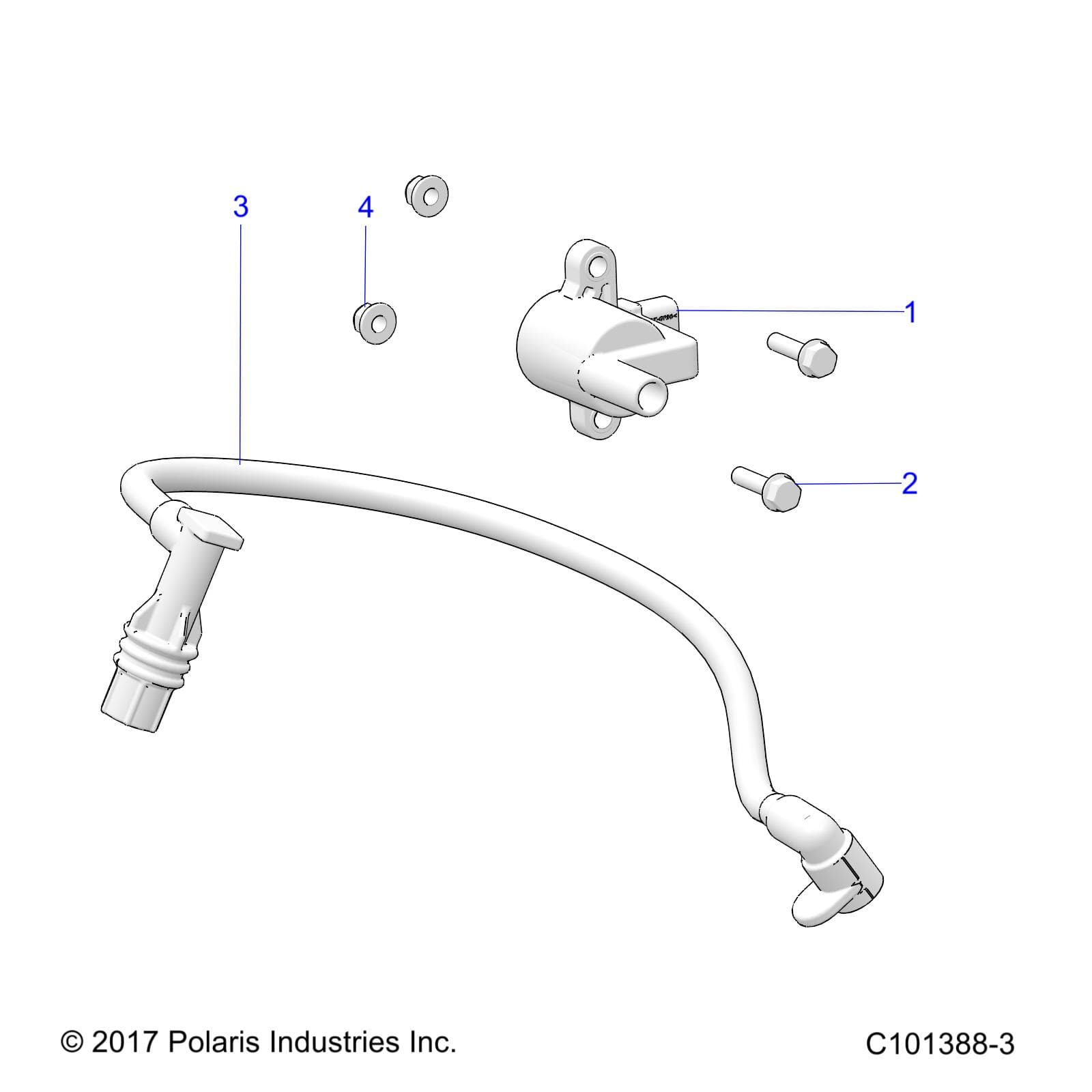

2026 RANGER 150 EFI AU — ELECTRICAL, IGNITION - R26HZA15D5 (C101388-3) diagram

Schematic diagram

Polaris•Schematic assembly

ELECTRICAL, IGNITION - R26HZA15D5 (C101388-3)

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 150 EFI AU Assembly ID: 241190

Vehicle Compatibility

  • 2026 Polaris RANGER 150 EFI AU

Checkout Note

Add all available parts in this assembly to your cart. You can also add individual parts using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
14015072COIL-IGNITION,SINGLE,W/DIODE1$134.99
In stock
27516823SCR-M6X1.0X25-HX/FL-Y/D2$3.99
In stock
34019790WIRE-SPARK-PLUG,27.5CM1$69.99
In stock
47548027NUT-HXFL-M6X1.0 8 ZTB NYL2$1.99
In stock
