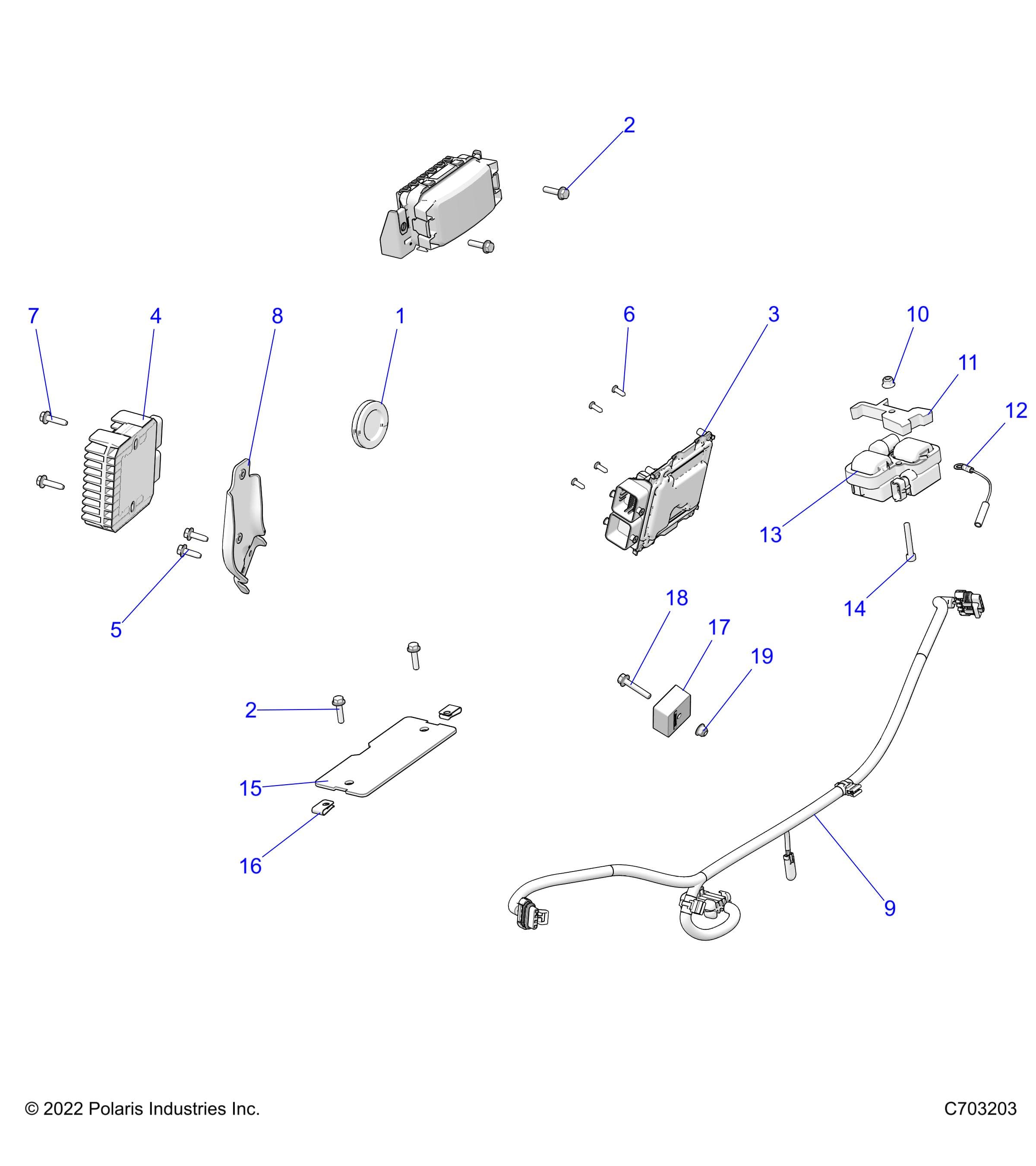

2026 RZR 900 TRAIL ULTIMATE — ELECTRICAL, HARNESS COMPONENTS AND RELATED - Z26A5F87A6 (C703203) diagram

Schematic diagram

Polaris•Schematic assembly

ELECTRICAL, HARNESS COMPONENTS AND RELATED - Z26A5F87A6 (C703203)

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RZR 900 TRAIL ULTIMATE Assembly ID: 241105

Vehicle Compatibility

  • 2026 Polaris RZR 900 TRAIL ULTIMATE

Checkout Note

Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
15414440GROMMET, ELECTRICAL, CAB1$8.99
In stock
27518533SCR-HXFL-M6X1.0X25 8.8 RIE4$1.49
In stock
34014125ECM-HARD,ME17,2CYL,250K1Price TBD
Out of stock
44016868REGULATOR-3PH,50A,SERIES,HISPD1Price TBD
Out of stock
57518529SCR-M6X1.0X20,HXHD,FLG,TDFM,BK2Price TBD
Out of stock
67519091SCR-#10X1/2-HI/LO-PN-T25, TRX-M4Price TBD
Out of stock
77519342SCR-TFHFL-M6X1.0X25,ZOD2$1.99
In stock
85264572-329BRKT-MOUNT,REGULATOR,ECOAT1$44.99
In stock
92415211HARNESS-BOX,RZR,64,CAMERA1$79.99
In stock
107548027NUT-HXFL-M6X1.0 8 ZTB NYL1Price TBD
Out of stock
115436577SPACER-COIL MOUNT1Price TBD
Out of stock
124014422JUMPER, COIL GROUND1$39.99
In stock
134010425COIL-EFI1Price TBD
Out of stock
147518780SCR-M6X1.0X40,HX/SOC/CP-B1Price TBD
Out of stock
155454317PANEL-CLOSEOFF,FUSE CTR LOC1$11.99
In stock
167547674NUT-M6-1.0, U-TYPE (2.5-3.8)2Price TBD
Out of stock
174012829RELAY, SOLID STATE, 9 AMP, LONG, LD1$94.99
In stock
187518612BOLT-M6X1.0X35,HXFLG/SH-OLV D1$5.99
In stock
197547339NUT-M6X1.0, FLG-NYLOC-OLIVE D1Price TBD
Out of stock
