Polaris•Schematic assembly

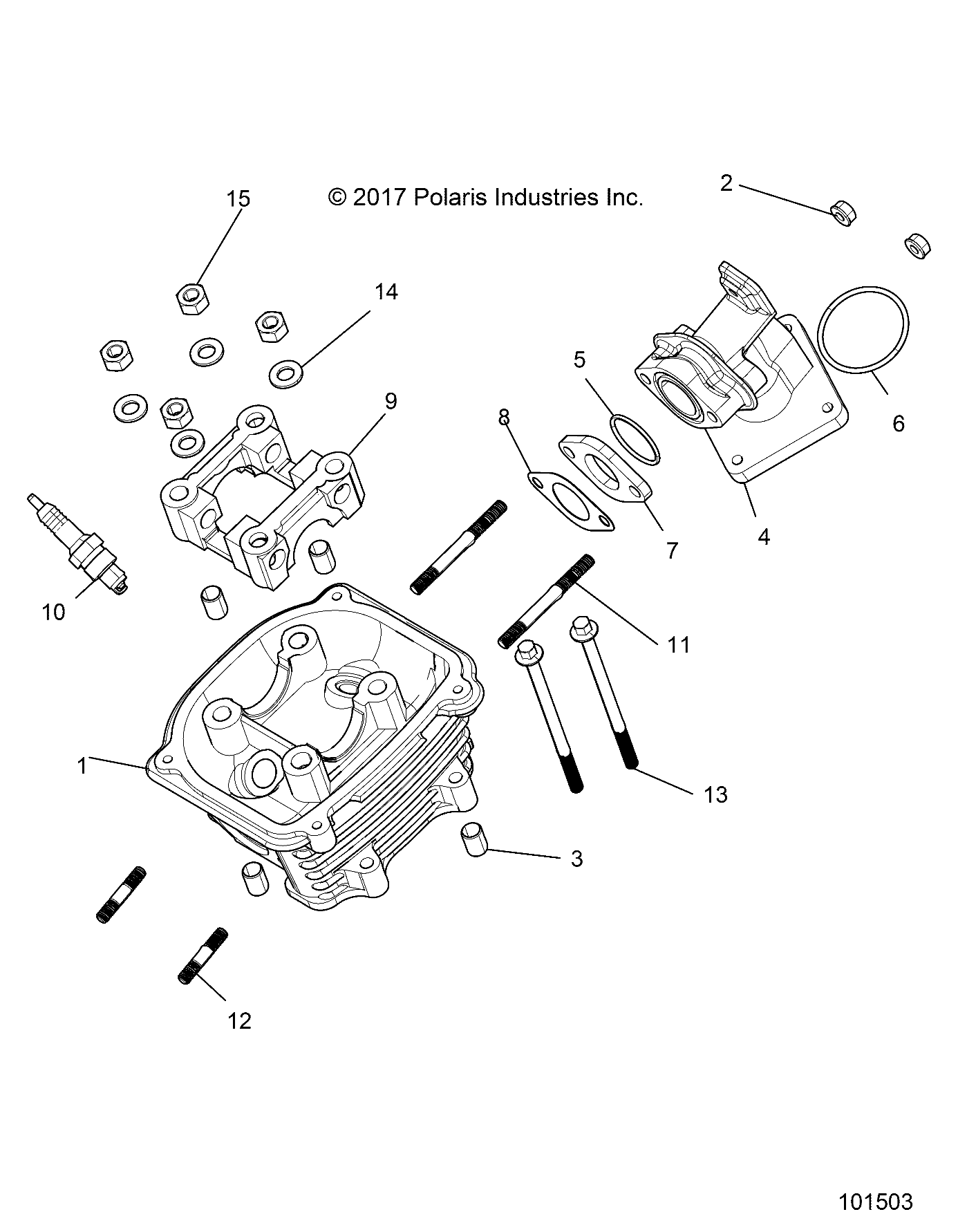

ENGINE, CYLINDER HEAD ASM. - R26HZA15A5/B5 (101503)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 150 EFI Assembly ID: 240940
Vehicle Compatibility
- 2026 Polaris RANGER 150 EFI
Checkout Note
Add all available parts in this assembly to your cart. You can also add individual parts using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3050045 | CYLINDER HEAD | 1 | $174.99 | In stock | |
| 2 | 3050333 | NUT M6 | 2 | $4.99 | In stock | |
| 3 | 3050047 | DOWEL PIN 10X16 | 4 | $4.99 | In stock | |
| 4 | 5140897 | ADAPTER-THROTTLE BODY(MACH),AR [A5] | 1 | $114.99 | In stock | |
| 4 | 5141537 | ADAPTER-THROTTLE BODY,EVAP [EVAP][B5] | 1 | $114.99 | In stock | |
| 5 | 5416176 | O-RING-THROTTLE BODY,2X27 | 1 | $3.49 | In stock | |
| 6 | 5416177 | O-RING-THROTTLE BODY,2.5X41 | 1 | $4.49 | In stock | |
| 7 | 3050048 | INSULATOR INTAKE | 1 | $34.99 | In stock | |
| 8 | 3050352 | GASKET CARBURATOR INSULATOR | 1 | $1.99 | In stock | |
| 9 | 3050050 | CAMSHAFT HOLDER | 1 | $84.99 | In stock | |
| 10 | 3050051 | SPARK PLUG | 1 | $10.99 | In stock | |
| 11 | 3050052 | DOUBLE-HEADED STUD M6 � 63 | 2 | $8.99 | In stock | |
| 12 | 3050053 | BOLT STUD M6X32 | 2 | $8.99 | In stock | |
| 13 | 3050330 | BOLT M6X100 | 2 | $5.99 | In stock | |
| 14 | 3050054 | WASHER 8 | 4 | $4.99 | In stock | |
| 15 | 3050343 | NUT M8 | 4 | $3.99 | In stock |
