Schematic diagram
Polaris•Schematic assembly

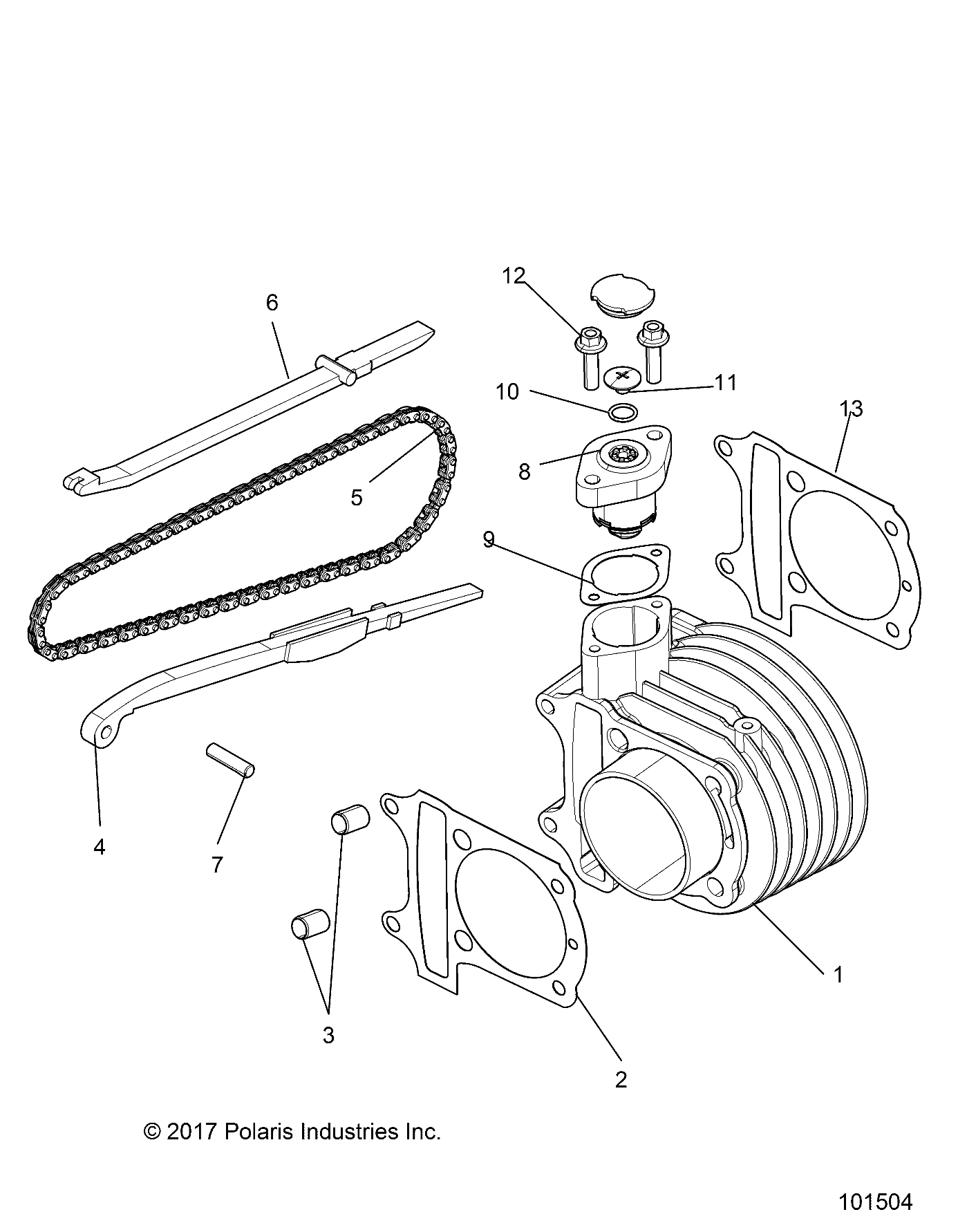

ENGINE, CYLINDER COMP - R26HZA15A5/B5 (101504)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 150 EFI Assembly ID: 240939
Vehicle Compatibility
- 2026 Polaris RANGER 150 EFI
Checkout Note
Please note that 2 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 3050055 | CYLINDER BLOCK | 1 | $304.99 | In stock | |
| 2 | 3050056 | GASKET, CYLINDER BLOCK | 1 | Price TBD | Out of stock | |
| 3 | 3050047 | DOWEL PIN 10X16 | 1 | $4.99 | In stock | |
| 4 | 3050058 | CHAIN GUIDE PLATE | 1 | $29.99 | In stock | |
| 5 | 3050059 | TIMING CHAIN | 1 | $109.99 | In stock | |
| 6 | 3050060 | TENSION PLATE | 1 | $44.99 | In stock | |
| 7 | 3050061 | TENSION ROD FIXED PIN | 1 | $10.99 | In stock | |
| 8 | 3050062 | ASM-TENSIONER | 1 | $54.99 | In stock | |
| 9 | 3050347 | GASKET, TENSIONER | 1 | $1.49 | In stock | |
| 10 | 3050064 | O-RING 9.5X1.5 | 1 | $1.49 | In stock | |
| 11 | 3050065 | BOLT, TENSION PLATE | 1 | $4.99 | In stock | |
| 12 | 3050331 | BOLT M6X22 | 1 | $4.99 | In stock | |
| 13 | 3050046 | GASKET CYLINDER HEAD | 1 | Price TBD | Out of stock |
