Schematic diagram

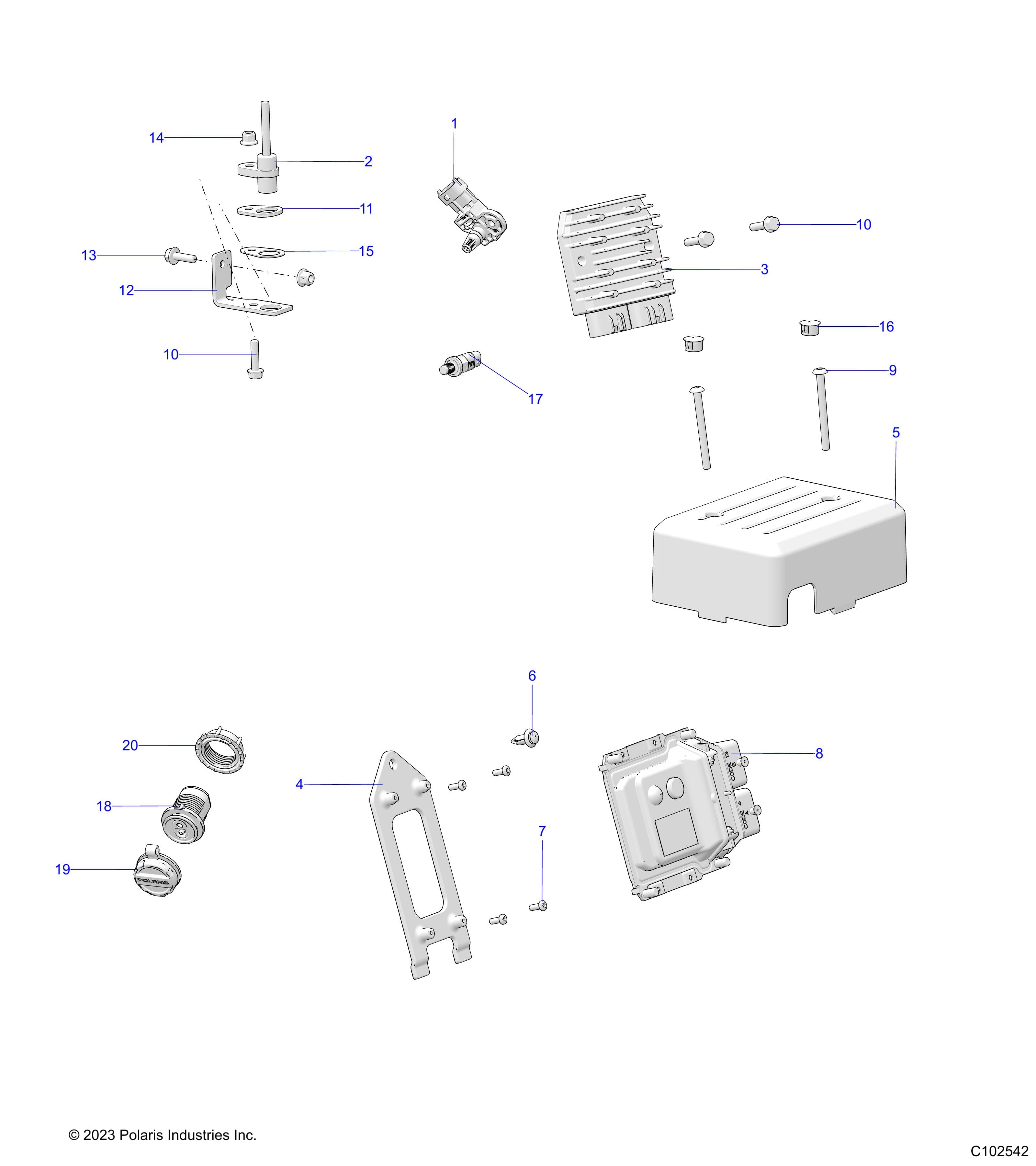

Polaris•Schematic assembly
ELECTRICAL, SENSORS, MODULES, and SWITCHES 2- R26HZA15A5/B5 (C102542)
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 150 EFI Assembly ID: 240932
Vehicle Compatibility
- 2026 Polaris RANGER 150 EFI
Checkout Note
Please note that 4 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2411528 | SENSOR-TMAP DSS3-TF | 1 | $119.99 | In stock | |
| 2 | 2414180 | SENSOR-SPEED,PICKUP,FILTER,32 [TO 3/1/2026] | 1 | $89.99 | In stock | |
| 2 | 4082183 | SENSOR-SPEED,PICKUP,FILTER,32 [FRM 3/1/2026] | 1 | Price TBD | Out of stock | |
| 3 | 4012941 | REGULATOR-3PH,35A,SERIES,105C | 1 | $299.99 | In stock | |
| 4 | 5438708-070 | MNT-ECM,REAR,BLK | 1 | $12.99 | In stock | |
| 5 | 5453537 | COVER-ELECTRICAL,PLASTIC | 1 | $18.99 | In stock | |
| 6 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 1 | $1.49 | In stock | |
| 7 | 7519091 | SCR-#10X1/2-HI/LO-PN-T25, TRX-M | 4 | $3.99 | In stock | |
| 8 | 4014125 | ECM-HARD,ME17,2CYL,250K [DEALER INSTALL REQUIRED] | 1 | $749.99 | Out of stock Est. Jul 24, 2026 | |
| 9 | 7519019 | SCR-M6X1.065MM,BTNHTXCS | 2 | $5.99 | In stock | |
| 10 | 7516823 | SCR-M6X1.0X25-HX/FL-Y/D | 5 | $3.99 | In stock | |
| 11 | 5263567 | SPACER-HALL SPEED SENSOR | 1 | $8.99 | In stock | |
| 12 | 5264141 | BRKT-MNT,SPEED SENSOR | 1 | $10.99 | In stock | |
| 13 | 7516822 | SCREW-M6X1.0X20-HX/FL-Y/D | 1 | $2.99 | In stock | |
| 14 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | $1.99 | In stock | |
| 15 | 5265803 | SHIM-SPEED SENSOR,1MM | 1 | $5.99 | In stock | |
| 16 | 5455568 | PLUG-ELECTRICAL COVER | 2 | $15.99 | In stock | |
| 17 | 4016513 | SENSOR-METAL TEMP,ARROW | 1 | $49.99 | In stock | |
| 18 | 2415295 | ASM-CHARGE PORT,BASE | 1 | $54.99 | In stock | |
| 18 | 2415198 | PLUG-HARNESS CHARGE PORT | 1 | Price TBD | Out of stock | |
| 19 | 5417215 | CAP-CHARGE PORT | 1 | $15.99 | In stock | |
| 20 | 5456622 | NUT-CHARGE PORT | 1 | Price TBD | Out of stock |
