Schematic diagram
Polaris•Schematic assembly

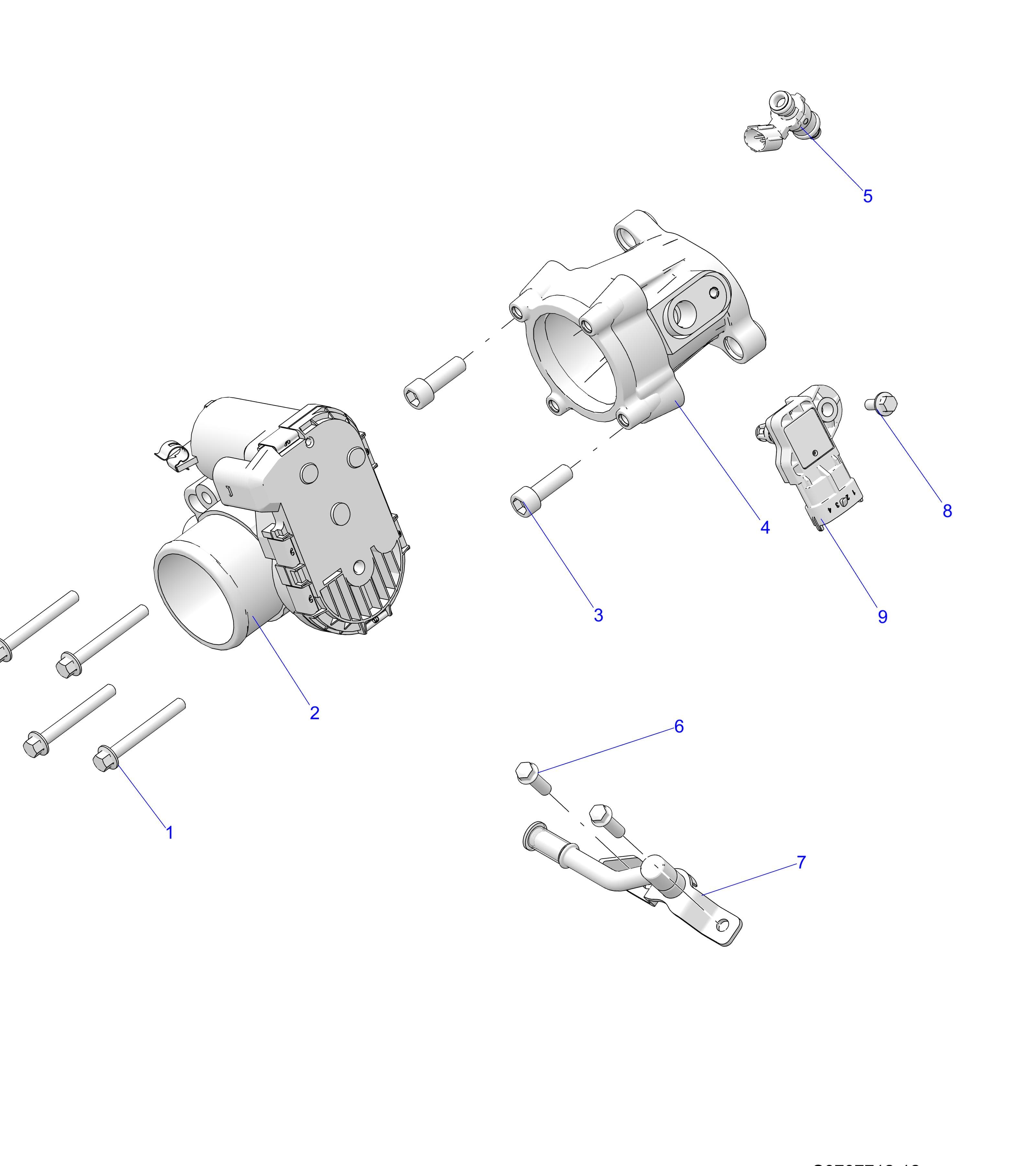

ENGINE, THROTTLE BODY & FUEL RAIL
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238330
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7517932 | SCR-M6X1.0X50.0 HX/FL-Y/D | 4 | Price TBD | Out of stock | |
| 2 | 1204455 | THROTTLE-ETC,46MM | 1 | Price TBD | Out of stock | |
| 3 | 7519859 | SCREW-SH-M8X1.25X25 8.8 ZPC | 2 | Price TBD | Out of stock | |
| 4 | 5418146 | ADAPTER-THROTTLE BODY [INCLUDES 4] | 1 | Price TBD | Out of stock | |
| 5 | 2521796 | INJ-FUEL,SE [INCLUDES O-RINGS] | 1 | Price TBD | Out of stock | |
| 5 | 5416412 | O-RING BOSCH,EV-SE,UPPER | 1 | Price TBD | Out of stock | |
| 5 | 5416413 | O-RING BOSCH,EV-SE,LOWER | 1 | Price TBD | Out of stock | |
| 6 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 2 | Price TBD | Out of stock | |
| 7 | 2521795 | RAIL-FUEL,1CYL | 1 | Price TBD | Out of stock | |
| 8 | 7516603 | SCR-HXFL-M5X0.8X14 18-8 | 1 | Price TBD | Out of stock | |
| 9 | 2411528 | SENSOR-TMAP DSS3-TF | 1 | Price TBD | Out of stock |
