Polaris•Schematic assembly

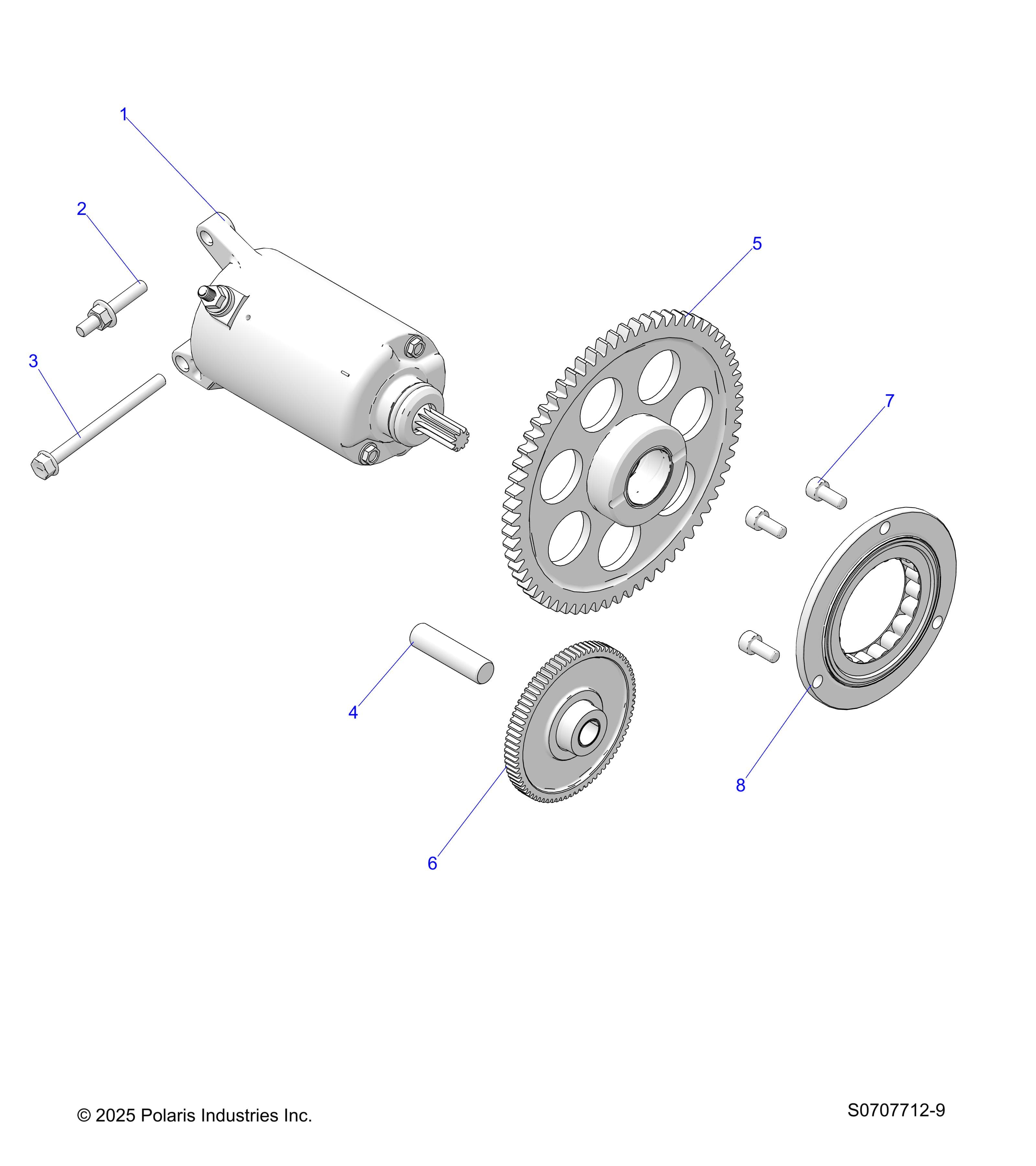

ENGINE, STARTER DRIVE
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238327
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 4014909 | STARTER,1-CYL | 1 | $299.99 | In stock | |
| 2 | 7519237 | STUD-DOUBLE,END,M6X1.0X25/10 | 1 | Price TBD | Out of stock | |
| 3 | 7520493 | SCR-HXFL-M6X1.0X75 8.8 | 1 | Price TBD | Out of stock | |
| 4 | 3023967 | PIN-SOLID,STARTER TQ LIMITGEAR | 1 | Price TBD | Out of stock | |
| 5 | 6230561 | GEAR-FREEWHEEL,1WAY CLUTCH | 1 | Price TBD | Out of stock | |
| 6 | 1204683 | ASM-GEAR,STARTER | 1 | Price TBD | Out of stock | |
| 7 | 7517431 | SCREW-M6X1.0X14.0,HX/SOC/CP-Y/D | 3 | Price TBD | Out of stock | |
| 8 | 1205604 | ASM-SPRAG CLUTCH,HUB,STARTER | 1 | Price TBD | Out of stock |
