Schematic diagram
Polaris•Schematic assembly

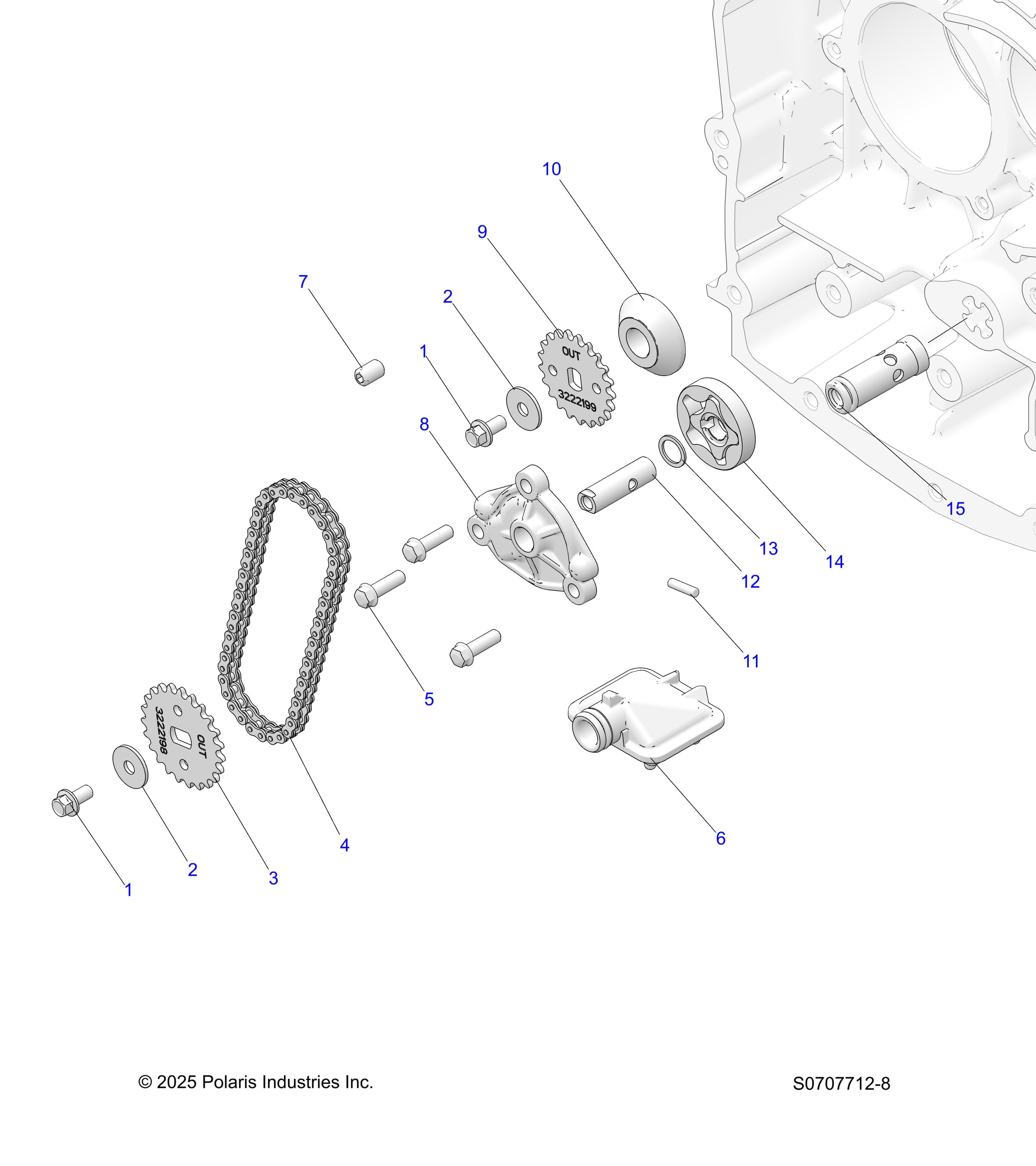

ENGINE, OIL PUMP
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238326
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7517257 | SCREW-HXFL-M6X1.0X12 10.9 ZPC | 2 | Price TBD | Out of stock | |
| 2 | 7556054 | WASHER-6.4X20.0X1.6 01 | 2 | Price TBD | Out of stock | |
| 3 | 3222198 | SPROCKET-23T,DRIVE | 1 | Price TBD | Out of stock | |
| 4 | 3225044 | CHAIN-OIL PUMP DRIVE | 1 | $29.99 | In stock | |
| 5 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 3 | Price TBD | Out of stock | |
| 6 | 2521168 | ASM-OIL PICKUP | 1 | $49.99 | In stock | |
| 7 | 2540080 | JET-OIL,OIL PUMP | 1 | Price TBD | Out of stock | |
| 8 | 5137408 | COVER-OIL PUMP,MACH | 1 | $49.99 | In stock | |
| 9 | 3222199 | SPROCKET-21T,DRIVEN | 1 | Price TBD | Out of stock | |
| 10 | 5137451 | SPACER-SPROCKET | 1 | Price TBD | Out of stock | |
| 11 | 3022308 | PIN-SOLID,M4X15.8 | 1 | Price TBD | Out of stock | |
| 12 | 5138077 | SHAFT-OIL PUMP | 1 | Price TBD | Out of stock | |
| 13 | 7556570 | WASHER-11.2X15.0X1.0 | 1 | Price TBD | Out of stock | |
| 14 | 1204293 | ASM-GEROTOR | 1 | Price TBD | Out of stock | |
| 15 | 2521772 | ASM-REGULATOR VALVE | 1 | $99.99 | In stock |
