Polaris•Schematic assembly

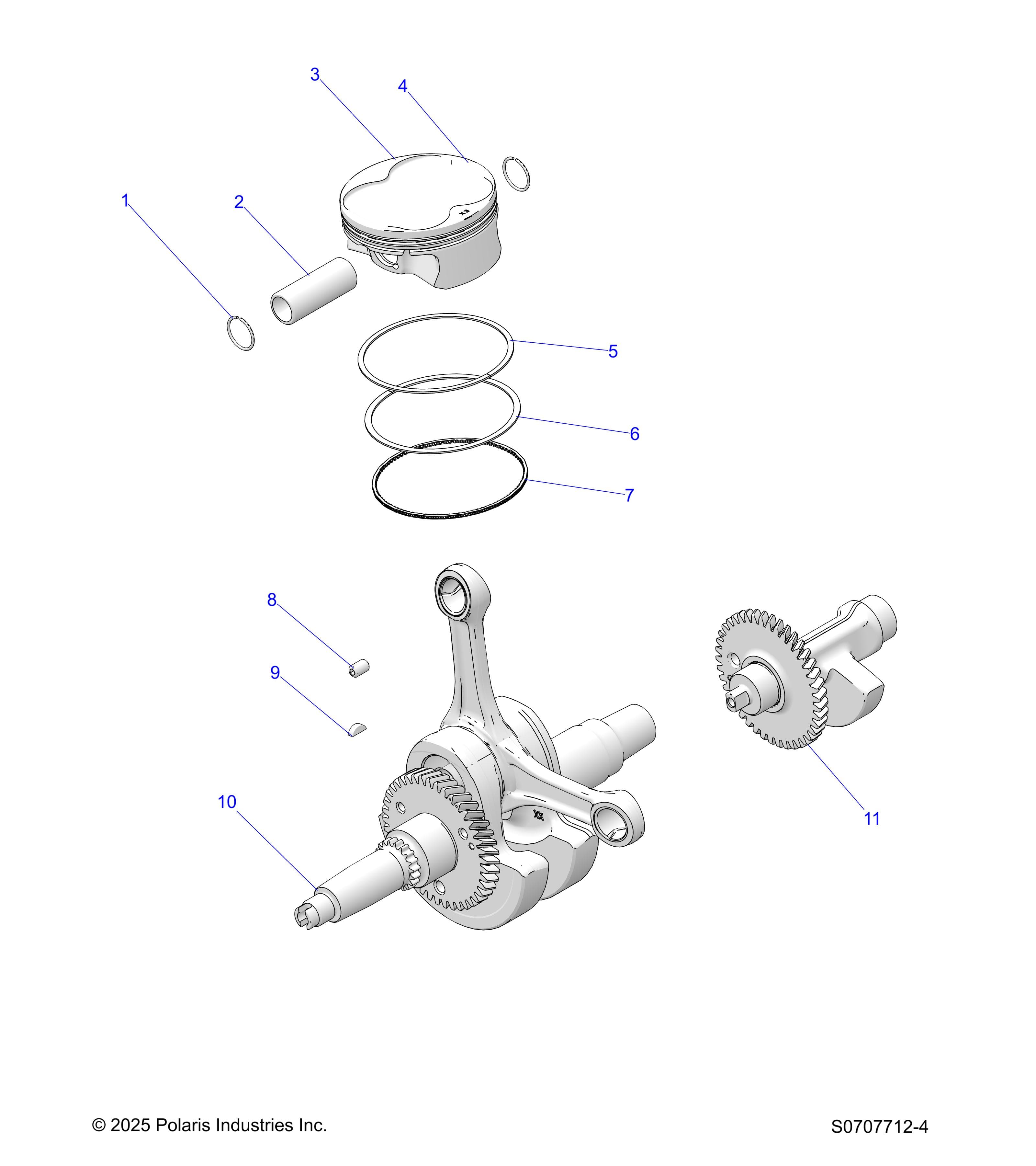

ENGINE, CRANKSHAFT, PISTON & BALANCE SHAFT
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238322
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7710479 | RING-RTNG,RND,22.0X1.6,0600102 | 2 | Price TBD | Out of stock | |
| 2 | 3022291 | PIN-PISTON,22X12.8X56.6MM | 1 | Price TBD | Out of stock | |
| 3 | 2204960 | KIT-PISTON 99MM [INCLUDES 3] | 1 | Price TBD | Out of stock | |
| 3 | 3022477 | ASM-PISTON,99MM [INCLUDES 1,2,4,5,6] | 1 | Price TBD | Out of stock | |
| 4 | 3022472 | PISTON-99MM,MACH | 1 | Price TBD | Out of stock | |
| 5 | 2204733 | KIT-RING,STD [INCLUDES 5-7] | 1 | Price TBD | Out of stock | |
| 5 | 3022406 | RING-TOP,COMP TWIST,99MM | 1 | $29.99 | In stock | |
| 6 | 3022293 | RING-SECOND COMPRESSION,99MM | 1 | $19.99 | In stock | |
| 7 | 3022294 | RING-OIL SCRAPER,99MM | 1 | Price TBD | Out of stock | |
| 8 | 2540080 | JET-OIL,OIL PUMP | 1 | Price TBD | Out of stock | |
| 9 | 7721122 | KEY-WOODRUFF,4X5 | 1 | Price TBD | Out of stock | |
| 10 | 2206356 | K-CRANKSHAFT 570 [INCLUDES 8 &10] | 1 | Price TBD | Out of stock | |
| 10 | 3024223 | ASM-CRANKSHAFT,MACH,73.6MM | 1 | $1,149.99 | In stock | |
| 11 | 1204515 | ASM-BALANCE SHAFT | 1 | Price TBD | Out of stock |
