Schematic diagram
Polaris•Schematic assembly

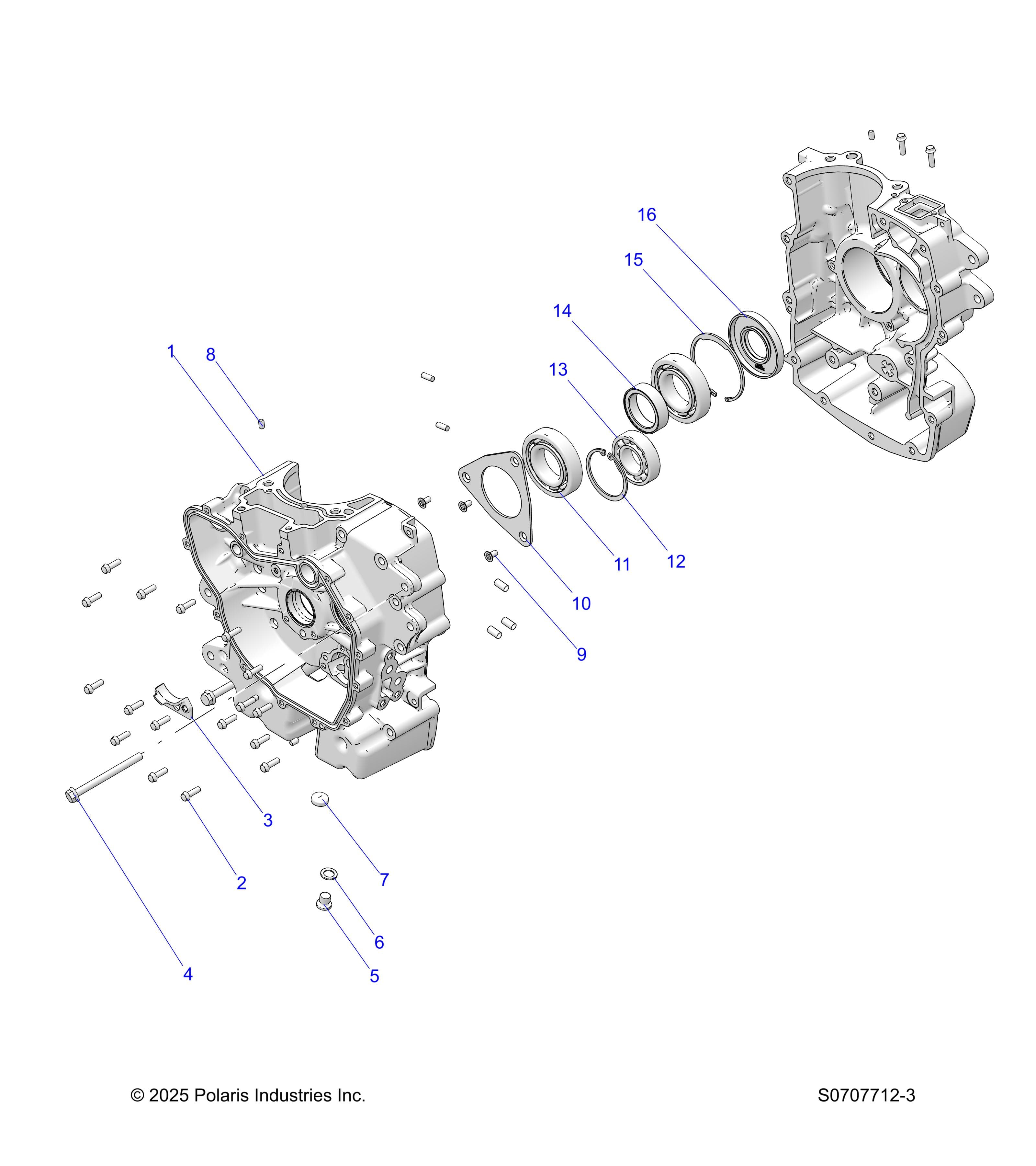

ENGINE, CRANKCASE
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238321
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2213011 | K-CRANKCASE 570 | 1 | $1,349.99 | In stock | |
| 2 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 20 | Price TBD | Out of stock | |
| 3 | 3022711 | GUIDE-CAM DRIVE,LOWER | 1 | Price TBD | Out of stock | |
| 4 | 7520104 | SCREW-M8X1.25X90 | 17 | Price TBD | Out of stock | |
| 5 | 7052306 | PLUG-SOCKET,M12X1.5 DIN 908A | 1 | Price TBD | Out of stock | |
| 6 | 7556937 | WASHER-COPPER SEALING | 1 | Price TBD | Out of stock | |
| 7 | 7055701 | PLUG-EXPANSION 19MM | 1 | Price TBD | Out of stock | |
| 8 | 5143560 | PIN-DOWEL,M6X10 | 7 | Price TBD | Out of stock | |
| 9 | 7517598 | SCREW-M6X12 TORX DR FH | 3 | Price TBD | Out of stock | |
| 10 | 5256915 | PLATE-BEARING RETAINER | 1 | Price TBD | Out of stock | |
| 11 | 3515831 | BEARING-BALL 40X80X18 DG NCAGE | 2 | Price TBD | Out of stock | |
| 12 | 7718471 | RING-RTNG,INTERNAL,62MM,PHOS | 1 | Price TBD | Out of stock | |
| 13 | 3515827 | BEARING-BALL,30X62X16 | 2 | Price TBD | Out of stock | |
| 14 | 5144728 | SPACER-BRG,MACH | 1 | Price TBD | Out of stock | |
| 15 | 7710660 | RING-SNAP,80X2.5 | 1 | Price TBD | Out of stock | |
| 16 | 3610171 | SEAL-CRANKSHAFT | 1 | Price TBD | Out of stock |
