Schematic diagram
Polaris•Schematic assembly

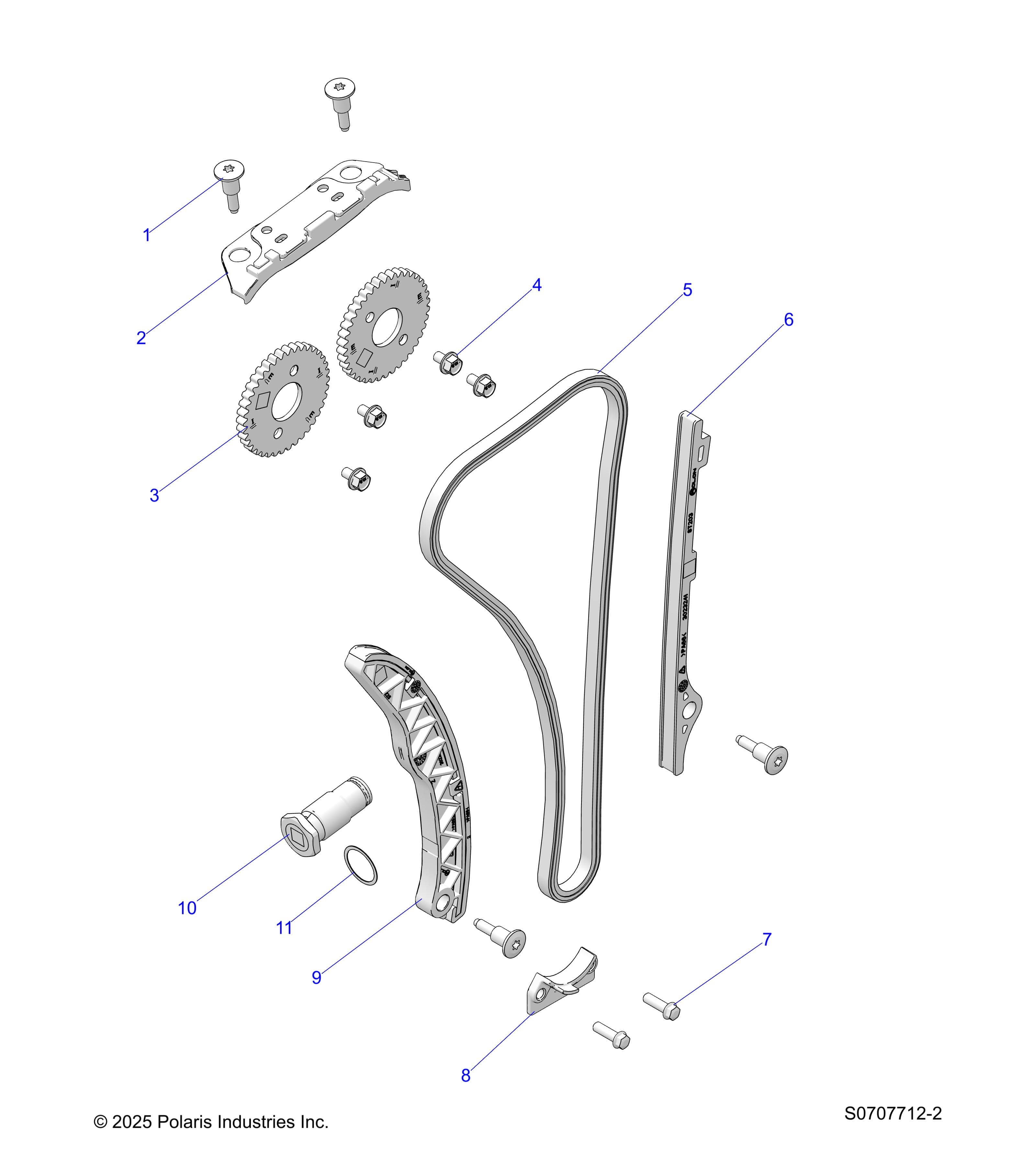

ENGINE, CAM CHAIN & SPROCKET
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238320
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 11 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 7519165 | SCREW-TXPH-M6X1.0X14 8.8 A2K SHB | 4 | Price TBD | Out of stock | |
| 2 | 3024019 | GUIDE-CAM DRIVE,UPPER | 1 | Price TBD | Out of stock | |
| 3 | 3222265 | SPROCKET-CAM,DRIVEN,DOHC | 2 | Price TBD | Out of stock | |
| 4 | 7519164 | SCREW-HXFL,M6X1.0X10 10.9 | 4 | Price TBD | Out of stock | |
| 5 | 3222264 | CHAIN-CAMSHAFT 144L | 1 | Price TBD | Out of stock | |
| 6 | 3023241 | GUIDE-CAM DRIVE,FIXED | 1 | Price TBD | Out of stock | |
| 7 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 2 | Price TBD | Out of stock | |
| 8 | 3022711 | GUIDE-CAM DRIVE,LOWER | 1 | Price TBD | Out of stock | |
| 9 | 3023240 | GUIDE-CAM DRIVE,TENSIONED | 1 | Price TBD | Out of stock | |
| 10 | 3023501 | TENSIONER-CAMCHAIN,HYD [INCLUDES 11] | 1 | Price TBD | Out of stock | |
| 11 | 5814753 | GASKET-TENSIONER | 1 | Price TBD | Out of stock |
