Schematic diagram
Polaris•Schematic assembly

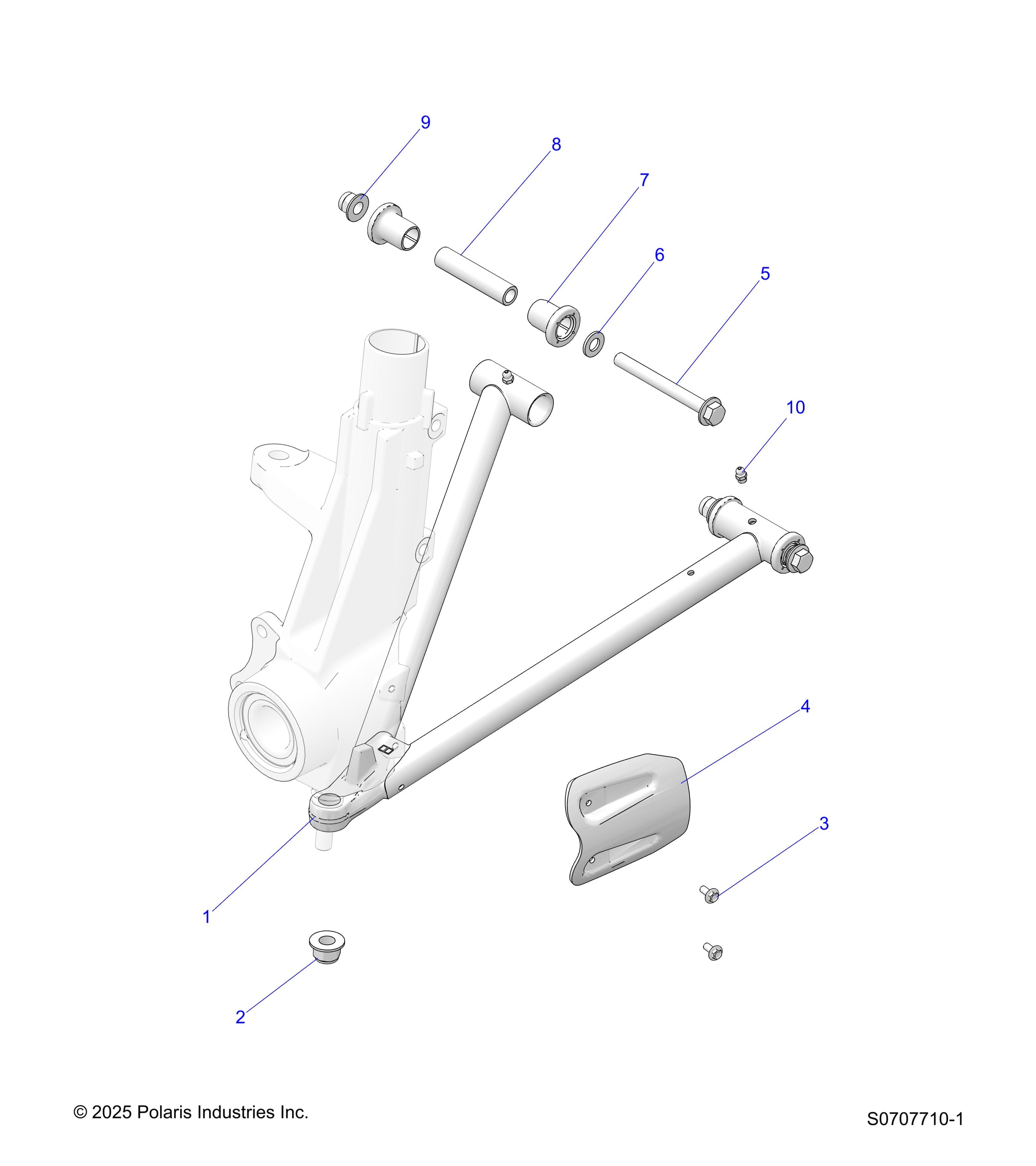

SUSPENSION, FRONT A-ARMS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238297
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1545369-458 | WELD-A-FRAME,LH,M.BLK | 1 | $144.99 | In stock | |
| 1 | 1545370-458 | WELD-A-FRAME,RH,M.BLK | 1 | $144.99 | In stock | |
| 2 | 7547334 | NUT-M12X1.5, FLG, NYLOC-OLIVE D | 1 | Price TBD | Out of stock | |
| 3 | 7518796 | SCR-HXFL-M5X0.8X12 4.8 ZPC | 2 | Price TBD | Out of stock | |
| 4 | 5458188 | SHIELD-CV,FRONT | 1 | $11.99 | In stock | |
| 5 | 7519043 | SCR-HXFL-M10X1.25X95 10.9 ZOD | 2 | Price TBD | Out of stock | |
| 6 | 7557235 | WSHR-FLAT-M10X2.0 ZTB | 2 | Price TBD | Out of stock | |
| 7 | 5439874 | BUSHING-STANDARD,ORV | 4 | Price TBD | Out of stock | |
| 8 | 5138797 | SHAFT-PIVOT,70.99MM,15.88OD | 2 | $10.99 | In stock | |
| 9 | 7547333 | NUT-HXFL M10X1.25 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 10 | 7080433 | FITTING-LUB, 1/4-28-STR/1792-Y | 2 | Price TBD | Out of stock |
