Schematic diagram
Polaris•Schematic assembly

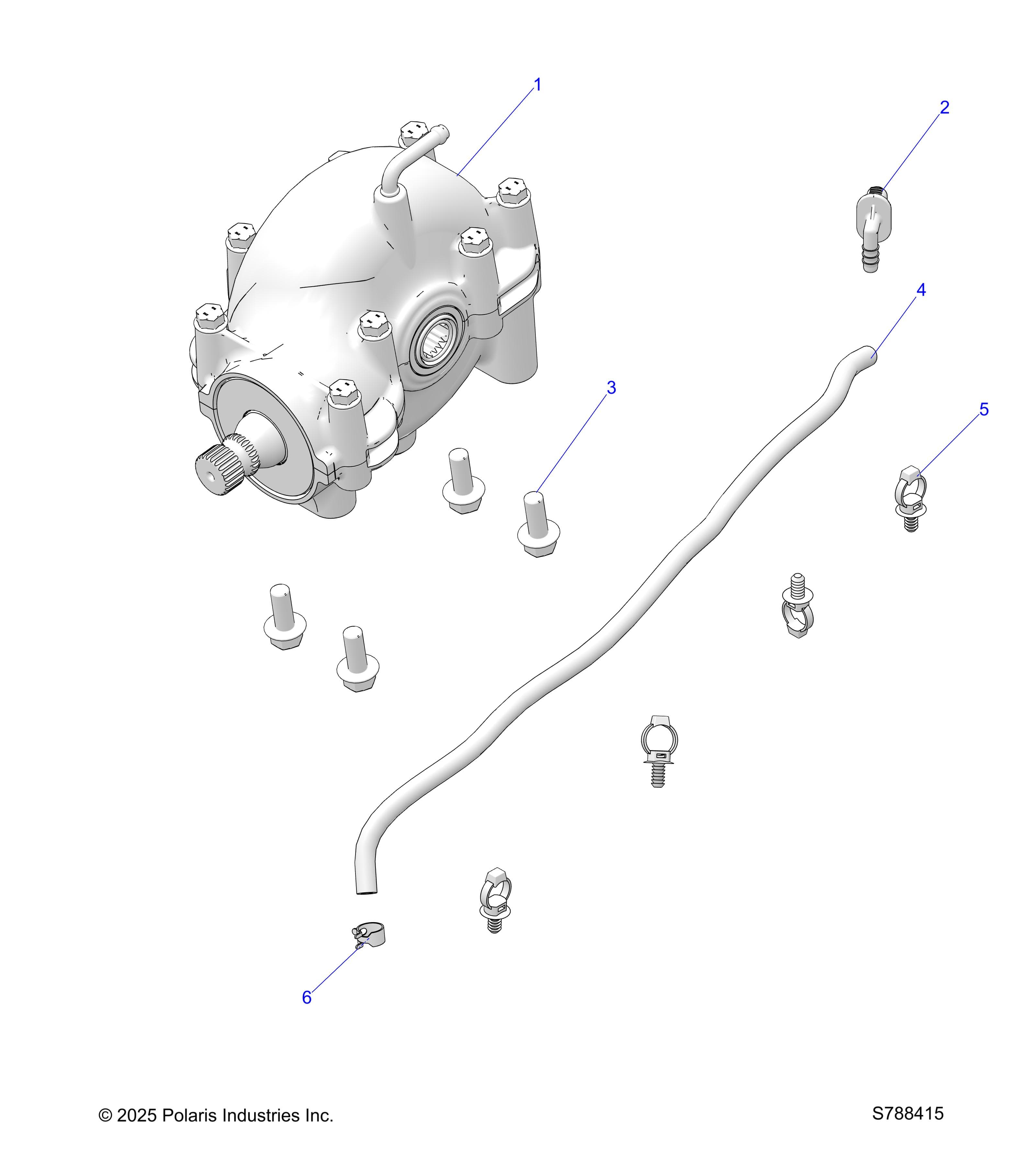

DRIVE TRAIN, FRONT GEARCASE MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238161
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1337392 | ASM-GEARCASE,FRONT | 1 | $1,049.99 | In stock | |
| 2 | 5453464 | FITTING-VENT LINE,90 | 1 | Price TBD | Out of stock | |
| 3 | 7527983 | SCR-HXFL-M10X1.5X25,ZFB P30 | 4 | Price TBD | Out of stock | |
| 4 | 8450040-76 | FUEL LINE-76 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 5 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 4 | Price TBD | Out of stock | |
| 6 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 1 | Price TBD | Out of stock |
