DRIVE TRAIN, MAIN GEARCASE INTERNALS
Product Description

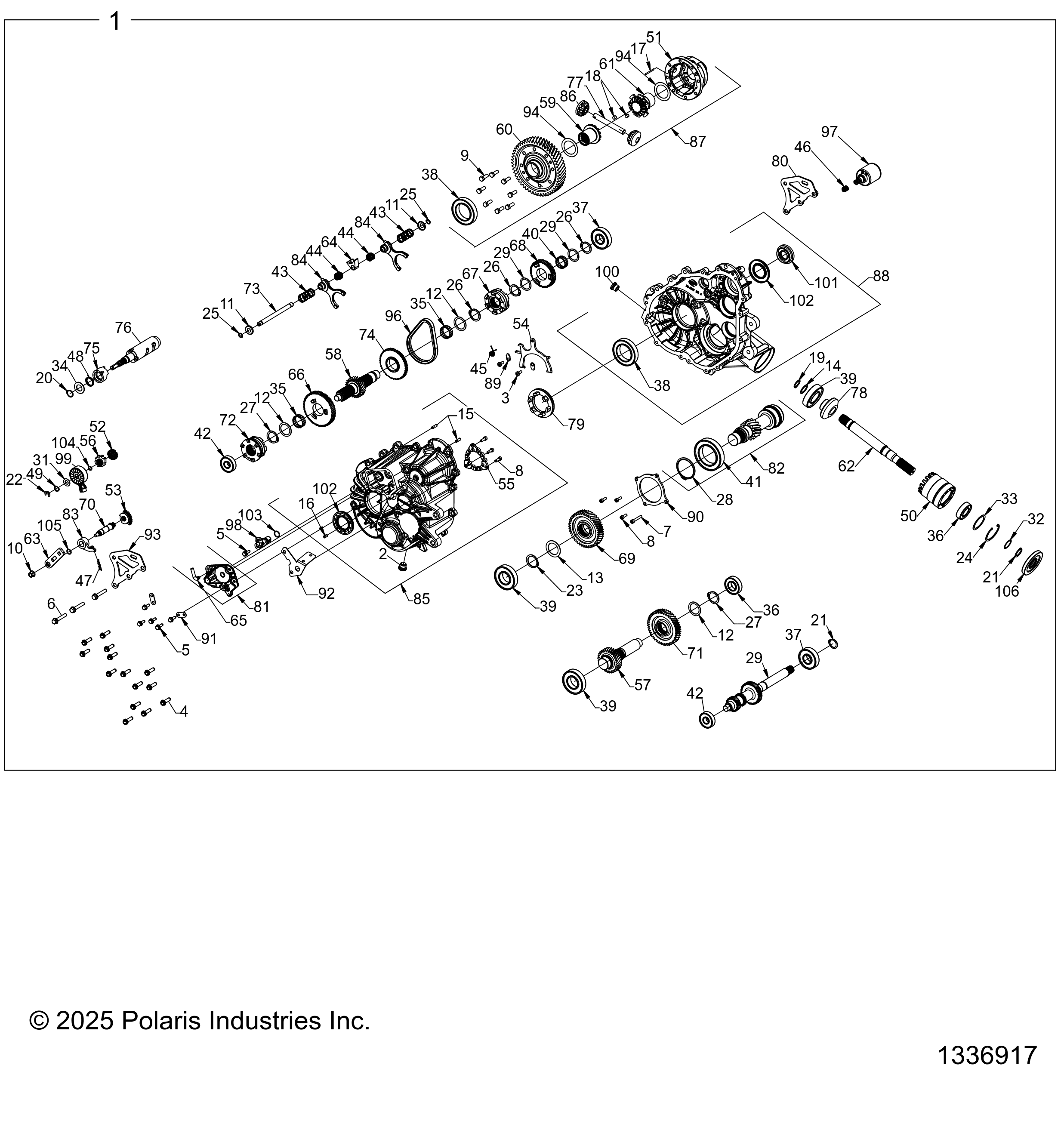

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238158
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 97 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 2 | 3234756 | PLUG, M18 X 1.5 MAGNETIC | 1 | Price TBD | Out of stock | |
| 3 | 3234309 | SCREW, 6-LOBE, PAN HD M6 X 1 X 16 | 2 | Price TBD | Out of stock | |
| 4 | 3234898 | SCREW-HEXFLANGEHEAD,M8X1.25X30 | 14 | Price TBD | Out of stock | |
| 5 | 3235206 | SCREW, HEX FLANGE HEAD, M6 X 1 X 20 | 6 | Price TBD | Out of stock | |
| 6 | 3235207 | SCREW, HEX FLANGE M8 X 50 | 3 | Price TBD | Out of stock | |
| 7 | 3235208 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 40 | 1 | Price TBD | Out of stock | |
| 8 | 3235332 | SCREW, SOCKET HEAD, CAP, M6 X 1.0 X 18 | 6 | Price TBD | Out of stock | |
| 9 | 3236169 | SCREW, CAP HH M8 X 1.25 X 25 | 8 | Price TBD | Out of stock | |
| 10 | 3235210 | NUT, LOCK HEX FLANGE, NYLON M8 X 1.25 | 1 | Price TBD | Out of stock | |
| 11 | 3234091 | WASHER-CUP | 2 | Price TBD | Out of stock | |
| 12 | 3235211 | WASHER-32.3X42X1.5(115288) | 3 | Price TBD | Out of stock | |
| 13 | 3235212 | WASHER-35.6X57X1.5(115289) | 1 | Price TBD | Out of stock | |
| 14 | 3236410 | WASHER, 22.5 X 30 X 1.5 | 1 | Price TBD | Out of stock | |
| 15 | 3234330 | PIN, DOWEL 6 X 20 | 2 | Price TBD | Out of stock | |
| 16 | 7043746 | PIN, SPRING, SLOTTED 6 X 12 | 1 | Price TBD | Out of stock | |
| 17 | 3236286 | PIN, DOWEL 3 X 40 | 1 | Price TBD | Out of stock | |
| 18 | 3236295 | PIN, DOWEL 8 X 10 | 2 | Price TBD | Out of stock | |
| 19 | 7710434 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 20 | 3233045 | RING,RETAINING BASIC,EXTERNAL 0.75 | 1 | Price TBD | Out of stock | |
| 21 | 3233106 | RING,RETAINING BASIC,EXTERNAL 0.984 | 2 | Price TBD | Out of stock | |
| 22 | 3233834 | RING, RETAINING BASIC EXTERNAL | 1 | Price TBD | Out of stock | |
| 23 | 3233364 | RING, RETAINING, SHAFT, DIA. 1.375 | 1 | Price TBD | Out of stock | |
| 24 | 3234269 | RING,RETAINING BASIC,INTERNAL 2.047 | 1 | Price TBD | Out of stock | |
| 25 | 3234090 | RING,RETAINING BASIC,EXTERNAL 0.428 | 2 | Price TBD | Out of stock | |
| 26 | 3234205 | RING, RETAINING, | 2 | Price TBD | Out of stock | |
| 27 | 3235214 | RING-RETAIN,EXT,MSR-32(130296) | 3 | Price TBD | Out of stock | |
| 28 | 3235216 | RING-RETAIN,VSH-237(130298) | 1 | Price TBD | Out of stock | |
| 29 | 3235429 | SHAFT, BOSS LW UTILITY, INPUT | 1 | $219.99 | In stock | |
| 31 | 3234642 | WASHER,THRUST,0.446 X 0.88 X 0.025 | 1 | Price TBD | Out of stock | |
| 32 | 3234272 | SHIM, 1.180 OD X 0.995 ID | 1 | Price TBD | Out of stock | |
| 33 | 3234273 | SHIM, 2.040 OD X 1.63 ID | 1 | Price TBD | Out of stock | |
| 34 | 3235883 | SPACER, 19.4 X 34.0 X 2.0 | 1 | Price TBD | Out of stock | |
| 35 | 3233014 | BEARING, NEEDLE | 2 | Price TBD | Out of stock | |
| 36 | 3233019 | BEARING, BALL, 6205 C3 25X52X15 | 2 | Price TBD | Out of stock | |
| 37 | 3233020 | BEARING | 2 | Price TBD | Out of stock | |
| 38 | 3233268 | BEARING-BALL 6010 C3 50 X 80 X 10 | 2 | Price TBD | Out of stock | |
| 39 | 3234065 | BEARING,BALL 6207 C3 35X72X17 | 3 | Price TBD | Out of stock | |
| 40 | 3233384 | BEARING-NEEDLE,30X35X13-CAGED | 1 | Price TBD | Out of stock | |
| 41 | 3235218 | BEARING, BALL, 6012 C3 60 X 95 X 18 | 1 | Price TBD | Out of stock | |
| 42 | 3234652 | BEARING, BALL 6303, 17 X 47 X 14 | 2 | Price TBD | Out of stock | |
| 43 | 3234078 | SPRING,COMPRESSION, .92 O.D. X 2.000 | 2 | Price TBD | Out of stock | |
| 44 | 3234089 | SPRING, COMPRESSION, 0.46 I.D. X 0.73 | 2 | Price TBD | Out of stock | |
| 45 | 3234276 | SPRING, TORSION, RETURN | 1 | Price TBD | Out of stock | |
| 46 | 3234277 | SPRING,COMPRSSN.54ODX.44IDX.05 | 1 | Price TBD | Out of stock | |
| 47 | 3234578 | SPRING, COMPRESSION 0.36 O.D. X 1.125 | 1 | Price TBD | Out of stock | |
| 48 | 3235885 | SPRING, TORSION | 1 | Price TBD | Out of stock | |
| 49 | 3235327 | WASHER-SPRING,210393 | 1 | Price TBD | Out of stock | |
| 50 | 3234278 | TUBE, SNORKEL MACHINED | 1 | Price TBD | Out of stock | |
| 51 | 3236287 | CARRIER, DIFFERENTIAL MACH | 1 | Price TBD | Out of stock | |
| 52 | 3233839 | GEAR, SECTOR, 16T | 1 | Price TBD | Out of stock | |
| 53 | 3233832 | GEAR-SECTOR,31T | 1 | Price TBD | Out of stock | |
| 54 | 3235455 | FORK, PIVOT SHIFT, REAR DIFF | 1 | Price TBD | Out of stock | |
| 55 | 3235456 | PLATE, PARK, 12 FACE | 1 | Price TBD | Out of stock | |
| 56 | 3235982 | STAR, DETENT, | 1 | Price TBD | Out of stock | |
| 57 | 3235223 | SHAFT-IDLER,29T(285803) | 1 | Price TBD | Out of stock | |
| 58 | 3235451 | SHAFT, REVERSE, 25T | 1 | Price TBD | Out of stock | |
| 59 | 3236290 | GEAR, 14T OUTPUT, MACH | 1 | Price TBD | Out of stock | |
| 60 | 3236291 | GEAR, 53T OUTPUT | 1 | Price TBD | Out of stock | |
| 61 | 3236289 | GEAR, 14T OUTPUT DISCONNECT, MACH | 1 | Price TBD | Out of stock | |
| 62 | 3236439 | SHAFT, FRONT OUTPUT | 1 | Price TBD | Out of stock | |
| 63 | 3235474 | BELLCRANK | 1 | $39.99 | In stock | |
| 64 | 3234073 | COLLAR-SHIFT | 1 | Price TBD | Out of stock | |
| 65 | 3234230 | TUBE, VENT 90 -1/4 INCH HOSE | 1 | Price TBD | Out of stock | |
| 66 | 3235232 | GEAR-LOW,67T(352856) | 1 | Price TBD | Out of stock | |
| 67 | 3235233 | ENGAGEMENT DOG,6-FACE(352857) | 1 | Price TBD | Out of stock | |
| 68 | 3235234 | GEAR-53T(352858) | 1 | Price TBD | Out of stock | |
| 69 | 3235236 | GEAR-46T,STAGE 3(352872) | 1 | Price TBD | Out of stock | |
| 70 | 3235238 | SHAFT-SHIFT(352973) | 1 | Price TBD | Out of stock | |
| 71 | 3235450 | GEAR, 48T, STAGE 2 | 1 | Price TBD | Out of stock | |
| 72 | 3235457 | SHIFT DOG, PARK/LOW (353357) | 1 | Price TBD | Out of stock | |
| 73 | 3235542 | RAIL-SHIFT SHAFT(353622) | 1 | Price TBD | Out of stock | |
| 74 | 3235755 | SPROCKET-48T,6-FACE REVERSE | 1 | Price TBD | Out of stock | |
| 75 | 3235983 | CAM, PARK | 1 | Price TBD | Out of stock | |
| 76 | 3235984 | DRUM, SHIFT MACH, | 1 | Price TBD | Out of stock | |
| 77 | 3236292 | PIN, DIFFERENTIAL | 1 | Price TBD | Out of stock | |
| 78 | 3236412 | GEAR, 13T SNORKEL | 1 | Price TBD | Out of stock | |
| 79 | 3236293 | DOG, ENGAGEMENT | 1 | Price TBD | Out of stock | |
| 80 | 3235510 | WELDMENT, REAR MOUNT BRACKET | 1 | $64.99 | In stock | |
| 81 | 3235713 | SUBASSEMBLY, SECTOR COVER | 1 | Price TBD | Out of stock | |
| 82 | 3235336 | SUBASM.,SHAFT | 1 | Price TBD | Out of stock | |
| 83 | 3235452 | SUBASSEMBLY, PAWL, DETENT, ROLLER | 1 | Price TBD | Out of stock | |
| 84 | 3235920 | SUBASSEMBLY, SHIFT FORK | 2 | Price TBD | Out of stock | |
| 85 | 3235995 | SUBASSEMBLY, RH COVER | 1 | Price TBD | Out of stock | |
| 86 | 3236288 | SUBASSEMBLY, PINION GEAR | 2 | Price TBD | Out of stock | |
| 87 | 3236285 | SUBASSEMBLY, DIFFERENTIAL | 1 | Price TBD | Out of stock | |
| 88 | 3236550 | SUBASSEMBLY, LH CASE | 1 | $759.99 | In stock | |
| 89 | 3234934 | RETAINER-FORK | 2 | Price TBD | Out of stock | |
| 90 | 3235241 | COVER-BEARING,CNTR DR. | 1 | Price TBD | Out of stock | |
| 91 | 3235350 | BRACKET, WIRE HARNESS | 2 | Price TBD | Out of stock | |
| 92 | 5257251 | BRACKET, HARNESS MOUNT | 1 | $39.99 | In stock | |
| 93 | 3235511 | BRACKET, MOUNT, REAR | 1 | $64.99 | In stock | |
| 94 | 3236294 | WASHER, THRUST, 40.83 X 56.25 X 0.38 | 2 | Price TBD | Out of stock | |
| 96 | 3234737 | CHAIN,SIL 101,.25P X .40W X58L | 1 | Price TBD | Out of stock | |
| 97 | 3235478 | SOLENOID | 1 | Price TBD | Out of stock | |
| 98 | 4082135 | SENSOR-SPEED [INCLUDES #103] | 1 | Price TBD | Out of stock | |
| 99 | 7662299 | SWITCH, ROTARY , 2 PIN RESISTIVE | 1 | Price TBD | Out of stock | |
| 100 | 3234755 | PLUG, M18 X 1.5 | 1 | Price TBD | Out of stock | |
| 101 | 3234851 | SEAL, TRIPLE LIP VITON HELIX 30 X 47 | 1 | Price TBD | Out of stock | |
| 102 | 3235052 | SEAL, TRIPLE LIP, VITON HELIX 40X70X7 | 2 | Price TBD | Out of stock | |
| 103 | 3236279 | O-RING, -016 VITON | 1 | Price TBD | Out of stock | |
| 104 | 3233836 | O-RING, -012 VITON | 1 | Price TBD | Out of stock | |
| 105 | 3233828 | O-RING, -014 VITON | 1 | Price TBD | Out of stock | |
| 106 | 3234113 | SEAL, TRIPLE LIP VITON 25 X 80 X 10 | 1 | Price TBD | Out of stock |
