Schematic diagram
Polaris•Schematic assembly

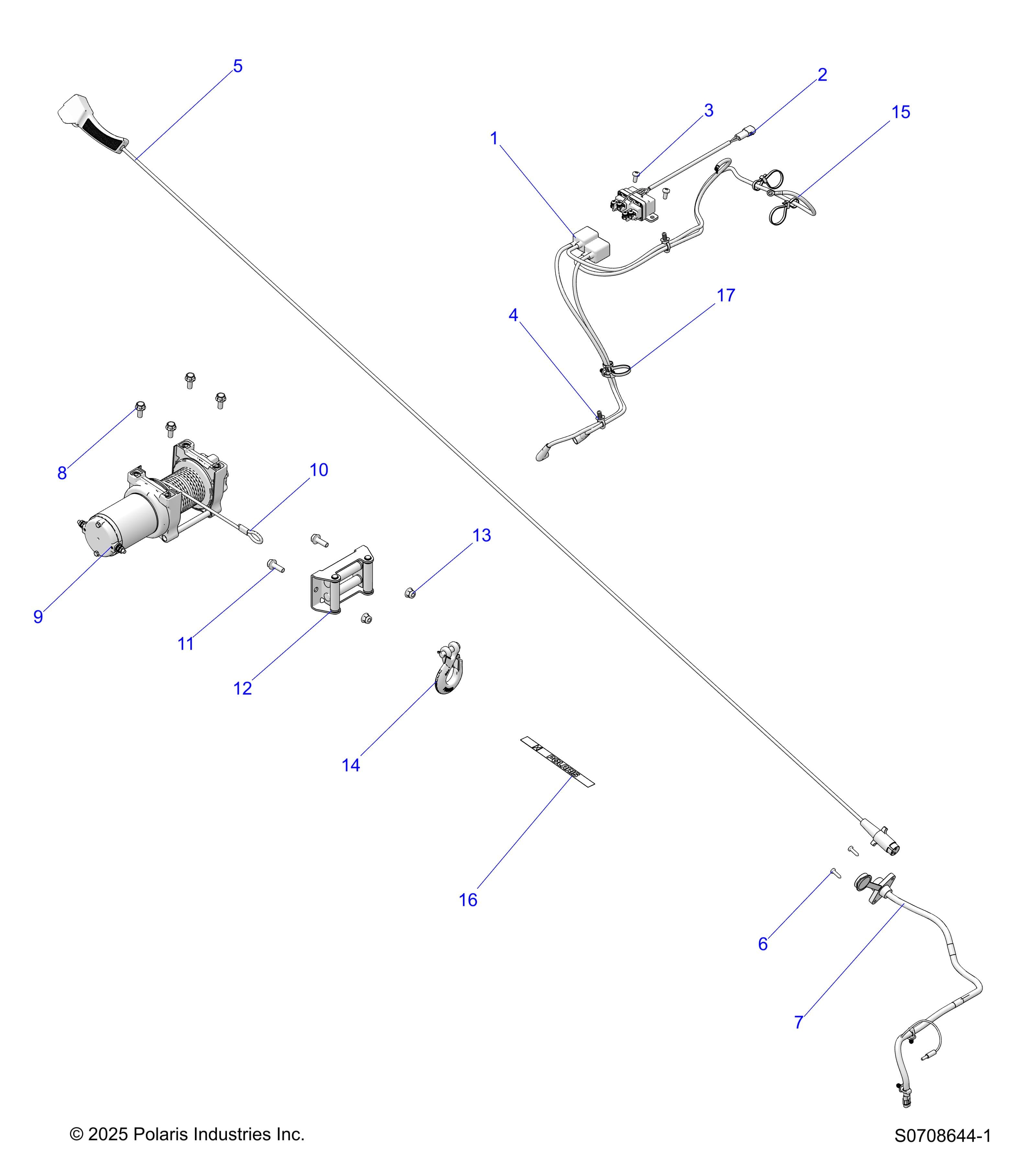

CHASSIS, WINCH
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238082
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029706 | ASM-WINCH CTCTR,RSTK [INCLUDES 2 & 15] | 1 | $79.99 | In stock | |
| 2 | 4083277 | CONTACTOR-WINCH,RSTK | 1 | $14.99 | In stock | |
| 3 | 7518914 | SCREW-M6X1X14,PN/TX,TRI-LOB | 2 | Price TBD | Out of stock | |
| 4 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 5 | Price TBD | Out of stock | |
| 5 | 4083283 | REMOTE-WINCH,WIRED,RSTK | 1 | $84.99 | In stock | |
| 6 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 2 | Price TBD | Out of stock | |
| 7 | 4083282 | SOCKET-WINCH REMOTE,RSTK | 1 | $14.99 | In stock | |
| 8 | 7519133 | SCREW-HXFL-M8X1.25X20 8.8 ZOD P3 | 4 | Price TBD | Out of stock | |
| 9 | 2639888 | ASM-WINCH [INCLUDES 9 &10] | 1 | $249.99 | In stock | |
| 9 | 2212672 | WINCH-GSER,25,TOP,AD,B0,RSTK | 1 | $199.99 | In stock | |
| 10 | 2891556 | K-CABLE,STEEL,25,RSTK | 1 | $49.99 | In stock | |
| 11 | 7521332-25 | SCR-HXFL-M8X1.25X25 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 12 | 2418346 | FAIRLEAD-WINCH,ROLLER,RSTK | 1 | $29.99 | In stock | |
| 13 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 14 | 5916663 | HOOK-WINCH,RSTK | 1 | $9.99 | In stock | |
| 15 | 4083571 | ASM-CABLE,WINCH,RSTK [INCLUDES 2 OF 4 & 17] | 1 | $39.99 | In stock | |
| 16 | 7083177 | STRAP-WINCH HOOK,POL,BLUE | 1 | Price TBD | Out of stock | |
| 17 | 7081033 | CABLE-TIE,7-46MM,DUAL-LOOP | 3 | Price TBD | Out of stock |
