Polaris•Schematic assembly

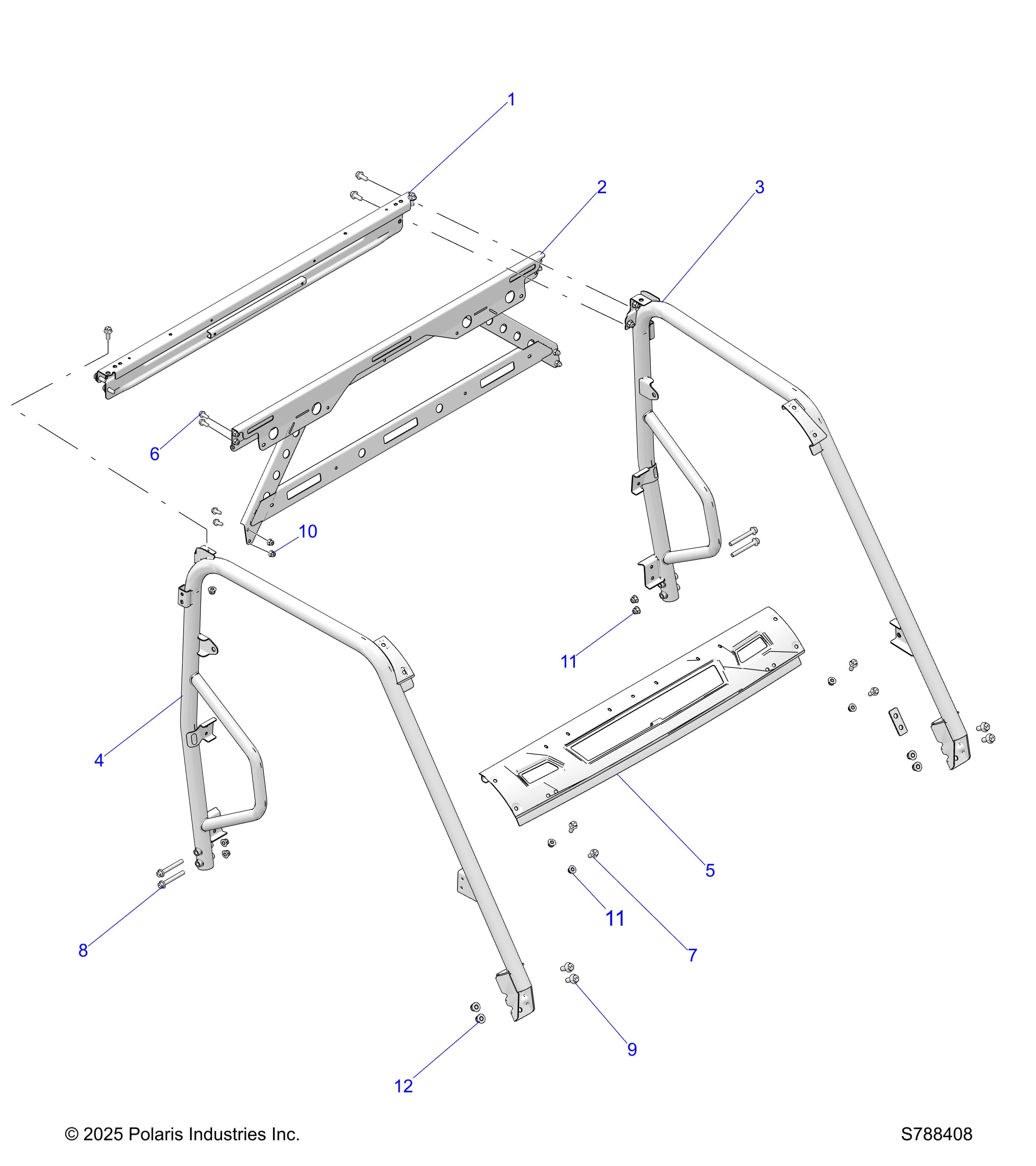

CHASSIS, CAB FRAME
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 238081
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1021194-458 | WELD-CAB SUPPORT,REAR,M.BLK | 1 | $184.99 | In stock | |
| 2 | 1028516-458 | WELD-CAB FRAME,LWR,REAR,M.BLK | 1 | $429.99 | In stock | |
| 3 | 1029507-458 | WELD-CAB FRAME,LH,BLK | 1 | $529.99 | In stock | |
| 4 | 1029508-458 | WELD-CAB FRAME,RH,BLK | 1 | $529.99 | Out of stock Est. Aug 7, 2026 | |
| 5 | 5258471-458 | PLATE-WINDSHIELD MNT ROPS,BLK | 1 | $154.99 | In stock | |
| 6 | 7521332-20 | SCR-HXFL-M8X1.25X20 10.9 ZFB | 8 | Price TBD | Out of stock | |
| 7 | 7521333-25 | SCR-HXFL-M10X1.5X25 10.9 ZFB | 10 | Price TBD | Out of stock | |
| 8 | 7521333-85 | SCR-HXFL-M10X1.5X85 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 9 | 7521334-30 | SCR-HXFL-M12X1.75X30 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 10 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 8 | Price TBD | Out of stock | |
| 11 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 8 | Price TBD | Out of stock | |
| 12 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 4 | Price TBD | Out of stock |
