Polaris•Schematic assembly

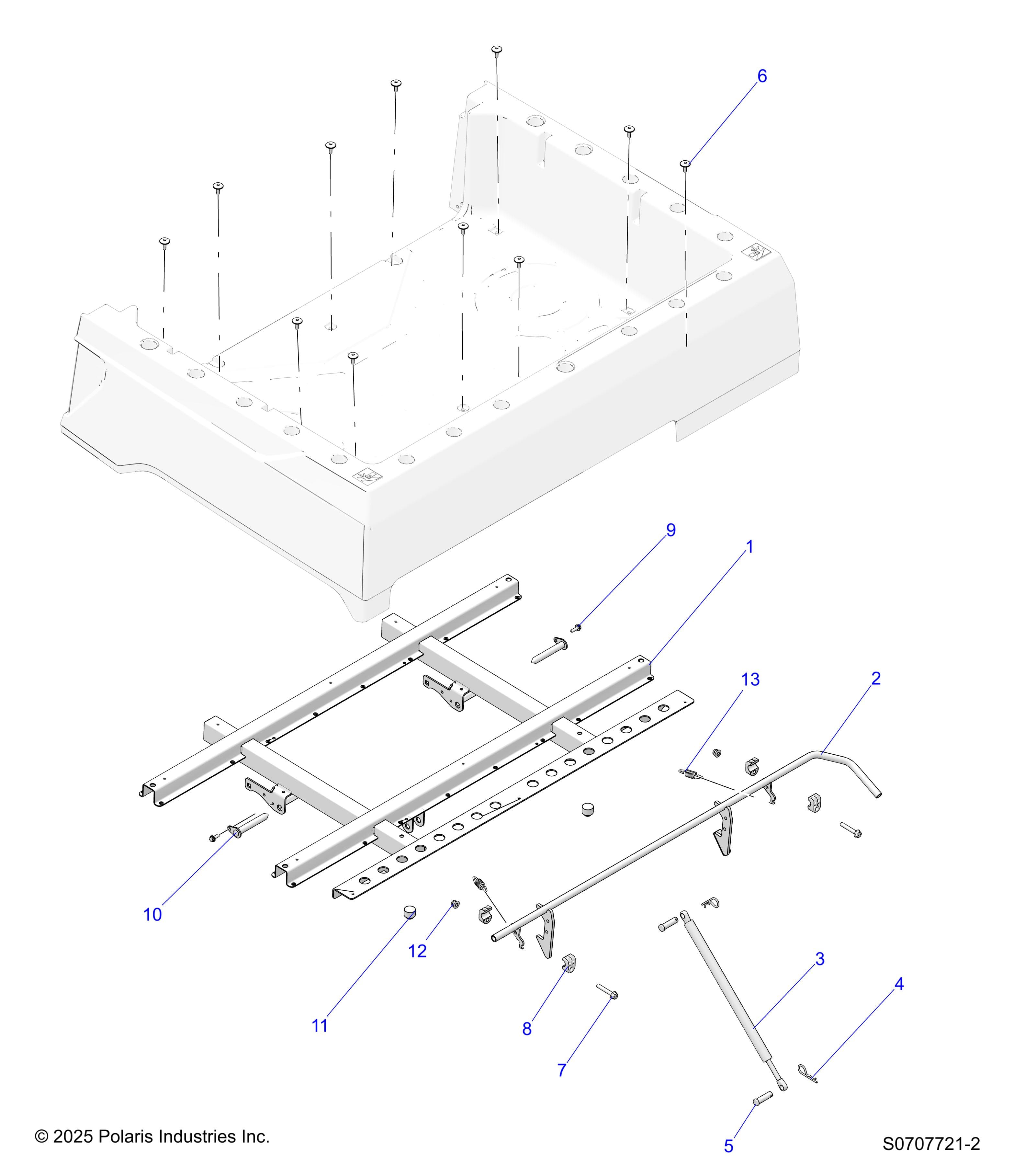

BODY, BOX MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 237844
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1029583-329 | WELD-BOX SUPPORT,BLK | 1 | $314.99 | Out of stock Est. Sep 23, 2026 | |
| 2 | 1019120-458 | LATCH, DOUBLE, MATTE BLACK | 1 | $234.99 | In stock | |
| 3 | 7046079 | SHOCK-BOX,DUMP,SM,SINGLE | 1 | $69.99 | Out of stock Est. Jul 27, 2026 | |
| 4 | 7661067 | CLIP-HITCHPIN .148X3 1/16 | 2 | Price TBD | Out of stock | |
| 5 | 7661878 | PIN-CLEVIS,1/2 X 1 3/4 | 2 | Price TBD | Out of stock | |
| 6 | 7528020 | SCR-TXTH-M6X1.0X25 TAP ZFB | 11 | Price TBD | Out of stock | |
| 7 | 7521332-50 | SCR-HXFL-M8X1.25X50 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 8 | 5434226 | BUSHING-BOX,LATCH | 4 | Price TBD | Out of stock | |
| 9 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 10 | 1016695-329 | WELD-PIN,BOX HINGE,BLK | 2 | $12.99 | In stock | |
| 11 | 5411435 | BUMPER-RUBBER,.62 STEALTH | 2 | $3.99 | In stock | |
| 12 | 7548028 | NUT-HXFL-M8X1.25 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 13 | 7041687 | SPRING-EXHAUST | 2 | Price TBD | Out of stock |
