Schematic diagram
Polaris•Schematic assembly

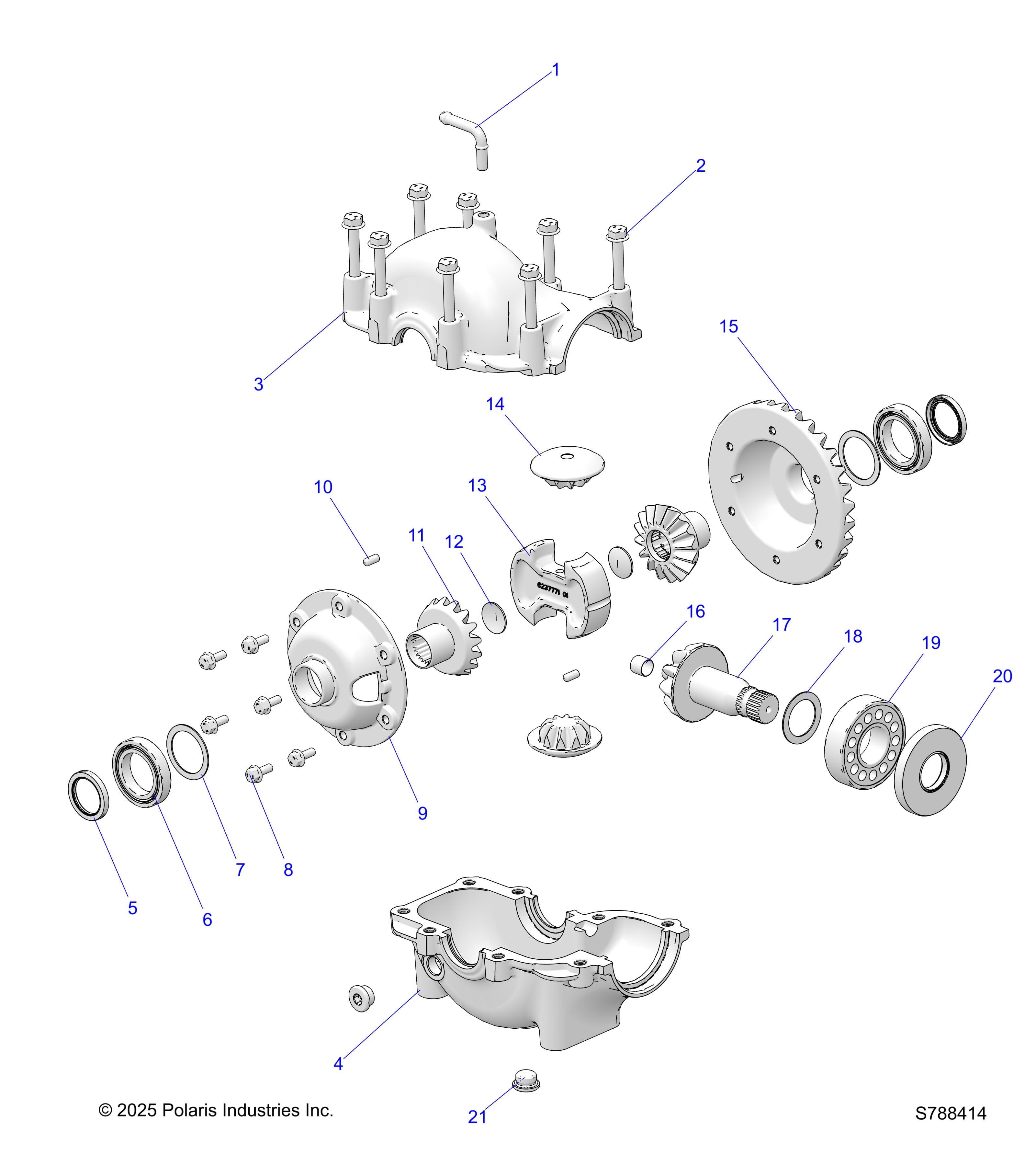

DRIVE TRAIN, FRONT GEARCASE INTERNALS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 RANGER 500 Assembly ID: 237832
Vehicle Compatibility
- 2026 Polaris RANGER 500
Checkout Note
Please note that 3 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1337392 | ASM-GEARCASE,FRONT | 1 | $1,049.99 | In stock | |
| 1 | 5346998 | TUBE-VENT,90 | 1 | $39.99 | In stock | |
| 2 | 3239937 | SCR-HXFL-M8X1.25X55 10.9 | 8 | $3.99 | In stock | |
| 3 | 5639839 | HSG-CVR,MACH | 1 | $104.99 | In stock | |
| 4 | 5639838 | HSG-CASE,MACH | 1 | $114.99 | In stock | |
| 5 | 3610424 | SEAL-TC,30X40X5 | 2 | $7.99 | In stock | |
| 6 | 3515047 | BEARING-BALL,35X55X10,6907 | 2 | $19.99 | Out of stock | |
| 7 | 5276215 | SHIM,35X45 | 2 | $2.99 | In stock | |
| 8 | 3239938 | SCR-HXFL-M6X1.0X16 10.9 | 6 | $3.99 | In stock | |
| 9 | 6237774 | HSG-CVR,DIFF | 1 | $99.99 | In stock | |
| 10 | 5136731 | PIN-DOWEL M6X14 | 2 | $0.99 | In stock | |
| 11 | 6237775 | GEAR-SIDE,16T | 2 | $79.99 | In stock | |
| 12 | 3610423 | SEAL-PLUG,WELCH,25.4 | 2 | $4.99 | In stock | |
| 13 | 6237771 | CAM-DIFFERENTIAL | 1 | $79.99 | In stock | |
| 14 | 6237770 | GEAR-PINION,10T | 2 | $34.99 | In stock | |
| 15 | 6237773 | GEAR-WHEEL,30T | 1 | $169.99 | In stock | |
| 16 | 3515918 | BSH-12X14X12 | 1 | $9.99 | In stock | |
| 17 | 6237772 | GEAR-PINION,10T | 1 | $129.99 | In stock | |
| 18 | 5276216 | SHIM,30X42 | 1 | $2.99 | In stock | |
| 19 | 3515917 | BEARING-BALL,30X72X19,6306R | 1 | $49.99 | Out of stock | |
| 20 | 3610425 | SEAL-TC,30X72X9 | 1 | $9.99 | In stock | |
| 21 | 7055687 | PLUG-HEX SCKT,W/O-RING,M16X1.5 | 2 | $5.99 | Out of stock Est. Nov 20, 2026 |
