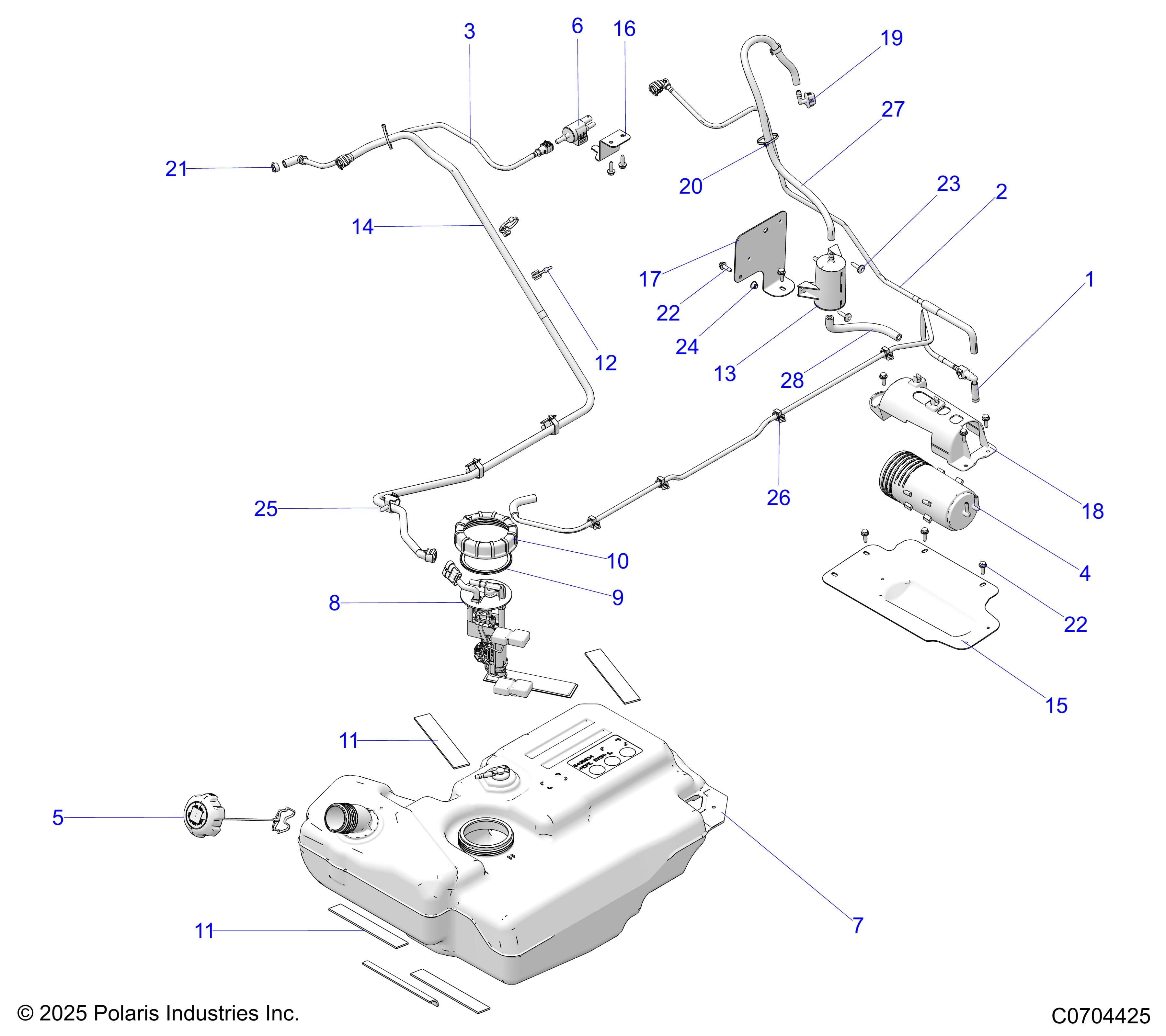

Polaris•Schematic assembly
FUEL, FUEL SYSTEM EVAP
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP 1000 PREMIUM Assembly ID: 235580
Vehicle Compatibility
- 2026 Polaris GENERAL XP 1000 PREMIUM
Checkout Note
Please note that 21 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2521864 | ASM-LINE,TANK TO CANISTER | 1 | $79.99 | In stock | |
| 2 | 2521865 | ASM-LINE,CANISTER TO PURGE | 1 | $79.99 | In stock | |
| 3 | 2521866 | ASM-LINE,PURGE TO TB | 1 | $59.99 | Out of stock | |
| 4 | 2521893 | CANISTER-ACTIVATED CARBON,BFL | 1 | Price TBD | Out of stock | |
| 5 | 2521942 | CAP-GAS TANK,TETHER,8.5 | 1 | Price TBD | Out of stock | |
| 6 | 2521964 | VALVE-PURGE | 1 | Price TBD | Out of stock | |
| 7 | 2635760 | ASM-FUEL TANK [INCLUDES 7-11] | 1 | Price TBD | Out of stock | |
| 7 | 2522064 | ASM-FUEL TANK,1000S [TO 04/22/2025] [INCLUDES 8-10] | 0 | $1,399.99 | In stock | |
| 7 | 2522759 | ASM-FUEL TANK,1000S [FROM 04/22/2025] [INCLUDES 8-10] | 1 | $1,149.99 | Out of stock Est. Oct 2, 2026 | |
| 8 | 2208121 | K-FUEL PUMP,RZR-GEN1000 [INCLUDES 9 & 10] | 1 | Price TBD | Out of stock | |
| 9 | 5413451 | GASKET-PFA,RIBBED | 1 | Price TBD | Out of stock | |
| 10 | 5437138 | NUT-MASON JAR | 1 | Price TBD | Out of stock | |
| 11 | 5810290 | PAD-BATTERY | 5 | Price TBD | Out of stock | |
| 12 | 7082401 | CLIP-EDGE,1-3MM THICKNESS | 2 | Price TBD | Out of stock | |
| 13 | 2521750 | FILTER-CANISTER VENT | 1 | Price TBD | Out of stock | |
| 14 | 2521801 | ASM-FUEL LINE | 1 | $89.99 | In stock | |
| 15 | 5264597-329 | BRKT-MNT,CANISTER,ECOAT | 1 | $44.99 | In stock | |
| 16 | 5264621-329 | BRKT-MNT, PURGE, ECOAT | 1 | $39.99 | In stock | |
| 17 | 5264647-329 | BRKT-MNT,FILTER,ECOAT | 1 | $34.99 | In stock | |
| 18 | 5453458-070 | BRKT-MNT CANISTER,BLK | 1 | Price TBD | Out of stock | |
| 19 | 5453464 | FITTING-VENT LINE,90 | 1 | Price TBD | Out of stock | |
| 20 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 2 | Price TBD | Out of stock | |
| 21 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 1 | Price TBD | Out of stock | |
| 22 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 10 | Price TBD | Out of stock | |
| 23 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 24 | 7547339 | NUT-M6X1.0, FLG-NYLOC-OLIVE D | 1 | Price TBD | Out of stock | |
| 25 | 7670109 | CLIP, ROUTING | 3 | $2.99 | In stock | |
| 26 | 7670116 | CLIP, ROUTING, .472 B.D., HINGED | 5 | Price TBD | Out of stock | |
| 27 | 8450040-62 | FUEL LINE-62 CENTIMETERS | 1 | Price TBD | Out of stock | |
| 28 | 8450131-18 | HOSE-5/16 SAE J30R7,18CM | 1 | $6.99 | In stock |
