Polaris•Schematic assembly

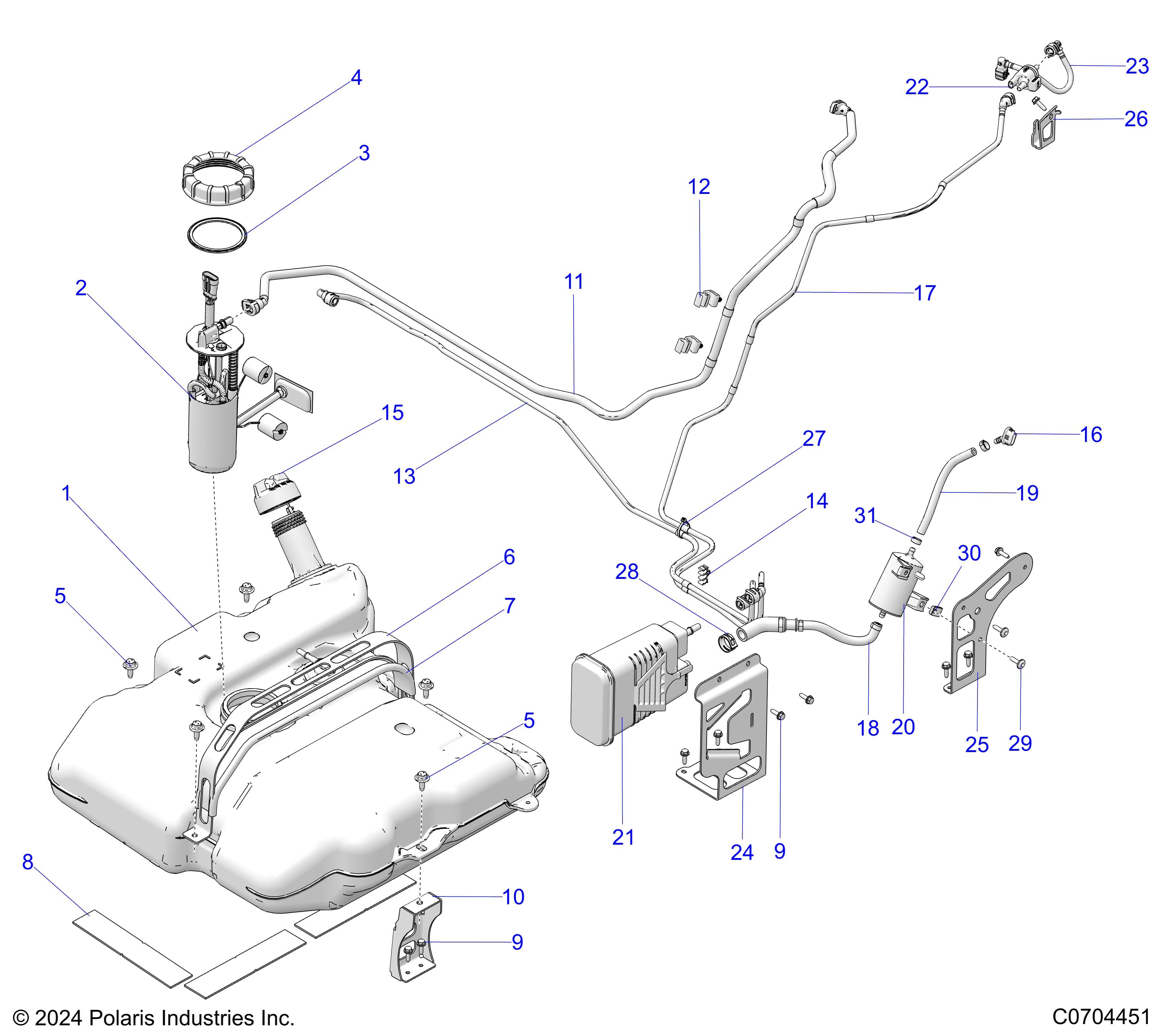

FUEL SYSTEM, EVAP FUEL TANK ASM
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 227955
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2638099 | ASM-FUEL TANK [INCLUDES 2-4] | 1 | $1,349.99 | In stock | |
| 2 | 2211819 | K-FUEL PUMP [INCLUDES 3 & 4] | 1 | $439.99 | Out of stock Est. Aug 4, 2026 | |
| 3 | 5413451 | GASKET-PFA,RIBBED | 1 | Price TBD | Out of stock | |
| 4 | 5437138 | NUT-MASON JAR | 1 | Price TBD | Out of stock | |
| 5 | 7527908 | SCR-HH-M8X1.25X25 8.8 ZTB SEMS | 5 | $7.99 | In stock | |
| 6 | 5268659-329 | BRKT-STRAP,FUEL TANK,ECOAT | 1 | $34.99 | In stock | |
| 7 | 5522367 | PAD-STRAP,RUBBER | 1 | $15.99 | In stock | |
| 8 | 5814781 | PAD-TANK,MOUNT | 4 | Price TBD | Out of stock | |
| 9 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 10 | Price TBD | Out of stock | |
| 10 | 1026945-329 | WELD-MOUNT,FUEL TANK,BLK [TO 6/15/2025] | 1 | $39.99 | In stock | |
| 10 | 1029863-329 | WELD-MOUNT,FUEL TANK,E-COAT [FROM 6/15/2025] | 1 | $39.99 | In stock | |
| 11 | 2522250 | ASM-FUEL LINE | 1 | $129.99 | In stock | |
| 12 | 7082641 | CLIP-ROUTING | 2 | Price TBD | Out of stock | |
| 13 | 2522415 | ASM-LINE,TANK TO CANISTER,2P | 1 | $119.99 | In stock | |
| 14 | 7082246 | CLIP-TRIPLE | 1 | Price TBD | Out of stock | |
| 15 | 2522316 | CAP-GAS TANK,TETHER,12 | 1 | Price TBD | Out of stock | |
| 16 | 5456372 | FITTING-VENT LINE,45 | 1 | $4.99 | In stock | |
| 17 | 2522254 | ASM-LINE,CANISTER TO PURGE | 1 | $119.99 | In stock | |
| 18 | 2522259 | ASM-LINE,VENT TO CANISTER | 1 | $109.99 | In stock | |
| 19 | 8450131-18 | HOSE-5/16 SAE J30R7,18CM | 1 | $6.99 | In stock | |
| 20 | 2521750 | FILTER-CANISTER VENT | 1 | Price TBD | Out of stock | |
| 21 | 2521786 | CANISTER-ACTIVATED CARBON | 1 | Price TBD | Out of stock | |
| 22 | 2521964 | VALVE-PURGE | 1 | Price TBD | Out of stock | |
| 23 | 2522253 | ASM-LINE,PURGE TO TB | 1 | $69.99 | In stock | |
| 24 | 5268660-329 | BRKT-MNT CANISTER,BLK | 1 | $74.99 | In stock | |
| 25 | 5270061-329 | BRKT-MNT,FILTER CANISTER,ECOAT | 1 | $24.99 | In stock | |
| 26 | 5268661-329 | BRKT-MNT PURGE VALVE,BLK | 1 | $64.99 | In stock | |
| 27 | 7080761 | CABLE-TIE,10-102MM,WEATH.-RES. | 1 | Price TBD | Out of stock | |
| 28 | 7081693 | CLAMP-SPRINGBAND 24/12 | 1 | Price TBD | Out of stock | |
| 29 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 30 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 2 | Price TBD | Out of stock | |
| 31 | 7081185 | CLAMP-HOSE,OETICKER,15.3 STPLS | 3 | $2.99 | In stock |
