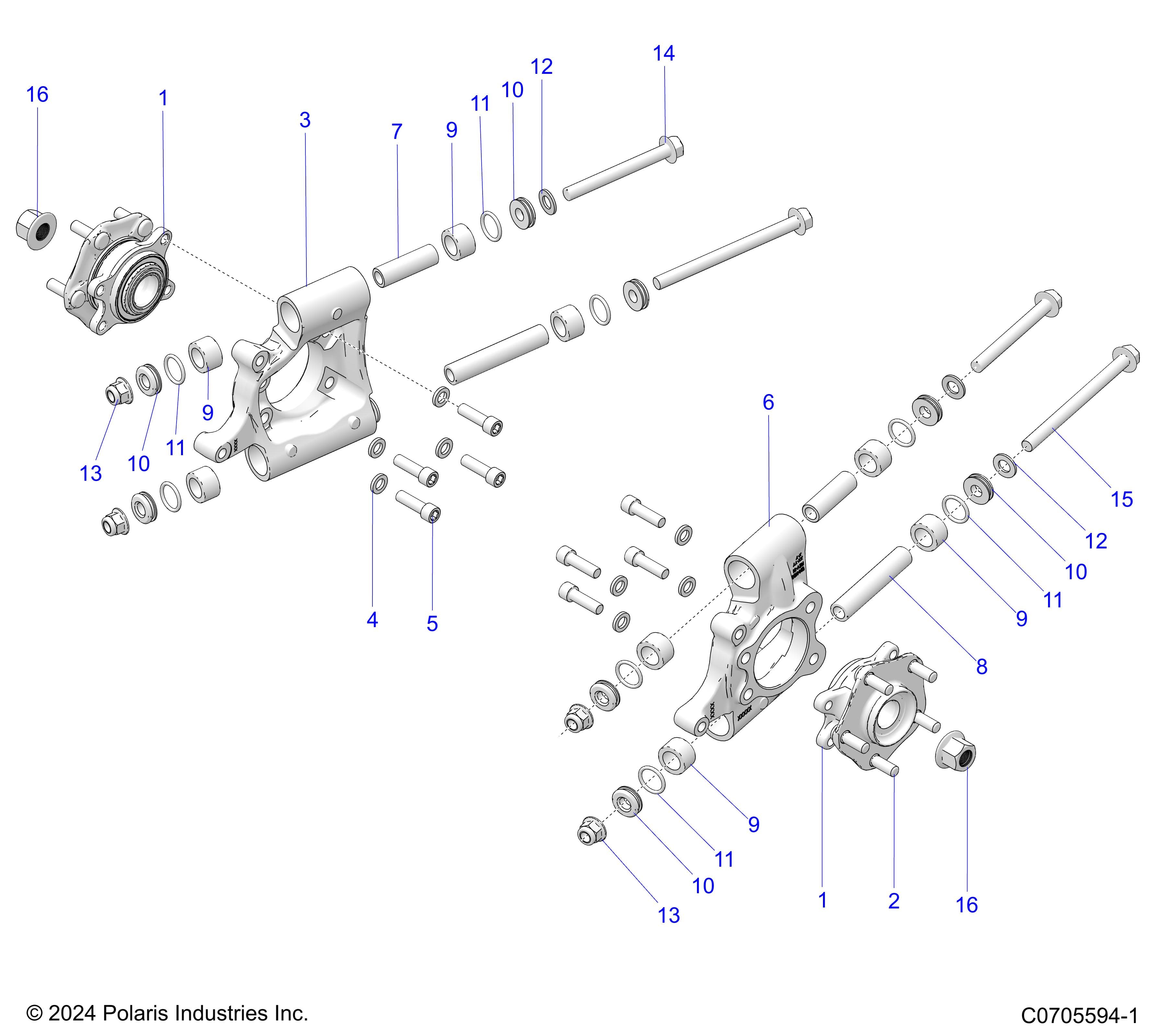

2026 POLARIS XPEDITION ADV NORTHSTAR — SUSPENSION, REAR CARRIER diagram

Schematic diagram

Polaris•Schematic assembly

SUSPENSION, REAR CARRIER

Product Description

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 227912

Vehicle Compatibility

  • 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR

Checkout Note

Please note that 17 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.

Parts in this assembly

Quantity defaults to the amount required per assembly.

#Part #DescriptionQtyPriceStock
11525346ASM-UNITIZED HUB 5X4.5 [INCLUDES STUDS]2Price TBD
Out of stock
27527823STUD-WHEEL,M12-1.510Price TBD
Out of stock
35144170CARRIER-BEARING,RH,5LUG1$124.99
In stock
47557160WSHR-22X13X3 ZFB HRD8Price TBD
Out of stock
57521356SCR-SH-M12X1.25X40 12.9 PTCH8Price TBD
Out of stock
65144169CARRIER-BEARING,LH,5LUG1$124.99
In stock
75143374SHAFT-PIVOT,14MM,69MM2$29.99
In stock
85143375SHAFT-PIVOT,14MM,120MM2$44.99
In stock
95456377BUSHING-STANDARD,SUSP,M148Price TBD
Out of stock
101545132ASM-PIVOT CAP,SEALED,M14 [INCLUDES CAP & O-RING]8Price TBD
Out of stock
105418680O-RING,2-215,RED8Price TBD
Out of stock
101545132ASM-PIVOT CAP,SEALED,M14 [INCLUDES CAP & O-RING]8Price TBD
Out of stock
105418680O-RING,2-215,RED8Price TBD
Out of stock
101545132ASM-PIVOT CAP,SEALED,M14 [INCLUDES CAP & O-RING]8Price TBD
Out of stock
105418680O-RING,2-215,RED8Price TBD
Out of stock
101545132ASM-PIVOT CAP,SEALED,M14 [INCLUDES CAP & O-RING]8Price TBD
Out of stock
105418680O-RING,2-215,RED8Price TBD
Out of stock
115143011CAP-PIVOT SEAL,M148Price TBD
Out of stock
127557237WSHR-FLAT-M14X2.5 ZTB4Price TBD
Out of stock
137548031NUT-HXFL-M14X2.0 8 ZTB NYL4Price TBD
Out of stock
147521335-125SCR-HXFL-M14X2.0X125 10.9 ZFB2$6.99
In stock
157521335-180SCR-HXFL-M14X2.0X180 10.9 ZFB2$11.99
In stock
167548051NUT-M20X1.5,FLG-LCK,ZINC,8.82Price TBD
Out of stock
