Schematic diagram
Polaris•Schematic assembly

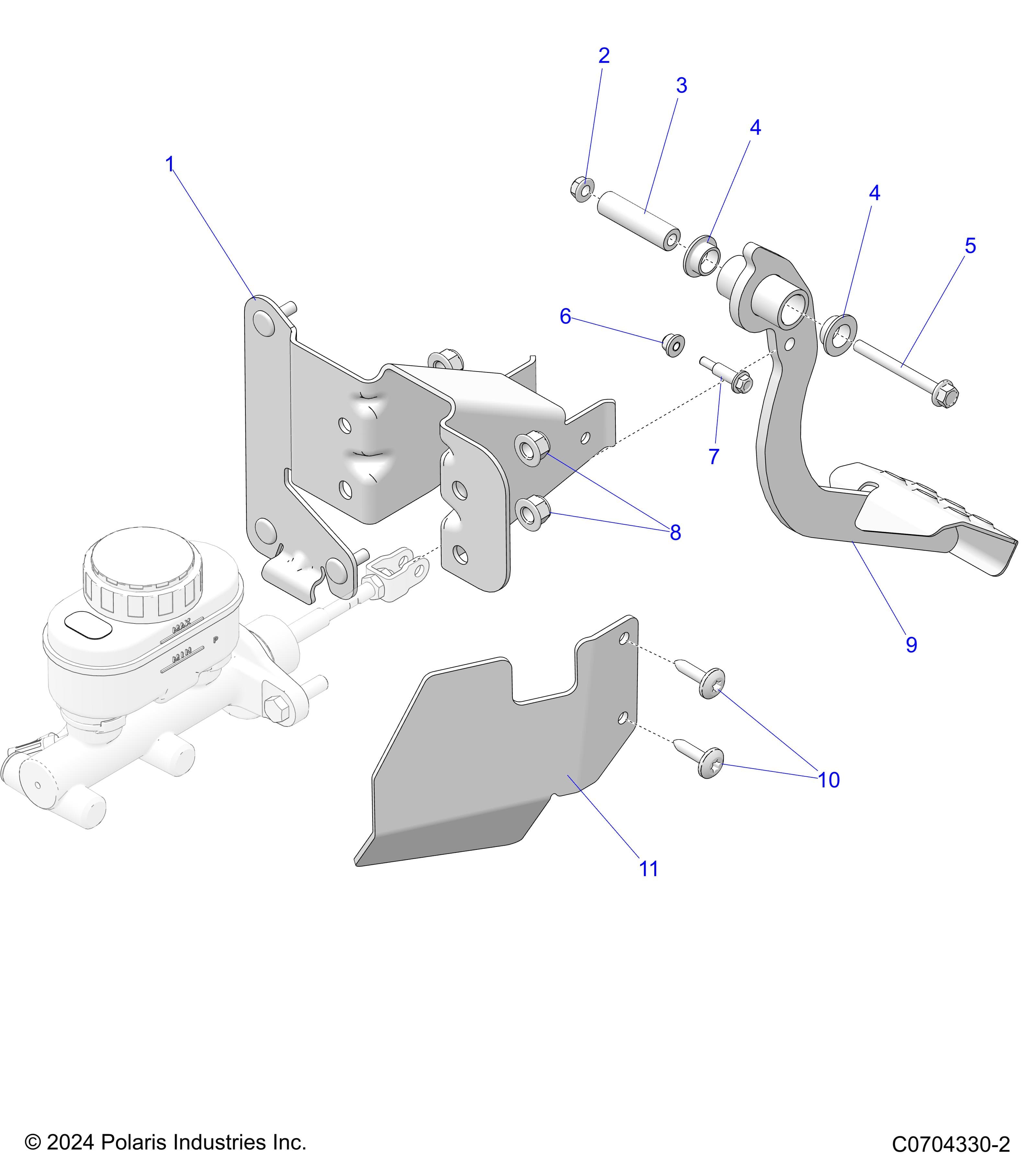

BRAKES, FOOT PEDAL
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 227803
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 8 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1025370-329 | WELD-PEDAL MNT,ECOAT | 1 | $59.99 | In stock | |
| 2 | 7547270 | NUT-HXFLGHD, M6, SERRATED | 1 | Price TBD | Out of stock | |
| 3 | 5143138 | SHAFT-PIVOT,BRAKE PEDAL ASM | 1 | Price TBD | Out of stock | |
| 4 | 5439274 | BUSHING-PEDAL PIVOT | 2 | Price TBD | Out of stock | |
| 5 | 7520723 | SCR-HXFL-M6X1X60 10.9 ZOD P30 | 1 | $4.99 | In stock | |
| 6 | 7547427 | NUT-M5X0.8 8.8 HX/FL NYLOC | 1 | Price TBD | Out of stock | |
| 7 | 7521227 | BOLT,M5X0.8X10,16.5 SHLD | 1 | Price TBD | Out of stock | |
| 8 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 4 | Price TBD | Out of stock | |
| 9 | 1025208-329 | WELD-BRAKE PEDAL,E-COAT | 1 | Price TBD | Out of stock | |
| 10 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 2 | Price TBD | Out of stock | |
| 11 | 5272811 | SHIELD-MASTER CYL | 1 | $64.99 | In stock |
