Polaris•Schematic assembly

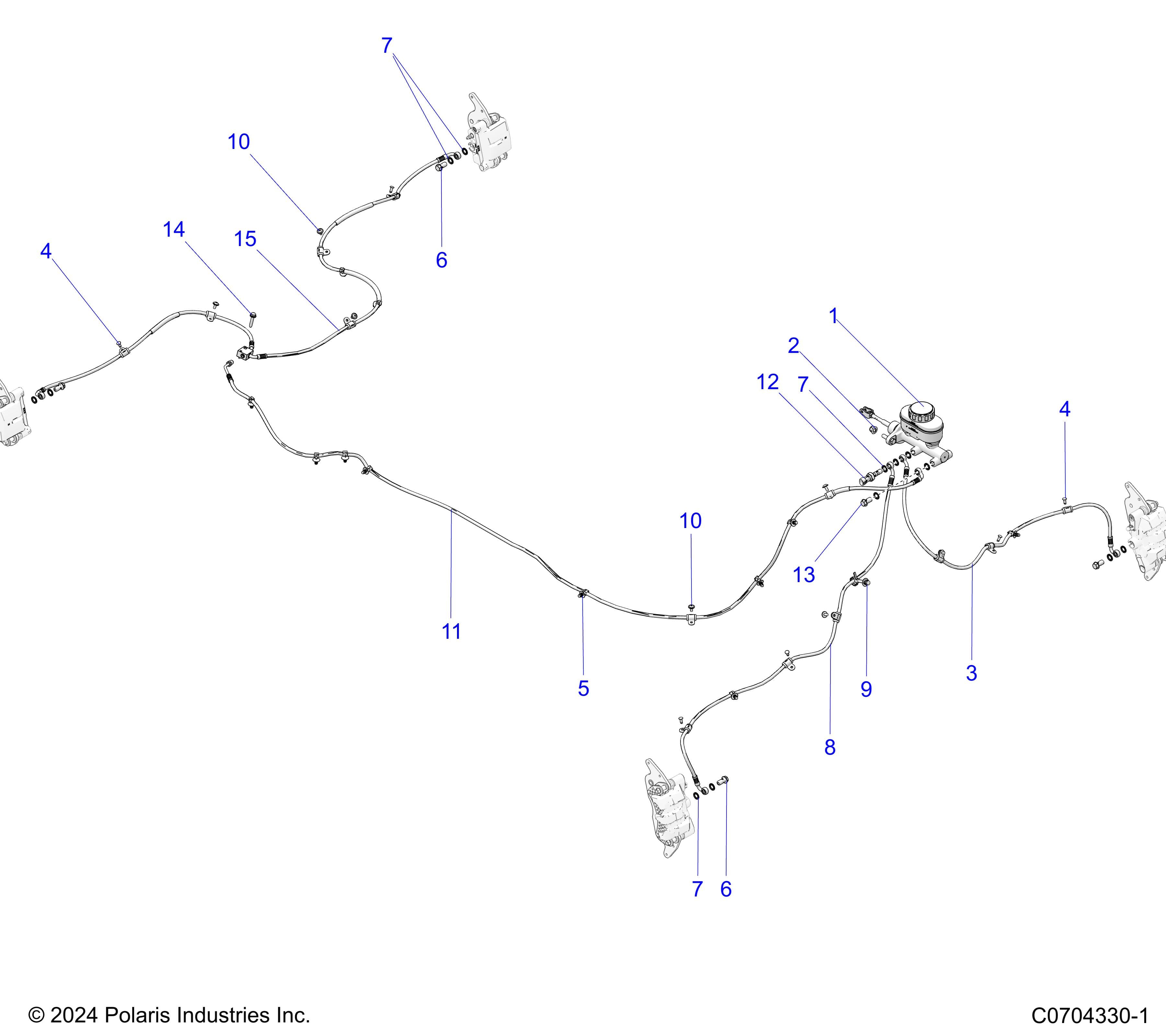

BRAKES, BRAKE LINES AND MASTER CYLINDER
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 227768
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 10 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1912822 | ASM-M/C-T-FLANGE,3/4 BORE | 1 | Price TBD | Out of stock | |
| 2 | 7547332 | NUT- M8X1.25, FLG, NYLOC-OLIVE D | 2 | Price TBD | Out of stock | |
| 3 | 1913671 | LINE-BRK,FL | 1 | $89.99 | In stock | |
| 4 | 7621432 | RIVET-POP 3/16(.126-.250)-ST-B | 6 | Price TBD | Out of stock | |
| 5 | 7662429 | CLIP-FIR TREE,HEAT-STAB | 11 | Price TBD | Out of stock | |
| 6 | 1910499 | BOLT-BANJO,10MMX1.00-6G | 4 | Price TBD | Out of stock | |
| 7 | 5413212 | SEAL-STAT-0-3/8, 70EP | 4 | Price TBD | Out of stock | |
| 8 | 1913672 | LINE-BRK,FR | 1 | $99.99 | In stock | |
| 9 | 7663027 | CLIP-FIR,TREE,25MM OFFSET | 1 | $39.99 | In stock | |
| 10 | 7512084 | SCR-10-24X1/2, PHTXTRIRD, SEMS-Y | 7 | Price TBD | Out of stock | |
| 11 | 1913675 | LINE-BRK,MCT | 1 | $139.99 | In stock | |
| 12 | 4081264 | SWITCH-BRK,M10X1.25,DBL-BANJO | 1 | Price TBD | Out of stock | |
| 13 | 1910958 | BOLT-BANJO, 10MM X 1.25-6G | 1 | Price TBD | Out of stock | |
| 14 | 7519344 | BOLT-HXFL-M6X1.0X30 RIE TAPR | 1 | Price TBD | Out of stock | |
| 15 | 1913995 | LINE-BRAKE,REAR | 1 | $174.99 | In stock |
