Polaris•Schematic assembly

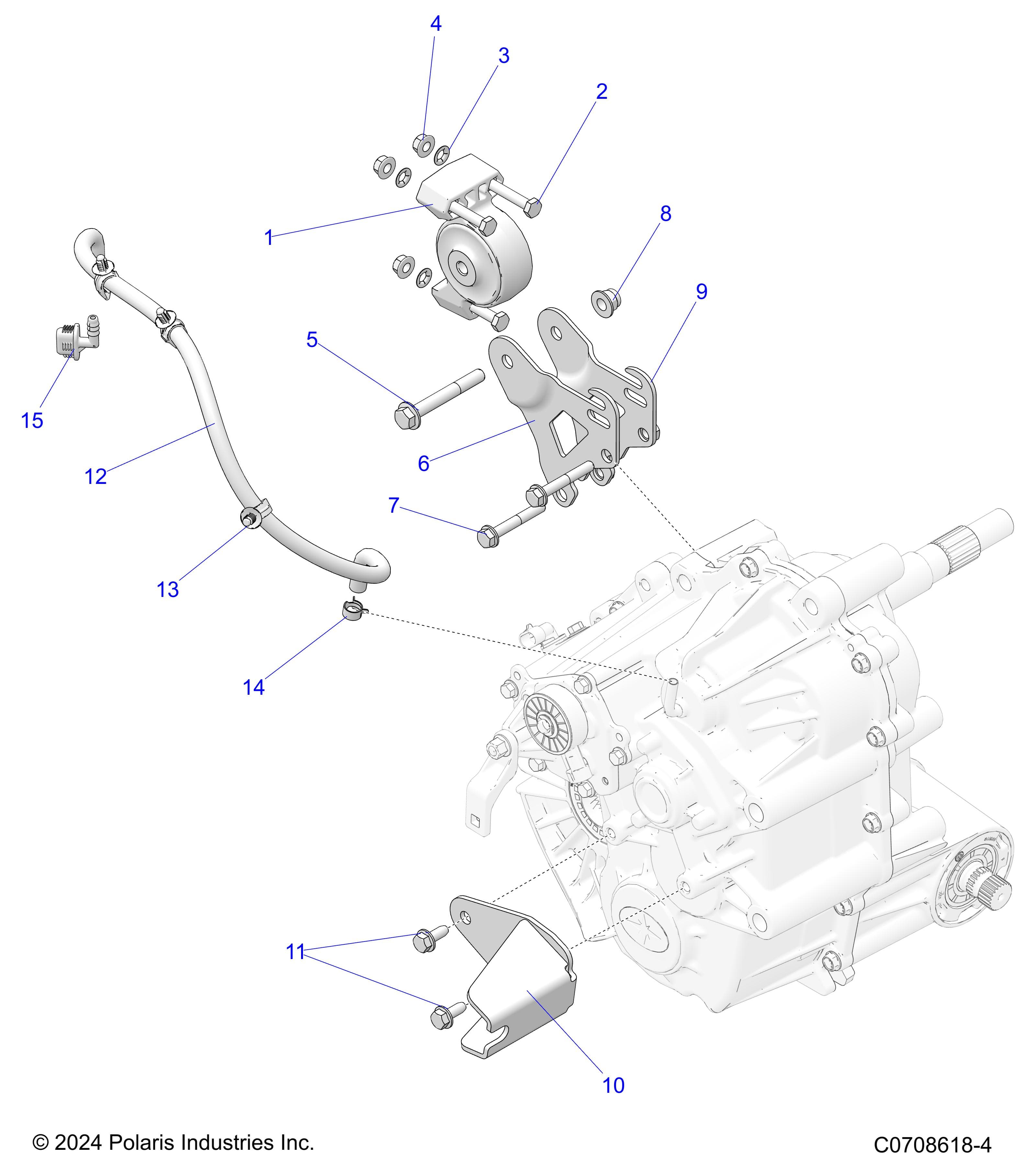

DRIVE TRAIN, MAIN GEARCASE MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 227766
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1333430 | MOUNT, ISOLATOR | 1 | Price TBD | Out of stock | |
| 2 | 7519097 | SCREW-HH M8X1.25X45 8.8 ZOD | 3 | Price TBD | Out of stock | |
| 3 | 7547030 | NUT-5/16-PAL-Y | 3 | Price TBD | Out of stock | |
| 4 | 7547839 | NUT-HXFL-M8X1.25 10 SPC | 3 | Price TBD | Out of stock | |
| 5 | 7521333-75 | SCR-HXFL-M10X1.5X75 10.9 ZFB | 1 | Price TBD | Out of stock | |
| 6 | 5273537 | BRKT-MOUNT,REAR TRANS,RH | 1 | $34.99 | In stock | |
| 7 | 7521332-55 | SCR-HXFL-M8X1.25X55 10.9 ZFB | 2 | $3.99 | In stock | |
| 8 | 7548029 | NUT-HXFL-M10X1.5 8 ZTB NYL | 1 | Price TBD | Out of stock | |
| 9 | 1028104 | WELD-MOUNT,REAR TRANS,LH | 1 | $34.99 | In stock | |
| 10 | 5268686 | BRKT-SHIFT CABLE | 1 | $49.99 | In stock | |
| 11 | 7519374 | SCR-HXFL-M10X1.25X16 8.8 ZOD N | 2 | Price TBD | Out of stock | |
| 12 | 8450040-600 | FUEL LINE-1/4 ID (SVC),600 CM [BULK] | 1 | $89.99 | In stock | |
| 13 | 5454314 | CLIP-ROUTING,12.5 | 3 | $6.99 | In stock | |
| 14 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 1 | Price TBD | Out of stock | |
| 15 | 5453464 | FITTING-VENT LINE,90 | 1 | Price TBD | Out of stock |
