Polaris•Schematic assembly

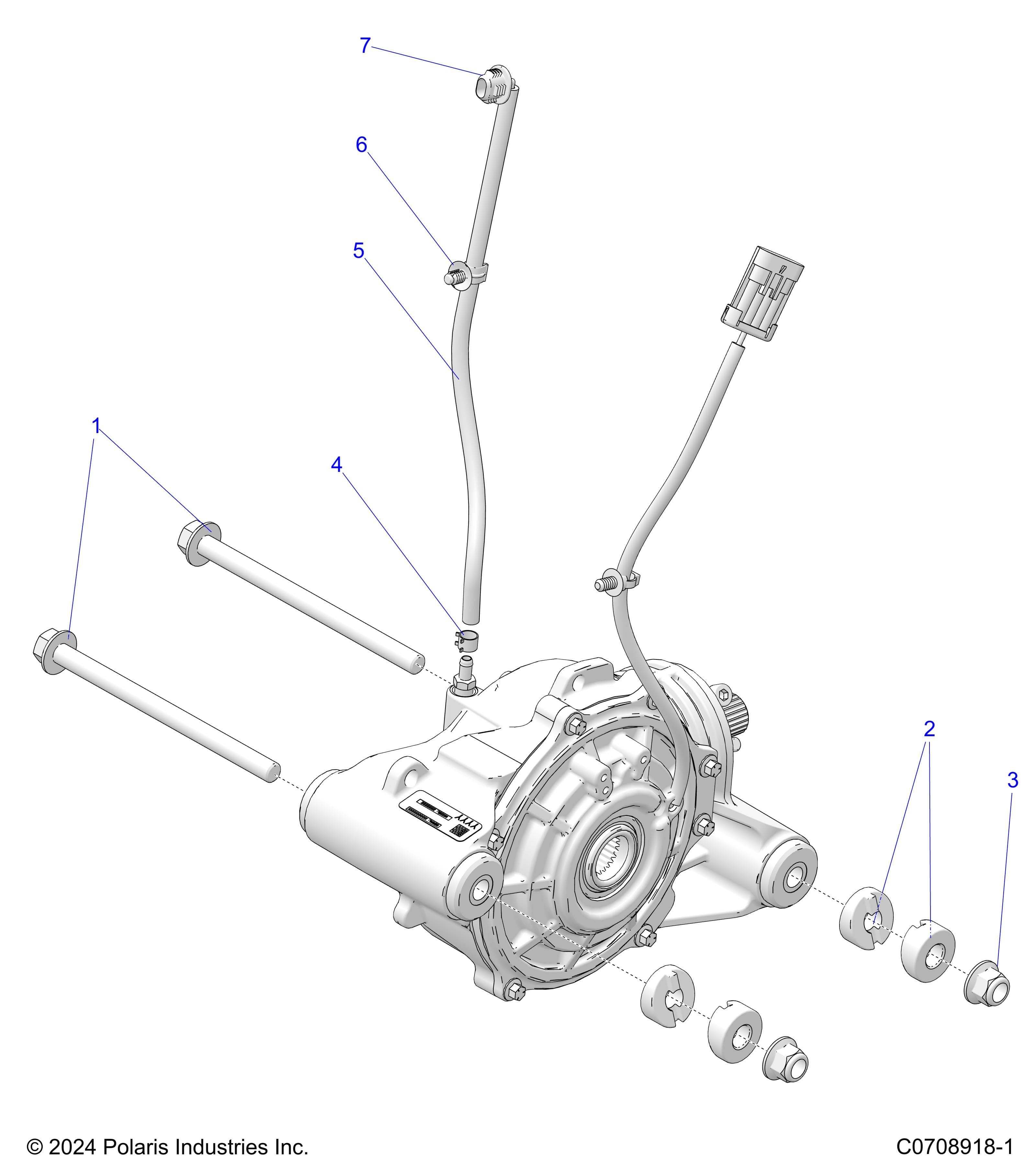

DRIVE TRAIN, FRONT GEARCASE MOUNTING
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV NORTHSTAR Assembly ID: 227758
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV NORTHSTAR
Checkout Note
Please note that 5 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1337252 | ASM-GEARCASE,FRONT [FOR INTERNAL ASM SEE DRIVETRAIN, FRONT GEARCASE] | 1 | $2,099.99 | In stock | |
| 1 | 7521334-170 | SCR-HXFL-M12X1.75X170 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 2 | 5639193 | ANCHOR-WEDGE LOCK | 4 | Price TBD | Out of stock | |
| 3 | 7548030 | NUT-HXFL-M12X1.75 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 4 | 7080307 | CLAMP-HOSE, (LARGE GREEN) | 1 | Price TBD | Out of stock | |
| 5 | 8450153-32 | LINE-BOOST,3/16 ID,32 CM | 1 | $7.99 | In stock | |
| 6 | 7082542 | CLIP-FIR TREE,6-9MM,HEAT | 1 | $4.99 | In stock | |
| 7 | 5454069 | FITTING-VENT LINE,90 | 1 | Price TBD | Out of stock |
