Schematic diagram
Polaris•Schematic assembly
ENGINE, COOLING
Product Description

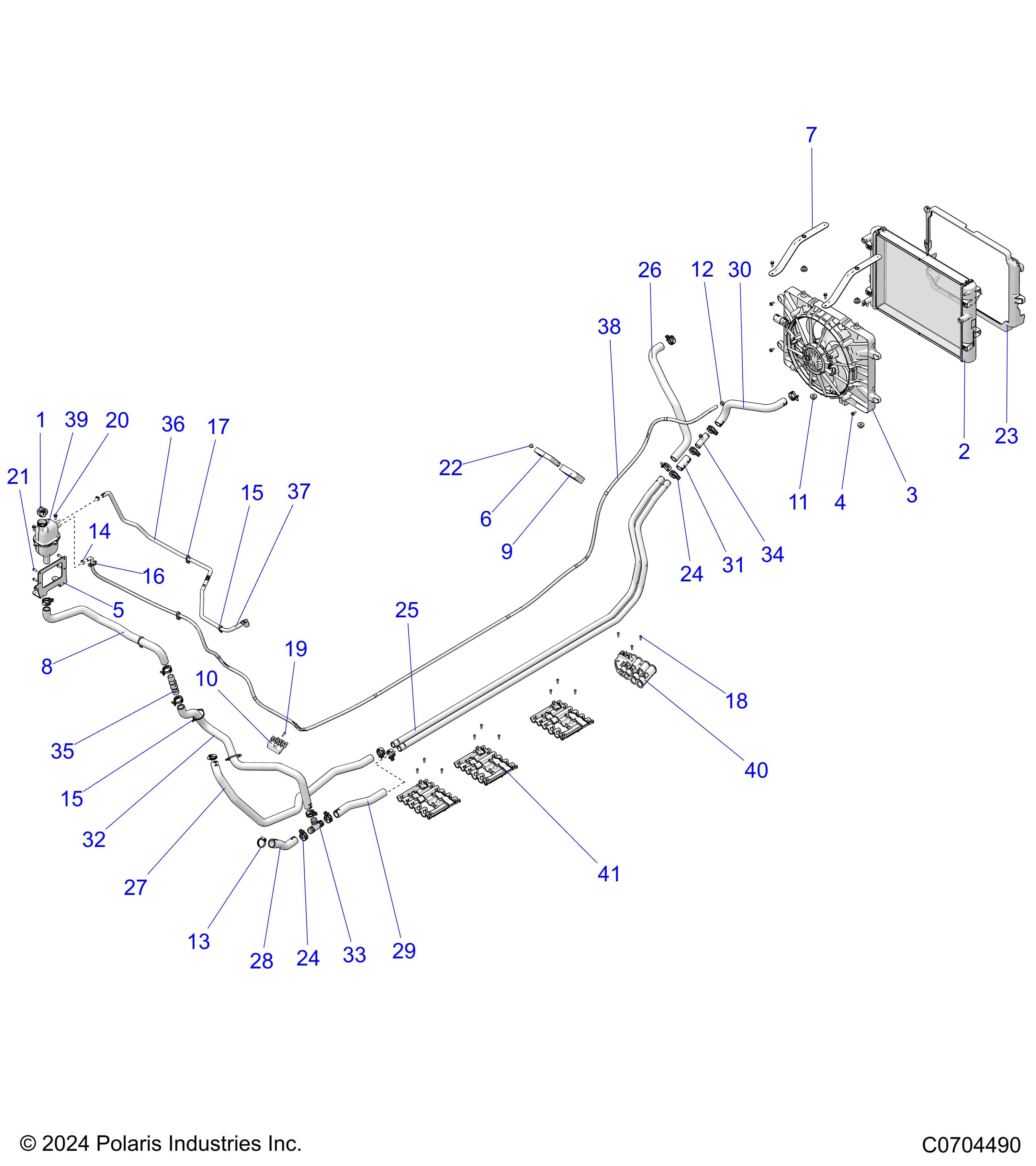

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 227644
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 21 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1241379 | CAP-PRESSURE | 1 | Price TBD | Out of stock | |
| 2 | 1241447 | ASM-RADIATOR,CORE,HVAC | 1 | $619.99 | In stock | |
| 3 | 2415296 | FAN-ASSEMBLY,HVAC | 1 | $629.99 | In stock | |
| 4 | 7518591 | SCREW-HXFL-M6X1.0X16 8.8 ZPB | 4 | Price TBD | Out of stock | |
| 5 | 5269295-329 | BRKT-COOLANT BOTTLE,BLK | 1 | $34.99 | In stock | |
| 6 | 5269611-329 | BRKT-ROUTING GROMMET,BLK | 1 | $11.99 | In stock | |
| 7 | 5269919-329 | BRKT-RADIATOR MOUNT,HVAC,ECOAT | 1 | $12.99 | In stock | |
| 8 | 5418142 | HOSE-BOTTLE TO SPLICE,ADV | 1 | $44.99 | In stock | |
| 9 | 5418786 | GROMMET-ROUTING | 1 | $34.99 | In stock | |
| 10 | 5458510 | CLIP-ROUTING,COOLANT-VENT | 1 | $4.99 | In stock | |
| 11 | 7052028 | GROMMET-FLANGED,.36X.56X1.06 | 4 | Price TBD | Out of stock | |
| 12 | 7080003 | HOSE CLAMP, RED | 1 | Price TBD | Out of stock | |
| 13 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | Price TBD | Out of stock | |
| 14 | 7081432 | CLAMP-HOSE, 17/32, GREEN | 2 | Price TBD | Out of stock | |
| 15 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 3 | Price TBD | Out of stock | |
| 16 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 1 | Price TBD | Out of stock | |
| 17 | 7082073 | STRAP-CABLE TIEW/EDGECLIP3-6MM | 3 | Price TBD | Out of stock | |
| 18 | 7512026 | SCREW-#10X3/4-HI/LO-PN-T25,TRX-M | 12 | Price TBD | Out of stock | |
| 19 | 7518238 | SCREW-10X5/8-HI/LO,PN-T25,TRX-M | 1 | Price TBD | Out of stock | |
| 20 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 4 | Price TBD | Out of stock | |
| 21 | 7518548 | SCREW-HXFL-M6X1.0X16 8.8 ZY3 | 4 | Price TBD | Out of stock | |
| 22 | 7518936 | SCR-M6X1X16 TR/TX-M | 1 | Price TBD | Out of stock | |
| 23 | 5456828 | SHROUD-RADIATOR,HVAC | 1 | $54.99 | In stock | |
| 24 | 7082308 | SPRINGBAND-CLAMP,BLK | 14 | Price TBD | Out of stock | |
| 25 | 5347090 | TUBE-COOLANT,1" MP | 2 | Price TBD | Out of stock | |
| 26 | 5417280 | HOSE-UPPER, RADIATOR,HVAC | 1 | $54.99 | In stock | |
| 27 | 5418807 | HOSE-ENGINE OUTLET | 1 | $54.99 | In stock | |
| 28 | 5417283 | HOSE-ENG INLET,REAR | 1 | $34.99 | In stock | |
| 29 | 5417321 | HOSE-ENG INLET,FRT | 1 | $34.99 | In stock | |
| 30 | 5417455 | HOSE-COOLANT,HVAC,TEE,UPPER | 1 | $34.99 | In stock | |
| 31 | 5417456 | HOSE-COOLANT,HVAC,TEE,LOWER | 1 | $7.99 | In stock | |
| 32 | 5418141 | HOSE-SPLICE TO TEE | 1 | $39.99 | In stock | |
| 33 | 7052373 | CONNECTOR-TEE,1",1",1" BARBED | 1 | Price TBD | Out of stock | |
| 34 | 7052530 | CONNECTOR-TEE,1X1X0.5 | 1 | Price TBD | Out of stock | |
| 35 | 7055611 | CONNECTOR-1" SPLICE,BARBED | 1 | $5.99 | In stock | |
| 36 | 1244796 | ASM-COOLANT HOSE,VENTED [INCLUDES 37] | 1 | $69.99 | In stock | |
| 36 | 5417981 | HOSE-COOLANT,FITTING TO SPLICE | 1 | $29.99 | NLA | |
| 37 | 5418542 | HOSE-COOLANT,FITTING TO SPLICE | 1 | $15.99 | Out of stock | |
| 38 | 2522428 | ASM-VENT LINE,MP | 1 | $54.99 | In stock | |
| 39 | 1244655 | ASM-TANK,SURGE | 1 | Price TBD | Out of stock | |
| 40 | 5465649-070 | TRAY-ROUTING,FRONT,BLK | 1 | $34.99 | In stock | |
| 41 | 5465540-070 | TRAY-ROUTING,RH,BLK | 3 | $29.99 | In stock |
