Polaris•Schematic assembly

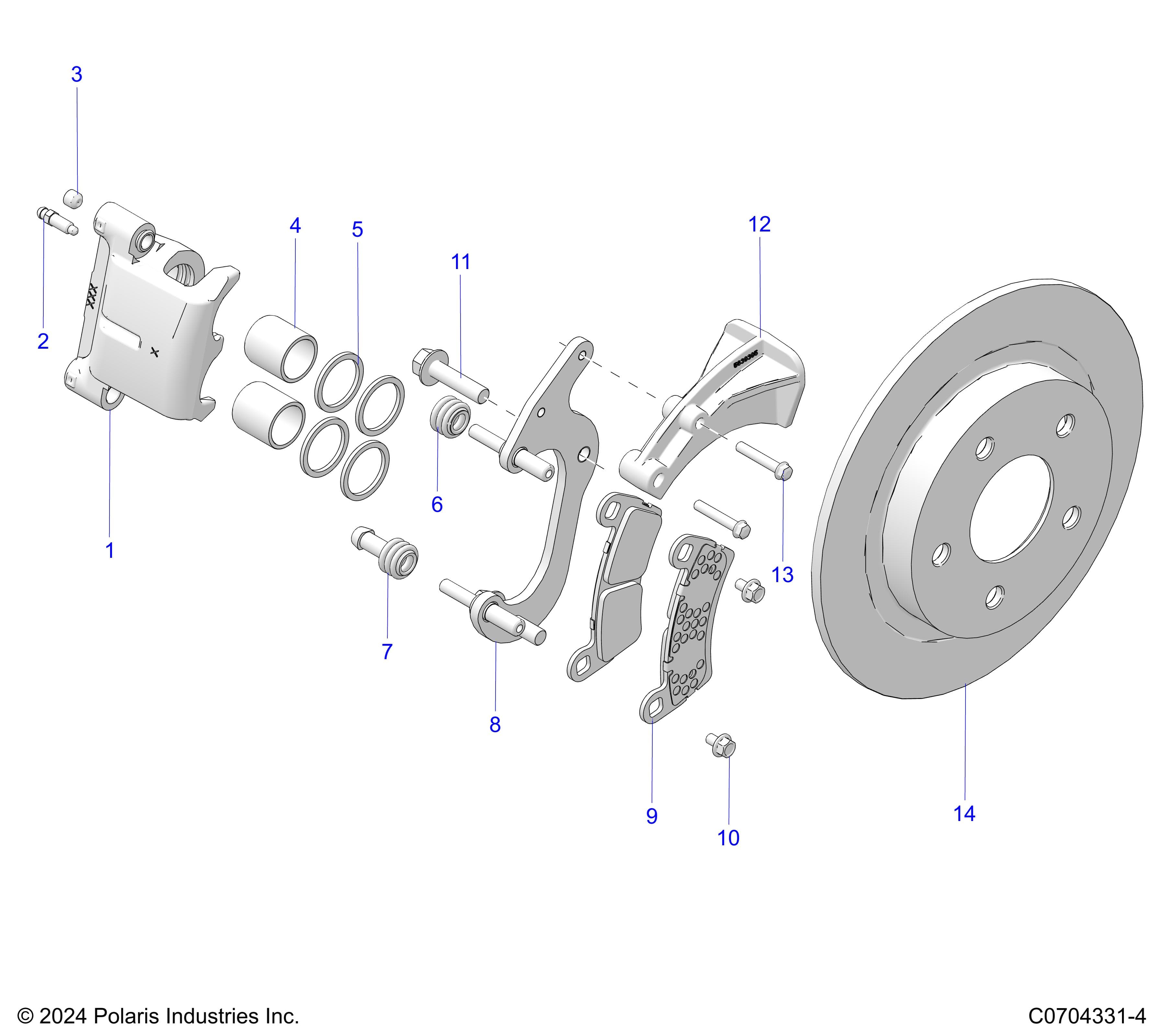

BRAKES, REAR CALIPER
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 227193
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 7 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1914319 | ASM-BRK-CAL-RL-30X30,SS [INCLUDES 1-10] | 1 | $309.99 | In stock | |
| 1 | 1914320 | ASM-BRK-CAL-RR-30X30,SS [INCLUDES 1-10] | 1 | $309.99 | In stock | |
| 2 | 7082848 | SCR-M7X1.0,BLEEDER | 1 | $3.99 | In stock | |
| 3 | 7518863 | SCR-M10X1.0X8,SOC SET-OD | 1 | Price TBD | Out of stock | |
| 4 | 5139188 | PISTON-CLPR,1.188",SS 303 | 2 | Price TBD | Out of stock | |
| 5 | 5418198 | SQ RING-MOLDED(30.2X2.6X3.4) | 4 | $4.99 | In stock | |
| 6 | 5412506 | BOOT-PIN SEAL | 1 | Price TBD | Out of stock | |
| 7 | 5412505 | BOOT-PIN BUSHING | 1 | Price TBD | Out of stock | |
| 8 | 1914183 | ASM-CALIPER,MNT-WT,99.82,LH | 1 | $54.99 | In stock | |
| 8 | 1914184 | ASM-CALIPER,MNT-WT,99.82,RH | 1 | $54.99 | In stock | |
| 9 | 2209964 | K-ASM,PAD,BRAKE | 2 | $29.99 | In stock | |
| 10 | 7528157 | SCR-HXFL-M6X1.0X10 8.8 ZF | 2 | Price TBD | Out of stock | |
| 11 | 7519254 | SCR-HXFL-M10X1.25X40 ZOD NYL | 2 | $7.99 | In stock | |
| 12 | 5639395 | SCRAPER-BRAKE,REAR | 1 | $13.99 | In stock | |
| 13 | 7519280 | SCR-HXFL-M6X1.0X35, W/PATCHLOK | 2 | Price TBD | Out of stock | |
| 14 | 1914169 | ROTOR-BRK,262OD,7.5T,26OFST | 1 | Price TBD | Out of stock |
