Schematic diagram
Polaris•Schematic assembly

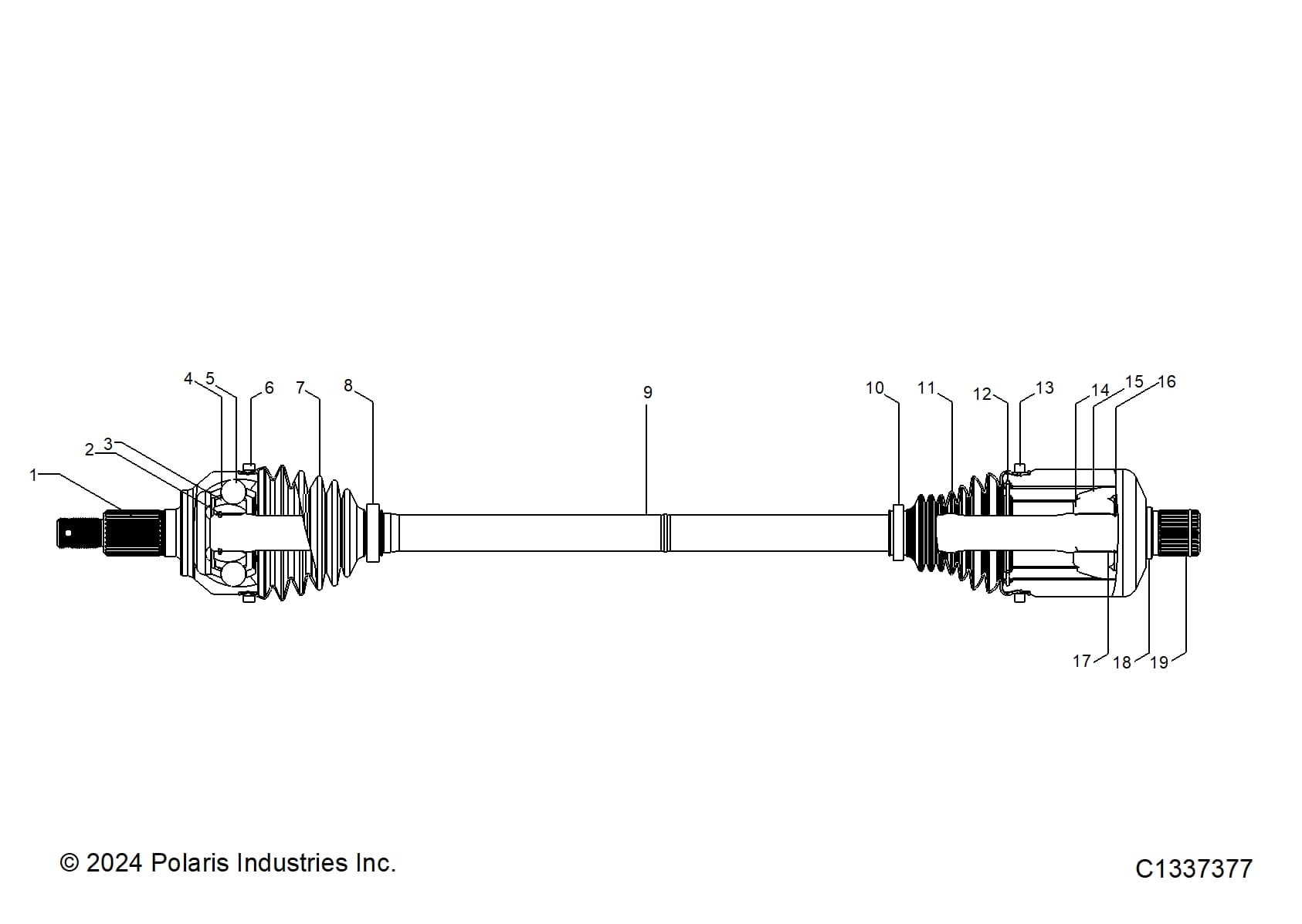

DRIVE TRAIN, FRONT HALF SHAFT
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 227156
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 28 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 2211716 | K-HALFSHAFT,FRONT [INCLUDES ALL] | 1 | Price TBD | Out of stock | |
| - | 3236705 | OUTER JOINT [INCLUDES 1 & 3-5] | 1 | Price TBD | Out of stock | |
| - | 3236707 | BOOT KIT OUTER [INCLUDES 6-8] | 1 | Price TBD | Out of stock | |
| - | 3239359 | BAR [INCLUDES 2, 9 16] | 1 | Price TBD | Out of stock | |
| - | 3239357 | K-INNER BOOT [INCLUDES 10, 11 & 13] | 1 | Price TBD | Out of stock | |
| - | 3239360 | INNER JOINT [INCLUDES 12, 14, 15, 17-19] | 1 | Price TBD | Out of stock | |
| - | 2208329 | SNAP RING [INCLUDES 19] | 1 | Price TBD | Out of stock | |
| - | 3236756 | CIRCLIP [INCLUDES 2 & 16] | 1 | Price TBD | Out of stock | |
| - | 5418014 | O-RING,28.17X3.53,VITON,60A | 1 | Price TBD | Out of stock | |
| 1 | ------- | OUTER RACE | 1 | Price TBD | Out of stock | |
| 2 | ------- | SNAP RING | 1 | Price TBD | Out of stock | |
| 3 | ------- | INNER RACE | 1 | Price TBD | Out of stock | |
| 4 | ------- | CAGE | 1 | Price TBD | Out of stock | |
| 5 | ------- | BALL | 6 | Price TBD | Out of stock | |
| 6 | ------- | BAND | 1 | Price TBD | Out of stock | |
| 7 | ------- | BOOT-BJ | 1 | Price TBD | Out of stock | |
| 8 | ------- | BAND | 1 | Price TBD | Out of stock | |
| 9 | ------- | DRIVE SHAFT | 1 | Price TBD | Out of stock | |
| 10 | ------- | BAND | 1 | Price TBD | Out of stock | |
| 11 | ------- | BOOT-DOJ | 1 | Price TBD | Out of stock | |
| 12 | ------- | RETAINING RING | 1 | Price TBD | Out of stock | |
| 13 | ------- | BAND | 1 | Price TBD | Out of stock | |
| 14 | ------- | INNER RACE | 1 | Price TBD | Out of stock | |
| 15 | ------- | BALL | 6 | Price TBD | Out of stock | |
| 16 | ------- | CIRCLIP | 1 | Price TBD | Out of stock | |
| 17 | ------- | CAGE | 1 | Price TBD | Out of stock | |
| 18 | ------- | HOUSING | 1 | Price TBD | Out of stock | |
| 19 | ------- | SNAP RING | 1 | Price TBD | Out of stock |
