DRIVE TRAIN, FRONT GEARCASE
Product Description

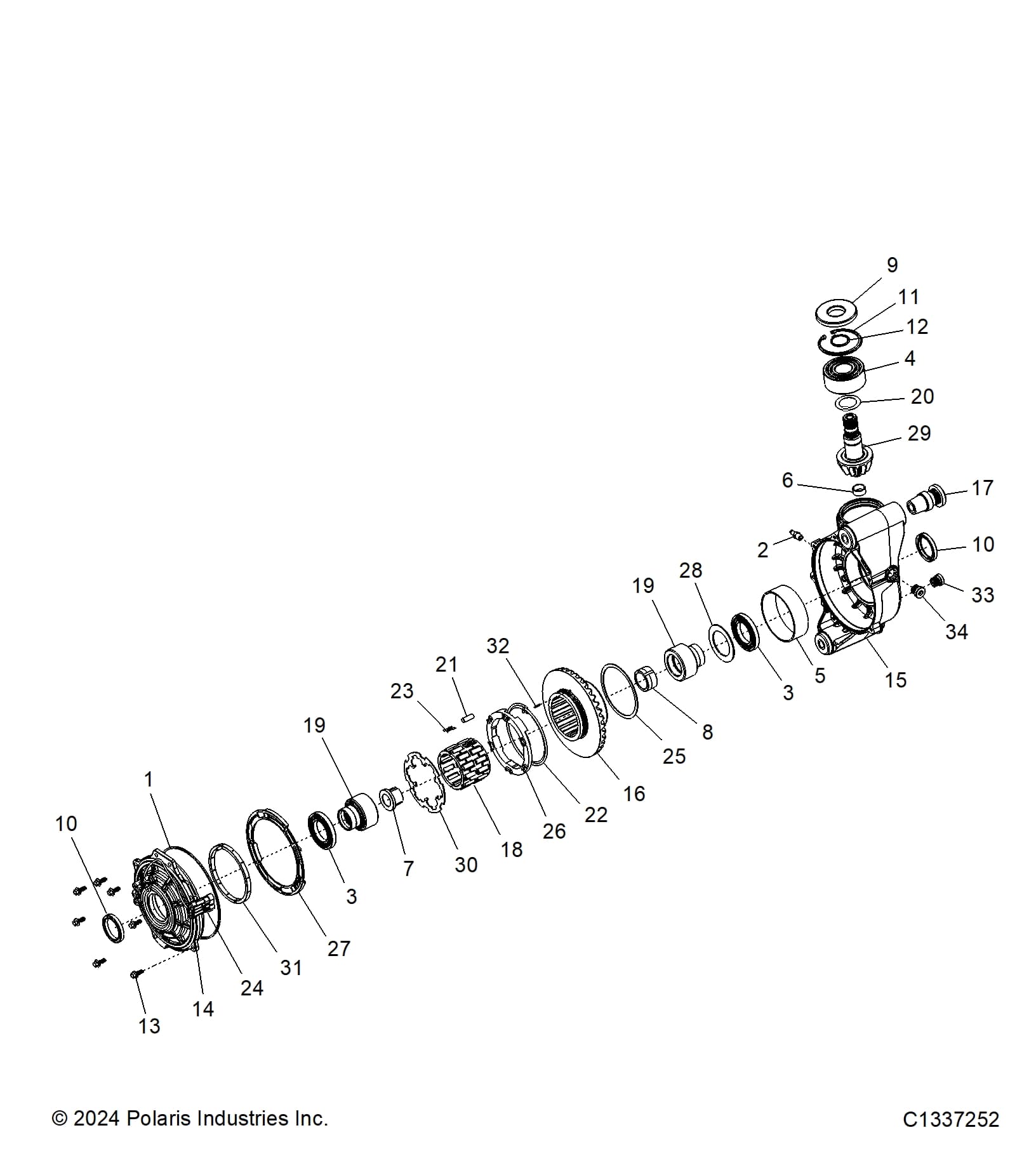

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 227155
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 42 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 3235712 | KIT-TORSION,SPRING AND RETAINER [INCLUDES 22 & 26] | 1 | Price TBD | Out of stock | |
| - | 3236051 | BEARINGS [INCLUDES 3 & 4] | 1 | Price TBD | Out of stock | |
| - | 3236540 | ASM-ROLL CAGE [INCLUDES 18 & 23] | 1 | Price TBD | Out of stock | |
| - | 3236730 | GEAR HOUSING & PINION GEAR ASSSY [INCLUDES 4,11,12,16,20,29,32] | 1 | Price TBD | Out of stock | |
| - | 3239362 | ASM - OUTPUT HUB (ALUM) LG ROLL [INCLUDES 3,7,8,19,28] | 1 | Price TBD | Out of stock | |
| - | 3239525 | ASM-COVER OUTPUT [INCLUDES 1,10,14,24,27,31] | 1 | Price TBD | Out of stock | |
| - | 3239524 | K-SEAL REPAIR [INCLUDES 1,9,10] | 1 | Price TBD | Out of stock | |
| - | 3239523 | ASM-GEARCASE [INCLUDES 2,5,6,10,15,17,33,34] | 1 | Price TBD | Out of stock | |
| - | 1337252 | ASM-GEARCASE,FRONT [INCLUDES ALL] | 1 | $2,099.99 | In stock | |
| 1 | ------- | O-RING | 1 | Price TBD | Out of stock | |
| 2 | ------- | VENT TUBE | 1 | Price TBD | Out of stock | |
| 3 | ------- | BEARING | 2 | Price TBD | Out of stock | |
| 4 | ------- | BEARING, DOUBLE ROW | 1 | Price TBD | Out of stock | |
| 5 | ------- | BUSHING, DU | 1 | Price TBD | Out of stock | |
| 6 | ------- | BUSHING | 1 | Price TBD | Out of stock | |
| 7 | ------- | BUSHING, INNER | 1 | Price TBD | Out of stock | |
| 8 | ------- | BUSHING, OUTER | 1 | Price TBD | Out of stock | |
| 9 | ------- | SEAL, OIL | 1 | Price TBD | Out of stock | |
| 10 | ------- | SEAL, OIL, CUSTOM | 2 | Price TBD | Out of stock | |
| 11 | ------- | RING, RETAINING, INNER | 1 | Price TBD | Out of stock | |
| 12 | ------- | RING, RETAINING | 1 | Price TBD | Out of stock | |
| 13 | 3235483 | COVER-FASTNERS | 7 | Price TBD | Out of stock | |
| 14 | ------- | COVER | 1 | Price TBD | Out of stock | |
| 15 | ------- | GEARCASE | 1 | Price TBD | Out of stock | |
| 16 | ------- | RING GEAR | 1 | Price TBD | Out of stock | |
| 17 | 5417265 | KIT-ISOLATOR | 4 | Price TBD | Out of stock | |
| 18 | ------- | BUSHING | 1 | Price TBD | Out of stock | |
| 19 | ------- | ASM-HUB | 2 | Price TBD | Out of stock | |
| 20 | ------- | SHIM | 1 | Price TBD | Out of stock | |
| 21 | 3235486 | CAGE ROLLERS | 24 | Price TBD | Out of stock | |
| 22 | ------- | TORSION SPRING | 1 | Price TBD | Out of stock | |
| 23 | ------- | SPRING-H CLIP | 24 | Price TBD | Out of stock | |
| 24 | ------- | ASM-CONNECTOR | 1 | Price TBD | Out of stock | |
| 25 | 3234437 | SPACER-RING GEAR | 1 | Price TBD | Out of stock | |
| 26 | ------- | ASM-SPRING RETAINER | 1 | Price TBD | Out of stock | |
| 27 | ------- | SPACER-BACKLASH | 1 | Price TBD | Out of stock | |
| 28 | ------- | SPACER-NYLON | 1 | Price TBD | Out of stock | |
| 29 | ------- | PINION | 1 | Price TBD | Out of stock | |
| 30 | 3236048 | PLATE-4WD ARMATURE | 1 | Price TBD | Out of stock | |
| 31 | ------- | COIL | 1 | Price TBD | Out of stock | |
| 32 | ------- | WELD STUD | 1 | Price TBD | Out of stock | |
| 33 | 2203739 | KIT-PLUG,FILL | 1 | Price TBD | Out of stock | |
| 34 | 2203738 | KIT-PLUG,DRAIN | 1 | Price TBD | Out of stock |
