Polaris•Schematic assembly

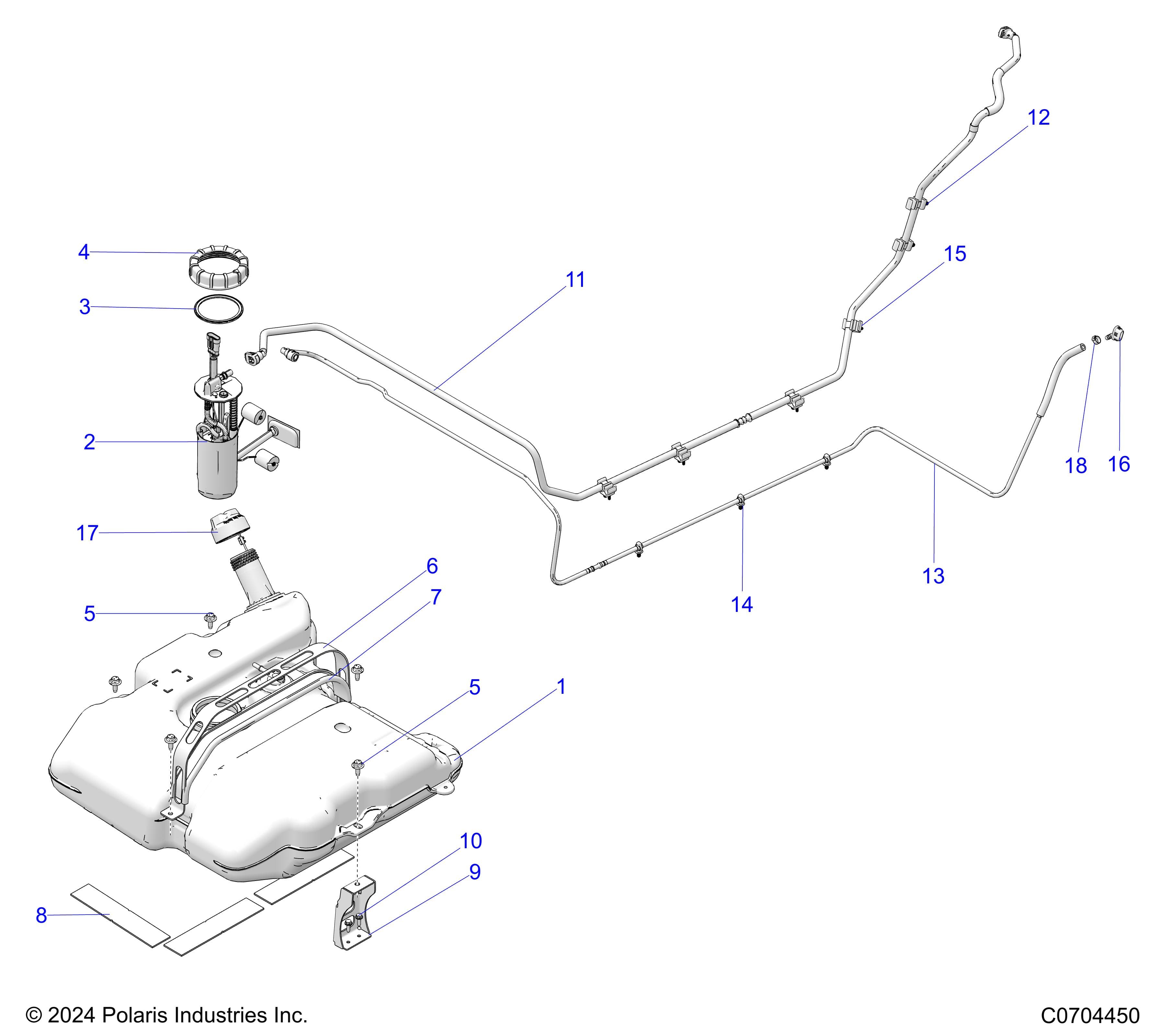

FUEL SYSTEM, FUEL TANK ASM.
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 227123
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 9 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2638099 | ASM-FUEL TANK [INCLUDES 2-4] | 1 | $1,349.99 | In stock | |
| 2 | 2211819 | K-FUEL PUMP [INCLUDES 3 & 4] | 1 | $439.99 | Out of stock Est. Aug 4, 2026 | |
| 3 | 5413451 | GASKET-PFA,RIBBED | 1 | Price TBD | Out of stock | |
| 4 | 5437138 | NUT-MASON JAR | 1 | Price TBD | Out of stock | |
| 5 | 7527908 | SCR-HH-M8X1.25X25 8.8 ZTB SEMS | 5 | $7.99 | In stock | |
| 6 | 5268659-329 | BRKT-STRAP,FUEL TANK,ECOAT | 3 | $34.99 | In stock | |
| 7 | 5522367 | PAD-STRAP,RUBBER | 1 | $15.99 | In stock | |
| 8 | 5814781 | PAD-TANK,MOUNT | 4 | Price TBD | Out of stock | |
| 9 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 2 | Price TBD | Out of stock | |
| 10 | 1026945-329 | WELD-MOUNT,FUEL TANK,BLK [TO 6/15/2025] | 1 | $39.99 | In stock | |
| 10 | 1029863-329 | WELD-MOUNT,FUEL TANK,E-COAT [FROM 6/15/2025] | 1 | $39.99 | In stock | |
| 11 | 2522538 | ASM-FUEL LINE,5P | 1 | $174.99 | In stock | |
| 12 | 7082641 | CLIP-ROUTING | 2 | Price TBD | Out of stock | |
| 13 | 2522270 | ASM-LINE,VENT TO CHASSIS,5P | 1 | $119.99 | In stock | |
| 14 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 3 | Price TBD | Out of stock | |
| 15 | 7082454 | CLIP-DOUBLE | 4 | Price TBD | Out of stock | |
| 16 | 5456372 | FITTING-VENT LINE,45 | 1 | $4.99 | In stock | |
| 17 | 2522316 | CAP-GAS TANK,TETHER,12 | 1 | Price TBD | Out of stock | |
| 18 | 7081185 | CLAMP-HOSE,OETICKER,15.3 STPLS | 1 | $2.99 | In stock |
