Schematic diagram
Polaris•Schematic assembly

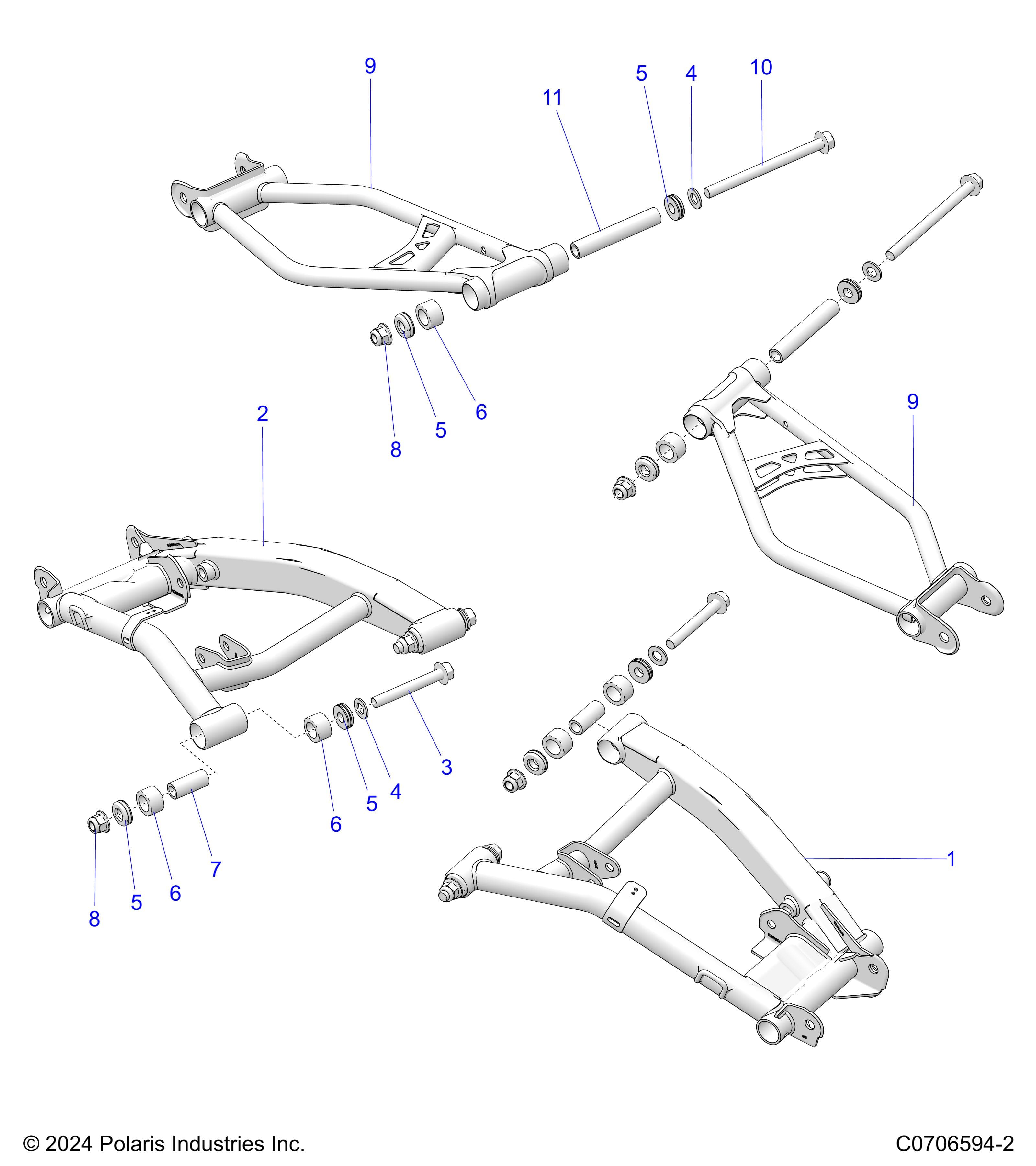

SUSPENSION, REAR CONTROL ARMS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 226997
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 17 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1544385-458 | WELD-CTRL ARM,RR,LWR,LH,64,BLK | 1 | $244.99 | In stock | |
| 1 | 1544466-458 | ASM-LCA,REAR,LH,LOADED,BLK [INCLUDES CTRL ARM & 5-7] | 1 | $299.99 | In stock | |
| 2 | 1544386-458 | WELD-CTRL ARM,RR,LWR,RH,64,BLK | 1 | $244.99 | In stock | |
| 2 | 1544467-458 | ASM-LCA,REAR,RH,LOADED,BLK [INCLUDES CTRL ARM & 5-7] | 1 | $299.99 | In stock | |
| 3 | 7521335-105 | SCR-HXFL-M14X2.0X105 10.9 ZFB | 4 | Price TBD | Out of stock | |
| 4 | 7557237 | WSHR-FLAT-M14X2.5 ZTB | 4 | Price TBD | Out of stock | |
| 5 | 5143011 | CAP-PIVOT SEAL,M14 | 12 | Price TBD | Out of stock | |
| 5 | 1545132 | ASM-PIVOT CAP,SEALED,M14 | 12 | Price TBD | Out of stock | |
| 5 | 5418680 | O-RING,2-215,RED | 12 | Price TBD | Out of stock | |
| 5 | 5143011 | CAP-PIVOT SEAL,M14 | 12 | Price TBD | Out of stock | |
| 5 | 1545132 | ASM-PIVOT CAP,SEALED,M14 | 12 | Price TBD | Out of stock | |
| 5 | 5418680 | O-RING,2-215,RED | 12 | Price TBD | Out of stock | |
| 5 | 5143011 | CAP-PIVOT SEAL,M14 | 12 | Price TBD | Out of stock | |
| 5 | 1545132 | ASM-PIVOT CAP,SEALED,M14 | 12 | Price TBD | Out of stock | |
| 5 | 5418680 | O-RING,2-215,RED | 12 | Price TBD | Out of stock | |
| 5 | 5143011 | CAP-PIVOT SEAL,M14 | 12 | Price TBD | Out of stock | |
| 5 | 1545132 | ASM-PIVOT CAP,SEALED,M14 | 12 | Price TBD | Out of stock | |
| 5 | 5418680 | O-RING,2-215,RED | 12 | Price TBD | Out of stock | |
| 6 | 5456377 | BUSHING-STANDARD,SUSP,M14 | 12 | Price TBD | Out of stock | |
| 7 | 5143010 | SHAFT-PIVOT,SHORT,M14 | 4 | Price TBD | Out of stock | |
| 8 | 7548031 | NUT-HXFL-M14X2.0 8 ZTB NYL | 4 | Price TBD | Out of stock | |
| 9 | 1544383-458 | WELD-CTRL ARM,RR,UPR,BLK | 2 | $139.99 | In stock | |
| 9 | 1544465-458 | ASM-UCA,REAR,LOADED,BLK [INCLUDES CTRL ARM, 5,6,11] | 2 | $194.99 | In stock | |
| 9 | 1544383-458 | WELD-CTRL ARM,RR,UPR,BLK | 2 | $139.99 | In stock | |
| 9 | 1544465-458 | ASM-UCA,REAR,LOADED,BLK [INCLUDES CTRL ARM, 5,6,11] | 2 | $194.99 | In stock | |
| 10 | 7521335-180 | SCR-HXFL-M14X2.0X180 10.9 ZFB | 2 | $11.99 | In stock | |
| 11 | 5143468 | SHAFT-PIVOT,14MM,128MM | 2 | $49.99 | In stock |
