Schematic diagram
Polaris•Schematic assembly

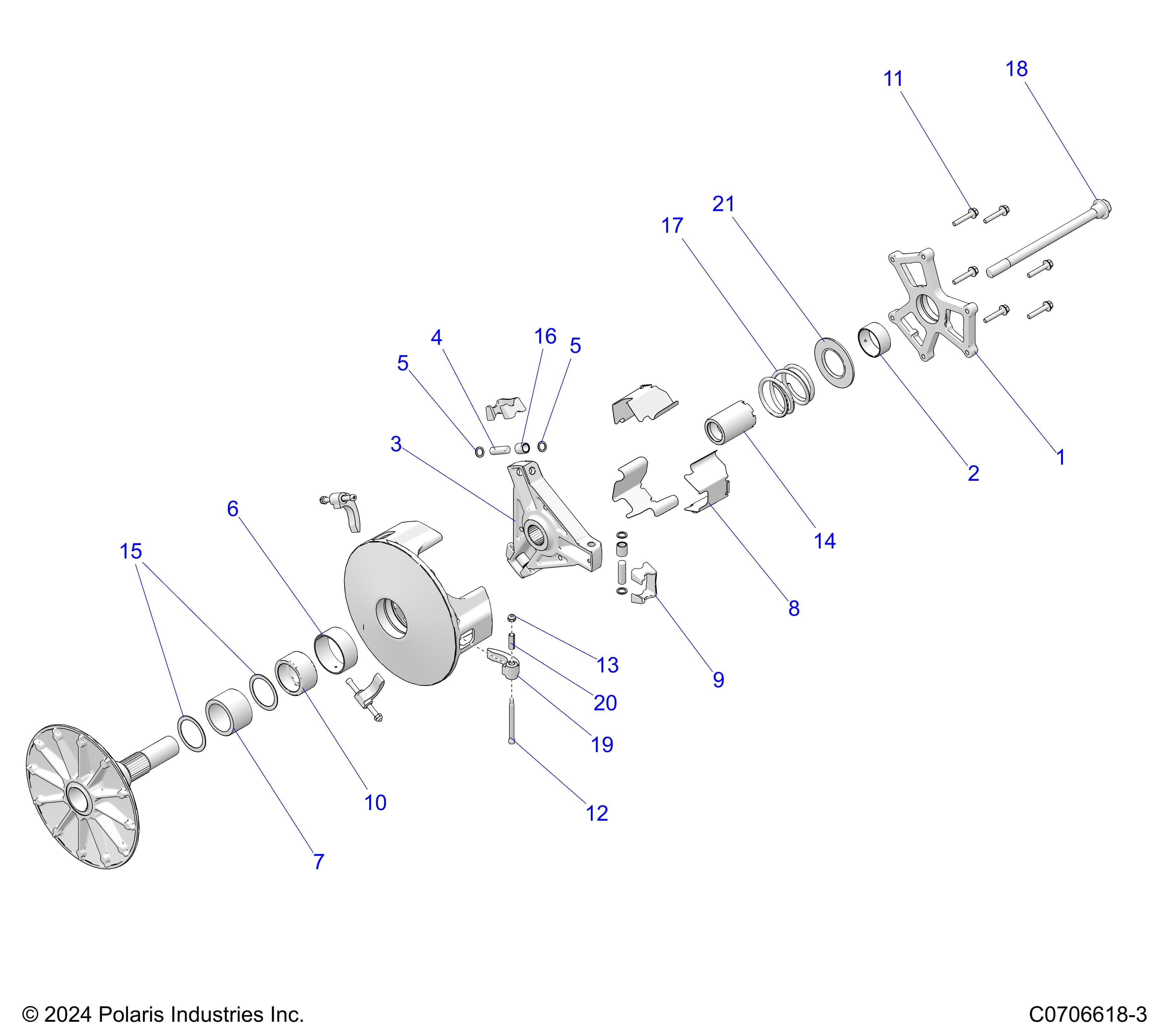

DRIVE TRAIN, PRIMARY CLUTCH
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 226412
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 22 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1327415 | ASM-DRIVE,CLUTCH,BASIC [INCLUDES 1-16 & BOTH SHEAVES] | 1 | Price TBD | Out of stock | |
| 1 | 1323760 | ASM-COVER,DRIVE,HD [INCLUDES 2] | 1 | Price TBD | Out of stock | |
| 2 | 3514892 | BUSHING-COVER,HD | 1 | Price TBD | Out of stock | |
| 3 | 1327402 | ASM-SPIDER,HD,FORGED [INCLUDES 4,5, & 16] | 1 | Price TBD | Out of stock | |
| 4 | 5139559 | PIN-ROLLER,SPIDER,HD | 3 | Price TBD | Out of stock | |
| 5 | 7556938 | WASHER-THRUST | 6 | Price TBD | Out of stock | |
| 6 | 3514891 | BEARING-MOV,HD | 1 | Price TBD | Out of stock | |
| 7 | 3514890 | BEARING-NEEDLE | 1 | Price TBD | Out of stock | |
| 8 | 5274414 | PLATE-SLIDER,DRIVE,HD | 3 | Price TBD | Out of stock | |
| 9 | 5465417 | SLIDER-DRIVE,HD | 3 | Price TBD | Out of stock | |
| 10 | 5633565 | SPACER-CLUTCH,HD | 1 | Price TBD | Out of stock | |
| 11 | 7518612 | BOLT-M6X1.0X35,HXFLG/SH-OLV D | 6 | Price TBD | Out of stock | |
| 12 | 7520103 | BOLT-SHIFT WEIGHT | 3 | Price TBD | Out of stock | |
| 13 | 7541906 | NUT-10-24-FLEX LOC-Z | 3 | Price TBD | Out of stock | |
| 14 | 7547744 | NUT-SPIDER,HD | 1 | Price TBD | Out of stock | |
| 15 | 7556893 | WASHER-CLUTCH | 2 | Price TBD | Out of stock | |
| 16 | 1327401 | ASM-ROLLER W/BUSHING | 3 | Price TBD | Out of stock | |
| 17 | 7045066 | SPRING-CLUTCH,57-223 | 1 | Price TBD | Out of stock | |
| 18 | 7520531 | SCR-HXFL-M14X1.5X215 8.8 SPC | 1 | Price TBD | Out of stock | |
| 19 | 1327481 | ASM-WEIGHT,SHIFT, 44-81 [INCLUDES 20] | 3 | $39.99 | In stock | |
| 19 | 5145262 | WEIGHT-SHIFT, 44-81 | 3 | Price TBD | Out of stock | |
| 20 | 5453843 | BUSHING-WEIGHT,1/4X7/8,DU | 3 | Price TBD | Out of stock | |
| 21 | 5453069 | SPACER-CLUTCH,LIMITER | 1 | Price TBD | Out of stock |
