Schematic diagram
Polaris•Schematic assembly

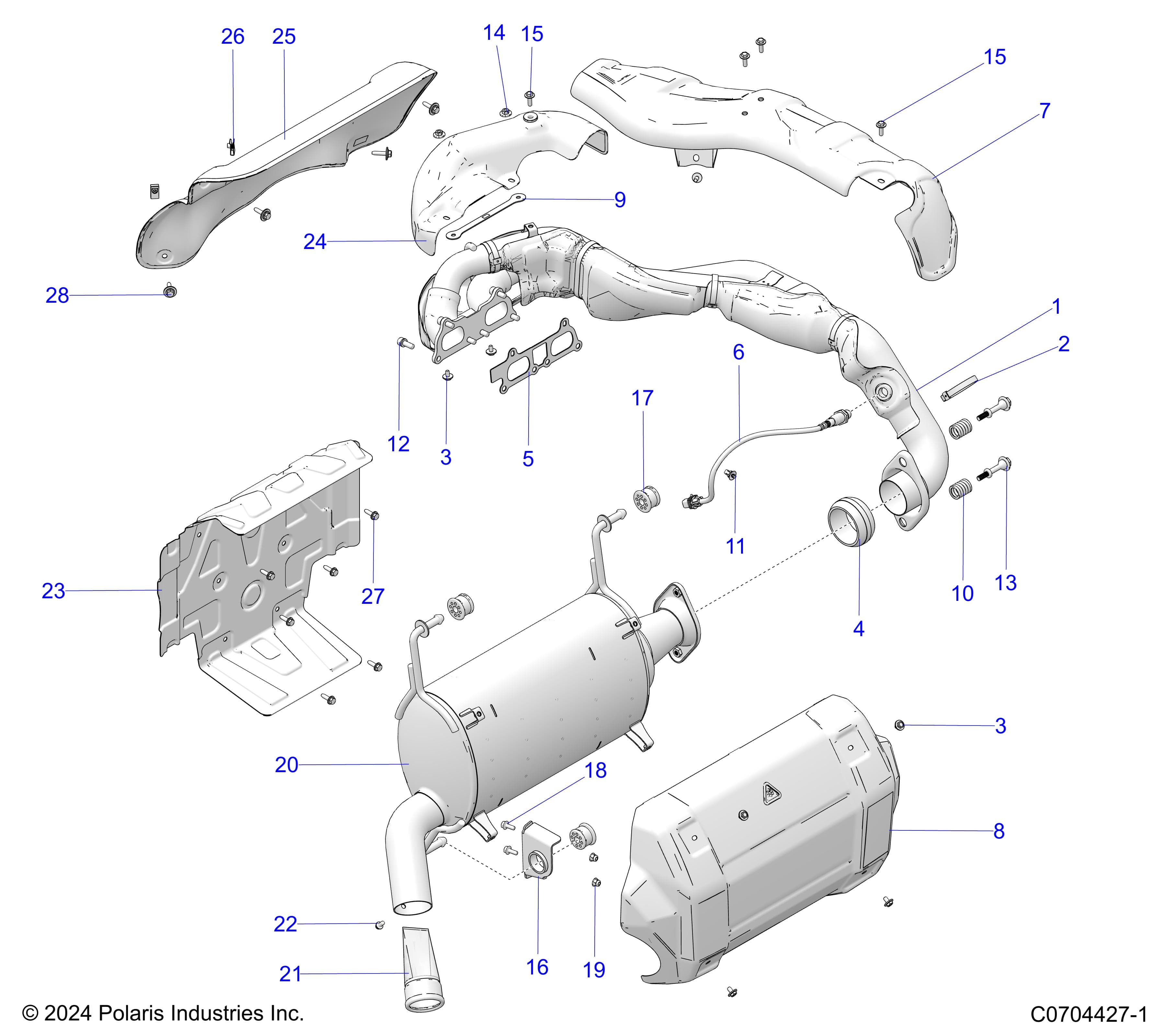

ENGINE, EXHAUST SYSTEM
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 POLARIS XPEDITION ADV 5 NORTHSTAR Assembly ID: 225450
Vehicle Compatibility
- 2026 Polaris POLARIS XPEDITION ADV 5 NORTHSTAR
Checkout Note
Please note that 20 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1263854 | ASM-HEADPIPE [INCLUDES 2 & QTY 2 OF 3] | 1 | $1,099.99 | In stock | |
| 2 | 7081579 | CLAMP, HEAT SHIELD,EXHAUST | 5 | Price TBD | Out of stock | |
| 3 | 7520291 | SCR-HHSEMS-M6X1.0X10 A286,LOCK | 6 | Price TBD | Out of stock | |
| 4 | 3610236 | GASKET, DOUBLE, SPHERICAL | 1 | $59.99 | Out of stock Est. Aug 28, 2026 | |
| 5 | 3610357 | GASKET-EXHAUST SEAL | 1 | Price TBD | Out of stock | |
| 6 | 4011853 | SENSOR-LAMBDA,LSF 4.2 | 1 | Price TBD | Out of stock | |
| 7 | 5268438-458 | SHIELD-HEAT,HEADPIPE,BLK | 1 | $134.99 | In stock | |
| 8 | 5268439-458 | SHIELD-SILENCER,OUTER,BLK | 1 | $249.99 | In stock | |
| 9 | 5274332 | BRKT-WASHER,EXHAUST,STRAP | 1 | Price TBD | Out of stock | |
| 10 | 7044274 | SPRING, SPHERICAL, EXHAUST | 2 | Price TBD | Out of stock | |
| 11 | 7083021 | CBL TIE-FIRTREE,DIA6.35MM,200C | 1 | Price TBD | Out of stock | |
| 12 | 7518984 | SCR-HXFL-M5X0.8X12 4.8 ZPC NYL | 6 | Price TBD | Out of stock | |
| 13 | 7520079 | STUD-SPHERICAL,EXHAUST | 2 | Price TBD | Out of stock | |
| 14 | 7548005 | NUT-HEX M6X1.0 8 ZPC SPC | 2 | Price TBD | Out of stock | |
| 15 | 7520995 | SCR-HHSEMS-M6X1.0X19 A286,LOCK | 2 | Price TBD | Out of stock | |
| 16 | 1263657-458 | WELD-EXHAUST MOUNT,LOWER,BLK | 1 | $79.99 | In stock | |
| 17 | 5417758 | ISOLATOR-EXHAUST,HANGER | 3 | Price TBD | Out of stock | |
| 18 | 7521331-16 | SCR-HXFL-M6X1.0X16 10.9 ZFB | 2 | Price TBD | Out of stock | |
| 19 | 7548027 | NUT-HXFL-M6X1.0 8 ZTB NYL | 2 | Price TBD | Out of stock | |
| 20 | 1263796 | ASM-SILENCER [INCLUDES 21 & 22] | 1 | $1,199.99 | In stock | |
| 21 | 1263422 | WELD-SPARK ARRESTOR | 1 | $69.99 | In stock | |
| 22 | 7517257 | SCREW-HXFL-M6X1.0X12 10.9 ZPC | 1 | Price TBD | Out of stock | |
| 23 | 5268440 | SHIELD-SILENCER,CHASSIS | 1 | $104.99 | In stock | |
| 24 | 5272665 | SHIELD-HEAT,HEADPIPE,FRONT UPR | 1 | Price TBD | Out of stock | |
| 25 | 5814899 | SHIELD-FOIL | 1 | $94.99 | In stock | |
| 26 | 7081305 | CLIP-U SPEED NUT | 2 | Price TBD | Out of stock | |
| 27 | 7518529 | SCR-M6X1.0X20,HXHD,FLG,TDFM,BK | 6 | Price TBD | Out of stock | |
| 28 | 7521064 | SCR-HXFL-M6X1.0X25 8.8 ZPB SEM | 4 | Price TBD | Out of stock |
