Schematic diagram
Polaris•Schematic assembly

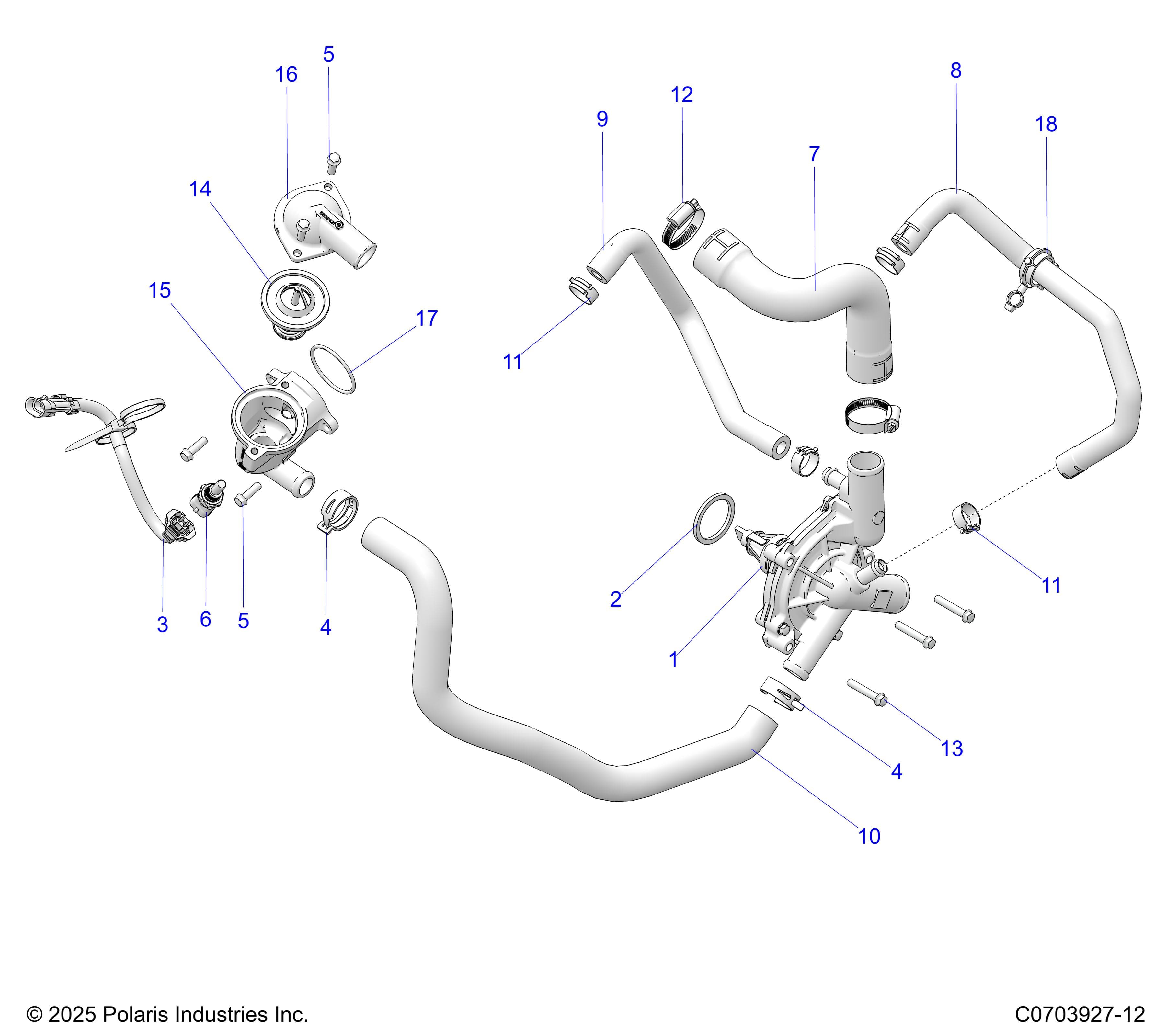

ENGINE, WATERPUMP AND BYPASS
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 225221
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 17 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1205014 | ASM, WATERPUMP [FOR INTERNAL PARTS SEE ENGINE, WATERPUMP ASSEMBLY] | 1 | Price TBD | Out of stock | |
| 2 | 5814207 | FILTER-WP | 1 | Price TBD | Out of stock | |
| 3 | 4014319 | WIRE, THERMISTER LEAD | 1 | Price TBD | Out of stock | |
| 4 | 7081970 | CLAMP, SPRINGBAND | 2 | Price TBD | Out of stock | |
| 5 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 4 | Price TBD | Out of stock | |
| 6 | 4010644 | SENSOR-THERMISTER | 1 | Price TBD | Out of stock | |
| 7 | 5416305 | HOSE-WATERPUMP,OUT | 1 | Price TBD | Out of stock | |
| 8 | 5416752 | HOSE-OIL COOLER OUT | 1 | Price TBD | Out of stock | |
| 9 | 5416307 | HOSE, OIL COOLER IN | 1 | Price TBD | Out of stock | |
| 10 | 5416629 | HOSE, BYPASS | 1 | Price TBD | Out of stock | |
| 11 | 7081026 | CLAMP-HOSE,SPRING .81 | 4 | Price TBD | Out of stock | |
| 12 | 7081192 | CLAMP-HOSE(WORM DR)25-40MM | 2 | Price TBD | Out of stock | |
| 13 | 7519280 | SCR-HXFL-M6X1.0X35, W/PATCHLOK | 3 | Price TBD | Out of stock | |
| 14 | 7052600 | THERMOSTAT, DOUBLE, ACTING, 1MM | 1 | Price TBD | Out of stock | |
| 15 | 5139853 | HOUSING-THERMOSTAT,MACH | 1 | $24.99 | In stock | |
| 16 | 5632421 | COVER, THERMOSTAT, CAST | 1 | Price TBD | Out of stock | |
| 17 | 5414591 | O-RING | 1 | Price TBD | Out of stock | |
| 18 | 7082408 | CLIP-OMEGA,CABLE/19-24.5MM DIA | 1 | Price TBD | Out of stock |
