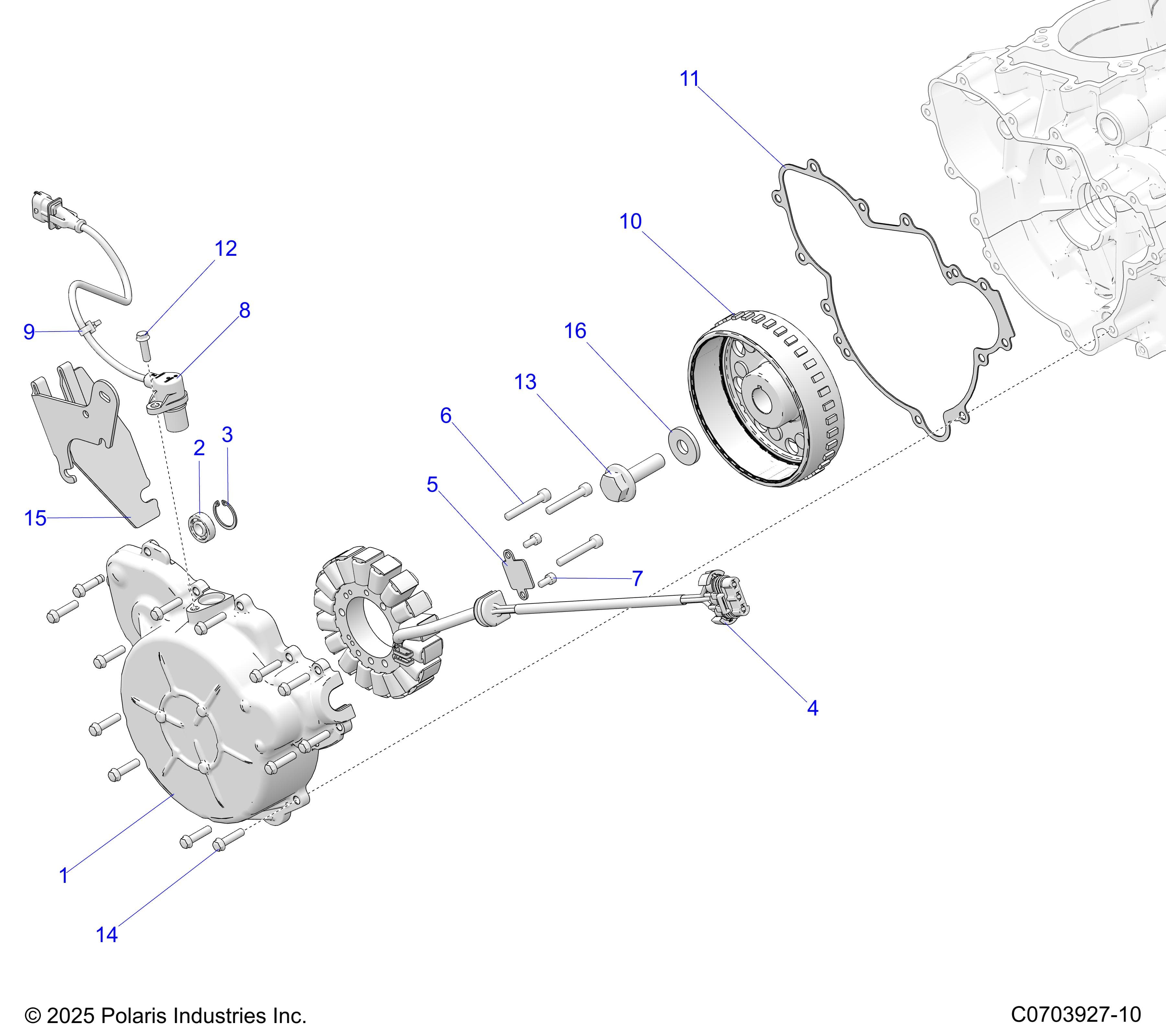

Schematic diagram
Polaris•Schematic assembly
ENGINE, STATOR AND FLYWHEEL
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 225218
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 16 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 1206299 | ASM-IGN COVER,STARTER BRG [INCLUDES 2 & 3] | 1 | Price TBD | Out of stock | |
| 1 | 5143721 | COVER-STATOR,MACHINED | 1 | Price TBD | Out of stock | |
| 2 | 3514717 | BEARING-BALL,9X24X7 | 1 | Price TBD | Out of stock | |
| 3 | 7710654 | RING-SNAP,DIN472,24X1.2MM | 1 | Price TBD | Out of stock | |
| 4 | 4014839 | STATOR, 660W | 1 | $649.99 | In stock | |
| 5 | 5255473 | BRACKET, RETAINER, WIRE | 1 | Price TBD | Out of stock | |
| 6 | 7510005 | SCR-M6X1.0X40,HX/SOC/CP-Y/D | 3 | Price TBD | Out of stock | |
| 7 | 7517847 | SCREW-M5X0.8X10 SOC/CP-D | 2 | Price TBD | Out of stock | |
| 8 | 2411719 | SENSOR, CRANK POSITION | 1 | Price TBD | Out of stock | |
| 9 | 7081477 | CLIP-WIRE, 6.35MM | 1 | Price TBD | Out of stock | |
| 10 | 4014688 | FLYWHEEL | 1 | Price TBD | Out of stock | |
| 11 | 5814160 | GASKET, COVER, IGNITION | 1 | Price TBD | Out of stock | |
| 12 | 7518576 | SCREW-HXFL-M6X1.0X20 8.8 ZY3 | 1 | Price TBD | Out of stock | |
| 13 | 7520178 | SCREW-HXFL-M12X1.25X43 12.9 | 1 | Price TBD | Out of stock | |
| 14 | 7519297 | SCREW-HXFLG,M6X1.0X25,10.9 | 13 | Price TBD | Out of stock | |
| 15 | 5259742 | BRACKET, BYPASS, SHIFTER | 1 | Price TBD | Out of stock | |
| 16 | 7556885 | WSHR-32X12X4,HARD | 1 | Price TBD | Out of stock |
