Schematic diagram
Polaris•Schematic assembly
ELECTRICAL, HARNESS, CHASSIS
Product Description

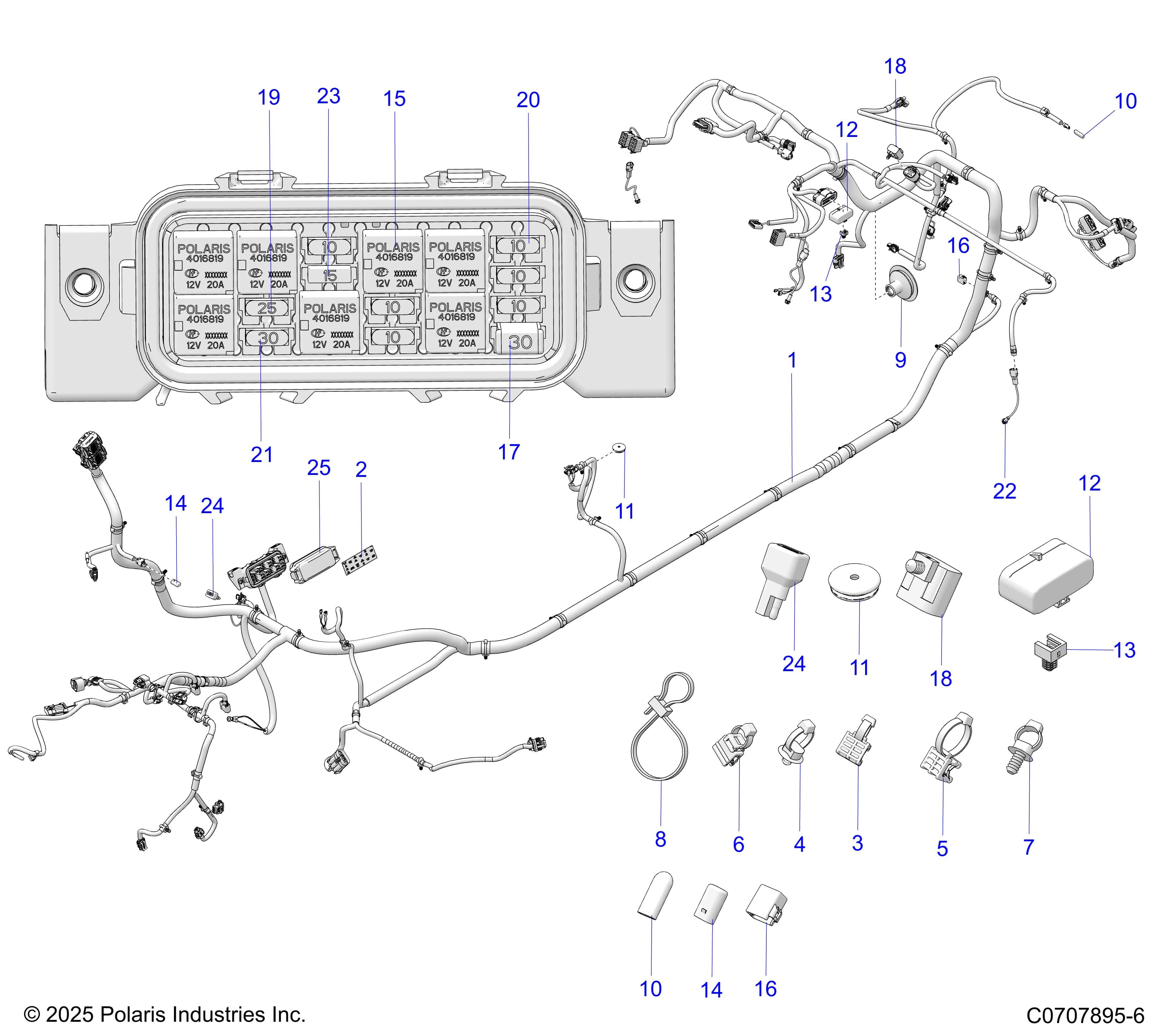

Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP4 1000 PREMIUM Assembly ID: 224745
Vehicle Compatibility
- 2026 Polaris GENERAL XP4 1000 PREMIUM
Checkout Note
Please note that 20 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 2417739 | HARNESS-CHASSIS,CREW [INCLUDES ALL] | 1 | $1,649.99 | In stock | |
| 2 | 7190833 | LABEL, FUSE BOX | 1 | Price TBD | Out of stock | |
| 3 | 7082404 | CLIP-EDGE, 3-6MM THICKNESS | 2 | Price TBD | Out of stock | |
| 4 | 7082003 | CABLE-TIE,DIA2.5-34MM,FIR-TREE | 1 | Price TBD | Out of stock | |
| 5 | 7081876 | CLIP, EDGE, SIDE, W/STRAP | 1 | Price TBD | Out of stock | |
| 6 | 7081808 | CLIP-EDGE,1-3MM,6-45MM,SERT. | 38 | Price TBD | Out of stock | |
| 7 | 7081496 | CLIP FIR-TREE,DIA6-33MM | 2 | Price TBD | Out of stock | |
| 8 | 7081033 | CABLE-TIE,7-46MM,DUAL-LOOP | 1 | Price TBD | Out of stock | |
| 9 | 5813954 | GROMMET - 65 MM, BLK | 2 | Price TBD | Out of stock | |
| 10 | 5438230 | CAP - VINYL, 125X375, BLACK | 1 | Price TBD | Out of stock | |
| 11 | 5415308 | GROMMET - USB, 3 MM, 22 MM DIA | 1 | $4.99 | In stock | |
| 12 | 4018655 | CAP-EVAP CONNECTOR | 1 | Price TBD | Out of stock | |
| 13 | 4018311 | CLIP-CONNECTOR,GREY | 1 | $3.99 | In stock | |
| 14 | 4018066 | CAP EVAP CONNECTOR | 7 | Price TBD | Out of stock | |
| 15 | 4016819 | RELAY-SPST,12V,20A,EPXY,HFA | 1 | Price TBD | Out of stock | |
| 16 | 4014890 | CONNECTOR-CAP, WINCH SWITCH | 1 | Price TBD | Out of stock | |
| 17 | 4082848-30 | BREAKER-CIRCUIT,30A,MINI | 1 | $15.99 | In stock | |
| 18 | 4012170 | COVER-DIAGNOSTIC,W/CLIP | 1 | Price TBD | Out of stock | |
| 19 | 4011653 | FUSE-25A,MINI BLADE | 6 | Price TBD | Out of stock | |
| 20 | 2434016 | FUSE-IGNITION,10 AMP | 1 | Price TBD | Out of stock | |
| 21 | 2434015 | FUSE-MAIN,30 AMP | 3 | Price TBD | Out of stock | |
| 22 | 2416797 | LED-PANEL MNT,12V,BLUE | 2 | $74.99 | In stock | |
| 23 | 2410280 | FUSE-MINI BLADE,15 AMP | 1 | Price TBD | Out of stock | |
| 24 | 2410000 | DIODE - 6 AMP, 1/4, 3/16 TERM | 1 | Price TBD | Out of stock | |
| 25 | 4015011 | COVER- FUSE BOX, 48 WAY | 1 | Price TBD | Out of stock |
