Polaris•Schematic assembly

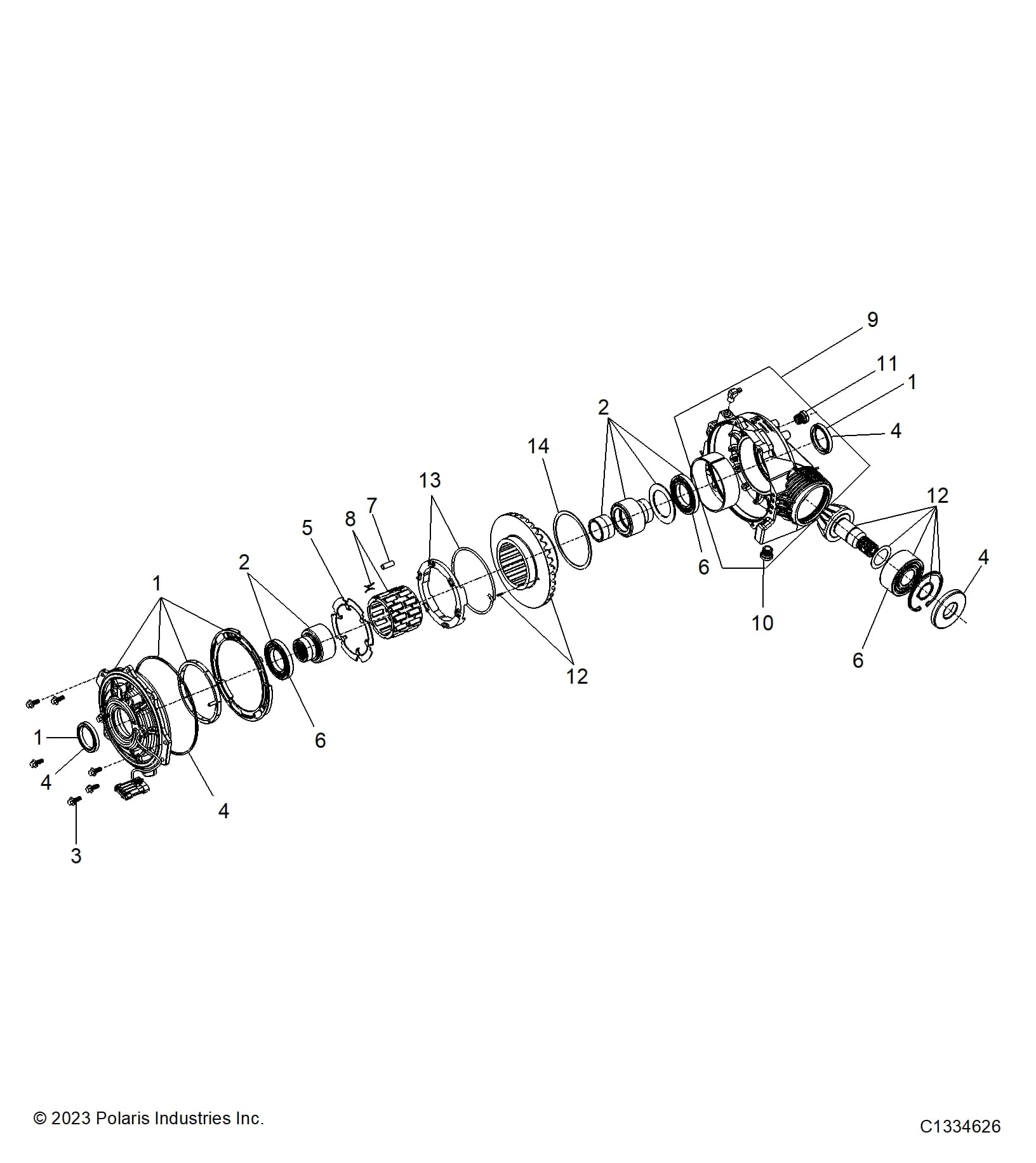

DRIVE TRAIN, FRONT GEARCASE
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL XP 1000 PREMIUM Assembly ID: 221062
Vehicle Compatibility
- 2026 Polaris GENERAL XP 1000 PREMIUM
Checkout Note
Please note that 15 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| - | 1334626 | ASM-GEARCASE,FRONT,28T [INCLUDES ALL] [TO 5/7/2026] | 0 | $2,099.99 | In stock | |
| - | 1337482 | ASM-GEARCASE,FRONT,28T [INCLUDES ALL] [FROM 5/7/2026] | 1 | $2,004.99 | Out of stock Est. Oct 18, 2026 | |
| 1 | 3236717 | ASM-COVER OUTPUT | 1 | Price TBD | Out of stock | |
| 2 | 3236650 | ASM-OUTPUT HUB | 1 | $579.99 | In stock | |
| 3 | 3235483 | COVER-FASTNERS [INCLUDES 7 FASTENERS] | 1 | Price TBD | Out of stock | |
| 4 | 3236719 | K-SEAL REPAIR | 1 | Price TBD | Out of stock | |
| 5 | 3236048 | PLATE-4WD ARMATURE | 1 | Price TBD | Out of stock | |
| 6 | 3236214 | BEARING, PINION | 1 | Price TBD | Out of stock | |
| 7 | 3235486 | CAGE ROLLERS | 24 | Price TBD | Out of stock | |
| 8 | 3236540 | ASM-ROLL CAGE [INCLUDES ROLL CAGE AND 24 H-CLIPS] [1334626] | 1 | Price TBD | Out of stock | |
| 8 | 3239819 | ASM-ROLL CAGE [INCLUDES ROLL CAGE AND 24 H-CLIPS] [1337482] | 1 | Price TBD | Out of stock | |
| 9 | 3236652 | ASM-GEARCASE | 1 | Price TBD | Out of stock | |
| 10 | 2203738 | KIT-PLUG,DRAIN | 1 | Price TBD | Out of stock | |
| 11 | 2203739 | KIT-PLUG,FILL | 1 | Price TBD | Out of stock | |
| 12 | 3236749 | ASM-GEAR HOUSING & PINION | 1 | Price TBD | Out of stock | |
| 13 | 3235490 | TORSION SPRING & RETAINER | 1 | Price TBD | Out of stock | |
| 14 | 3234437 | SPACER-RING GEAR | 1 | Price TBD | Out of stock |
