Schematic diagram
Polaris•Schematic assembly

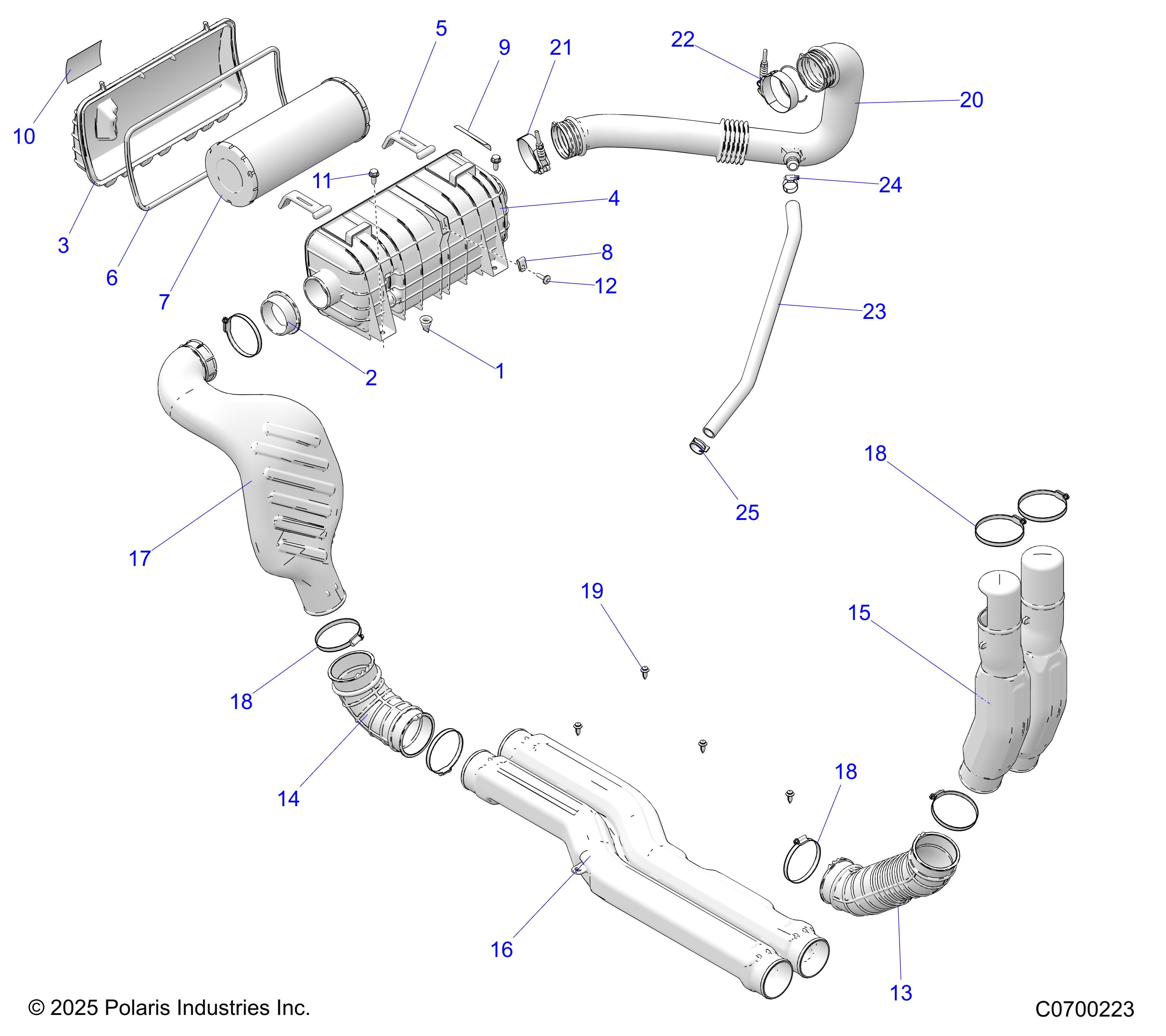

ENGINE, AIR INTAKE SYSTEM
Product Description
Schematic assembly from the Polaris parts catalog. Vehicle: 2026 GENERAL 1000 PREMIUM Assembly ID: 220917
Vehicle Compatibility
- 2026 Polaris GENERAL 1000 PREMIUM
Checkout Note
Please note that 18 parts are out of stock for this assembly and won't be added. You can also add individual parts to your cart using the table below.
Parts in this assembly
Quantity defaults to the amount required per assembly.
| # | Part # | Description | Qty | Price | Stock | |
|---|---|---|---|---|---|---|
| 1 | 5414472 | PLUG-DRAIN | 1 | Price TBD | Out of stock | |
| 2 | 5415155 | SEAL, INTAKE, AIRBOX | 1 | Price TBD | Out of stock | |
| 3 | 5451097 | COVER, AIRBOX | 1 | Price TBD | Out of stock | |
| 4 | 5451098 | AIRBOX | 1 | Price TBD | Out of stock | |
| 5 | 5451099 | STRAP, AIRBOX | 2 | Price TBD | Out of stock | |
| 6 | 5815300 | SEAL-AIRBOX | 1 | Price TBD | Out of stock | |
| 7 | 7082115 | FILTER-AIR [STANDARD] | 1 | Price TBD | Out of stock | |
| 7 | 2881063 | K-FILTER-AIR,PERF,RZX [OPTION] | 1 | Price TBD | Out of stock | |
| 8 | 7547674 | NUT-M6-1.0, U-TYPE (2.5-3.8) | 1 | Price TBD | Out of stock | |
| 9 | 7182087 | DECAL, INTAKE DUCT | 1 | Price TBD | Out of stock | |
| 10 | 7182652 | DECAL-CAUT.AIR BOX | 1 | Price TBD | Out of stock | |
| 11 | 7518555 | SCR-TFHFL-M8X1.25X20 CHS ZOD | 2 | Price TBD | Out of stock | |
| 12 | 7519650 | SCR-TXTH-M6X1.0X25 ZFB | 1 | Price TBD | Out of stock | |
| 13 | 5415468 | HOSE-INTAKE,DUCT | 1 | $59.99 | In stock | |
| 14 | 5415469 | HOSE-INTAKE,DUCT | 1 | $39.99 | In stock | |
| 15 | 5452087 | DUCT-INTAKE,FRONT | 1 | $79.99 | In stock | |
| 16 | 5452088 | DUCT-INTAKE,FLOOR | 1 | $79.99 | In stock | |
| 17 | 5452089 | DUCT-INTAKE,AIRBOX IN | 1 | $64.99 | In stock | |
| 18 | 7081279 | CLAMP-BAND,NARROW 70-90MM | 7 | Price TBD | Out of stock | |
| 19 | 7661855 | RIVET-TUFLOK,.315-.325X.787 | 4 | Price TBD | Out of stock | |
| 20 | 1240946 | ASM-INTAKE DUCT [INCLUDES 21-22] | 1 | $209.99 | In stock | |
| 21 | 7081979 | CLAMP, HOSE, T-BOLT, 66.4 DIA | 1 | Price TBD | Out of stock | |
| 22 | 7082128 | CLAMP-HOSE T-BOLT,72 DIA | 1 | $39.99 | In stock | |
| 23 | 5415455 | HOSE-VENT,ENGINE | 1 | $49.99 | In stock | |
| 24 | 7080614 | CLAMP, HOSE WORM GEAR 1.25 | 1 | Price TBD | Out of stock | |
| 25 | 7080841 | SPRINGBAND-CLAMP 27/12,GREEN | 1 | Price TBD | Out of stock |
